MOTOR CONTROLLER MODULE KL2552
Brand: IRT Parts
Product Details
MOTOR CONTROLLER MODULE KL2552

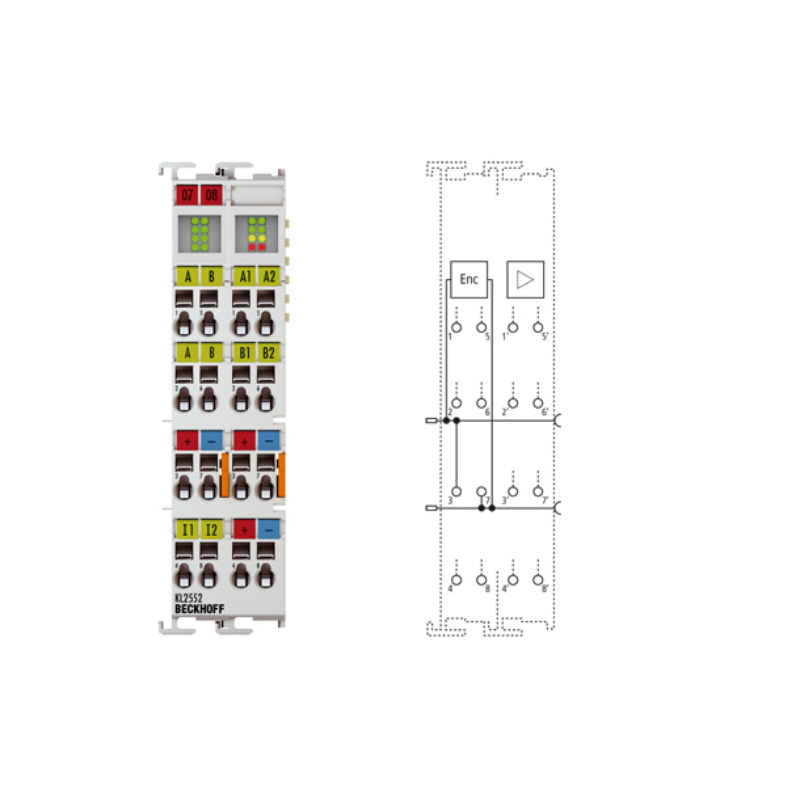

KL2552 | 2-channel DC motor output stage 50 V DC, 5 A
The KL2552 Bus Terminal enables direct operation of two DC motors. It is galvanically isolated from the K-bus.
The speed is specified by the automation device via a 16 bit value.
Connection of an incremental encoder enables a simple servo axis to be realised.
Typical motor parameters can be set in order to avoid critical conditions of the DC motor.
The load can be protected by limiting the maximum values for speed, torque and acceleration.
The output stage is protected against overload and short-circuit.
The Bus Terminal contains two channels that indicate their signal state by means of light emitting diodes.
The LEDs enable quick local diagnosis.
| Technical data | KL2552 | KS2552 |
|---|---|
| Connection technology | direct motor connection |
| Number of outputs | 2 DC motors, encoder input |
| Rated load voltage | 8…50 V DC |
| Load type | DC brush motors, inductive |
| Max. output current | 2 x 5 A (short-circuit-proof, thermal overload-proof for both channels together) |
| PWM clock frequency | 30 kHz with 180° phase shift each |
| Duty factor | 0…100 % (voltage-controlled) |
| Resolution | max. 10 bits current, 16 bits speed |
| Reverse voltage protection | – |
| Electrical isolation | 500 V (K-bus/field potential) |
| Current consumption power contacts | typ. 50 mA |
| Current consumpt. K-bus | typ. 100 mA |
| Encoder signal | 5…24 V DC, 5 mA, single-ended |
| Pulse frequency | max. 400,000 increments/s (with 4-fold evaluation) |
| Bit width in the process image | 48 inputs/outputs: 2 x 16 bit data, 2 x 8 bit control/status |
| Configuration | adaptation and optimisation of the respective motor via the controller and registers or KS2000 configuration software |
| Weight | approx. 100 g |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/see documentation |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals | CE |
