CONTACTOR
191475
LOW STOCK
$861.23 (EX GST)
CONTACTOR

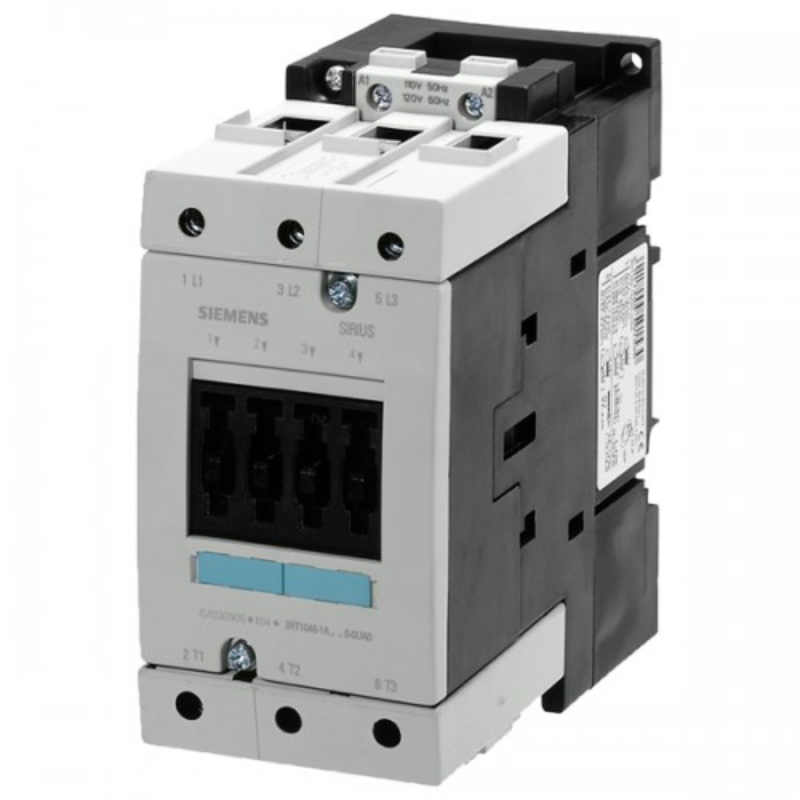

Contactors - 3RT10 Range
The Siemens 3RT10 Range of Contactors will provide excellent reliability and are of extremely good quality.
Various NO/NC models available.
Maximum switching voltage 690V
Mechanical life 3 x 107 operations
| Key Characteristics | |||||
| Size | DC coil | AC coil (Sealed/Inrush) | Height (mm) | Width (mm) | Depth (mm) |
| S00 | 3.2W | 4.6/ 27VA | 57.5 | 45 | 100.5 |
| S0 | 5.4W | 7.8/ 61VA | 80 | 45 | 90 |
| S2 (15kW) | 11.5W | 11/ 90VA | 105 | 55 | 115 |
| S2 (18 & 22kW) | 11.5W | 13.5/ 127VA | 105 | 55 | 130 |
| S3 (30kW) | 15W | 21/ 218VA | 140 | 70 | 140 |
| S3 (37 & 45kW) | 15W | 22/ 270VA | 140 | 70 | 152.5 |
Note
Stock 7515562 - Coils supplied separately
Approvals
UL/CSA
Standards
IEC947, VDE0660, EN60947
Siemens Sirius Range Contactor and Control Relays
Siemens Sirius Range Contactor & Control Relays
Siemens control gear for feeders up to 5.5kW. The complementary nature of the devices allows fast and simple assembly, for example, of motor starters and reversers. A perfect match between contactors, overloads, circuit breakers and accessories for the same power ratings provides a uniform panel appearance and the standard widths with no side-by-side mounting derating allows for space saving.
| Coil Voltage | 230 V ac | |
| Contact Current Rating | 80 A | |
| Number of Poles | 3 | |
| Series | 3RT1 | |
| Normal State Configuration | 3NO | |
| Power Rating | 37 kW | |
| Contact Voltage Rating | 500 V ac | |
| Mounting Style | DIN Rail Mount | |
| Length | 146mm | |
| Width | 70mm | |
| Depth | 139mm | |
| Dimensions | 146 x 70 x 139 mm | |
| Operating Temperature Range | -25 → +60 °C | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -25°C | |
| Terminal Type | Screw | |
| CAD Drawing | 3D CAD Model | |
| Range | SIRIUS |
