PNP90 XT2-JLR WITH RIVET CLAMP

500009KIT
OUT OF STOCK
PNP90 XT2-JLR WITH RIVET CLAMP

add remove Kit Components

This item contains the following components:

add remove Product Features

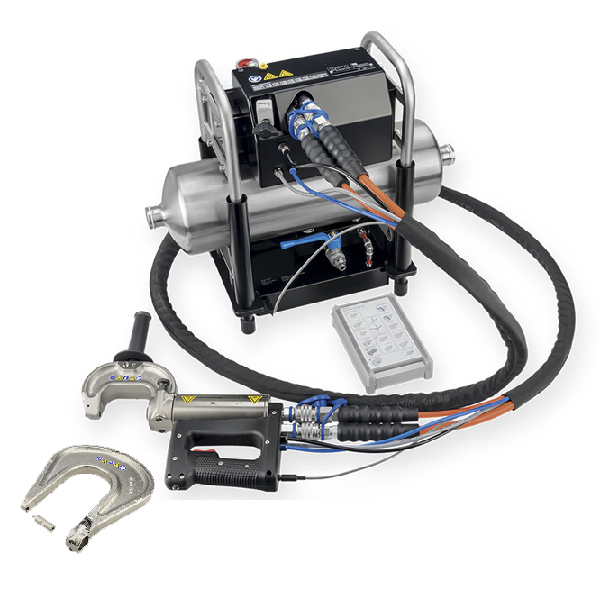

Universal Punch- and Riveting System PNP 90 XT² – JLR Edition

Strongest mobile hydraulic tool for the bodywork repair.

The pneumatic, hydraulic universal stamping and riveting tool PNP 90 XT2 is specifically designed for all common riveting operations for sandwich panels, thin sheet and high-strength sheet. The equipment’s universal technology enables adaptation of various attachments for different applications. The hydraulic pump is a pneumatically-driven pressure intensifier with a ratio of 1:100. This means that a hydraulic secondary pressure of 600 bar is generated by a primary air pressure of 6 bar. When the equipment’s preset final pressure is reached, the pump stops automatically and keeps this pressure constant. The hydraulic pump has a pneumatically controlled pressure relief valve.


The Docking Station DS XT2 supplementary unit is an addition to TKR`s PNP 90 XT2 stamping and riveting tool. It ensures consistent quality for the riveting process. If the operating pressure drops below 6 bar (required  minimum operation pressure), th operator will be informed via optical indicator (red LED) and the pressure accumulator will take over the pressure supply.

BENEFITS

  • 2-Circuit-Hydraulik (Push & Pull)

  • An existing PNP 90 XT2 is upgradable by using the Docking Station DC XT2

  • Easy handling by external pump-system

  • Combination with existing riveting tools possible

  • Infinite adjustment of the working pressure

  • Processing high-strength materials

  • Clear order through colour coding and labelling of the rivet inserts

SCOPE OF DELIVERY

  • Pressure Generator PNP 90 XT2

  • Docking Station DS XT2

  • Hydraulic Actuator HA XT2

  • Handle M8

  • Riveting Tool Kit "JLR XT2"

  • Hose Package "Duo"

  • Riveting Clamp NB45

  • Riveting Clamp NB240

  • Trolley with tray

  • Cover for trolley
