Extra care must be taken to ensure that the rivets that are used are properly seated when installing semi- tubular punch rivets.
Screw the riveting tool needed for the working process into a holder in the rivet clamp as required. Hand-tighten the riveting head using the special spanners provided. Counterhold the nut using a screwdriver if necessary. Screw the corresponding counterpart to the rivet insert into the opposite side of the rivet clamp (plunger rod) with the spacing bushing and bolt, and hand-tighten.
Quickt changing of riveting tools
High endurance
Hight quality - Made in Germany

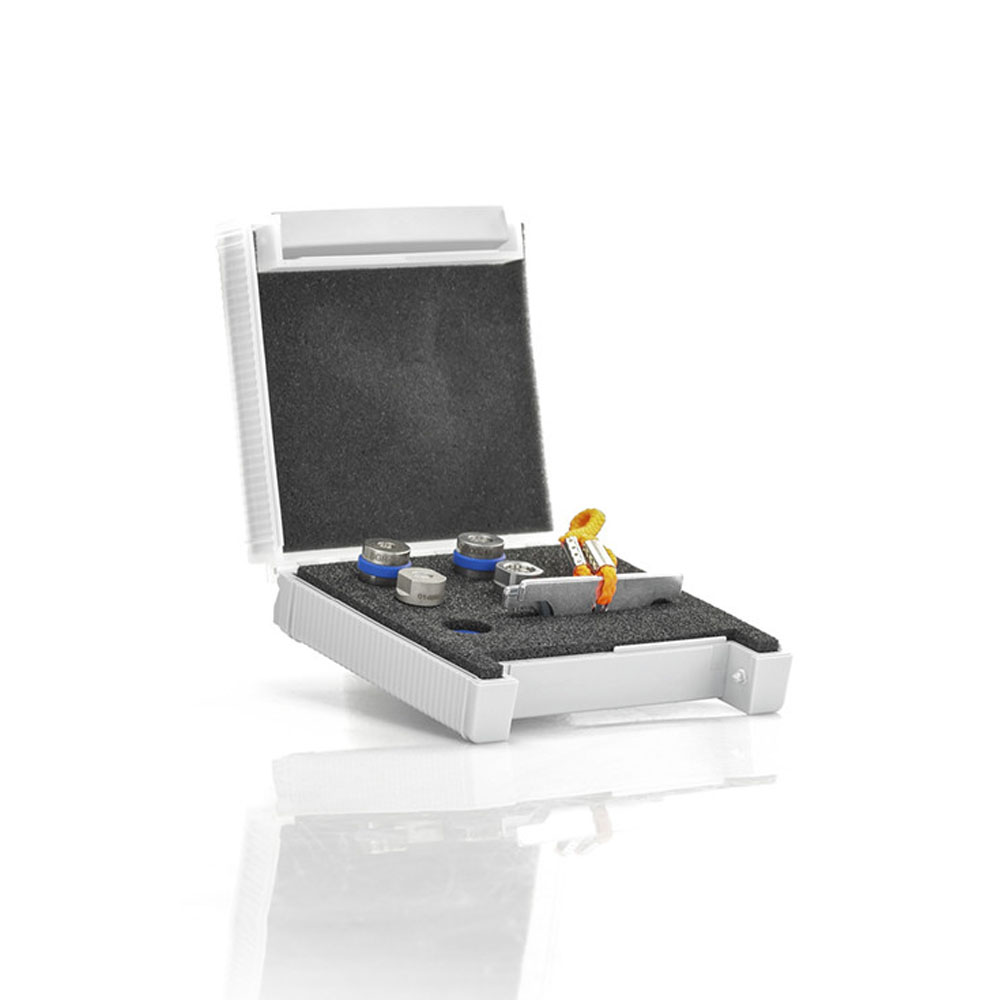

Rivet bolt / die Ø 3 mm
Rivet bolt / die Ø 5 mm
4 Elastomer rings
Spanner
Designed for: | 60 kN |
Thread: | M6 |
Suitable for : | PNP 90 |
Manufacturer: | TKR PowerTools |
Made in : | Germany |
