GESIPA TAURUS 4 RIVET TOOL
571110
LOW STOCK
WS
GESIPA TAURUS 4 RIVET TOOL
TAURUS® 4

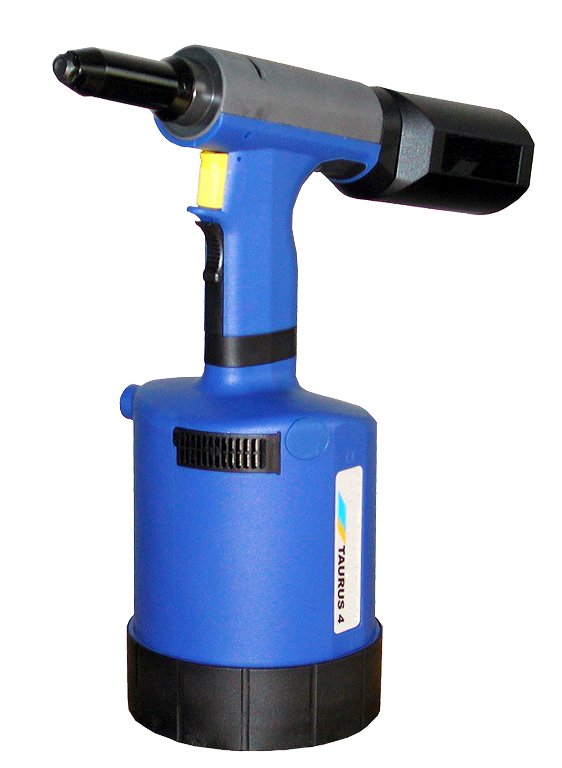

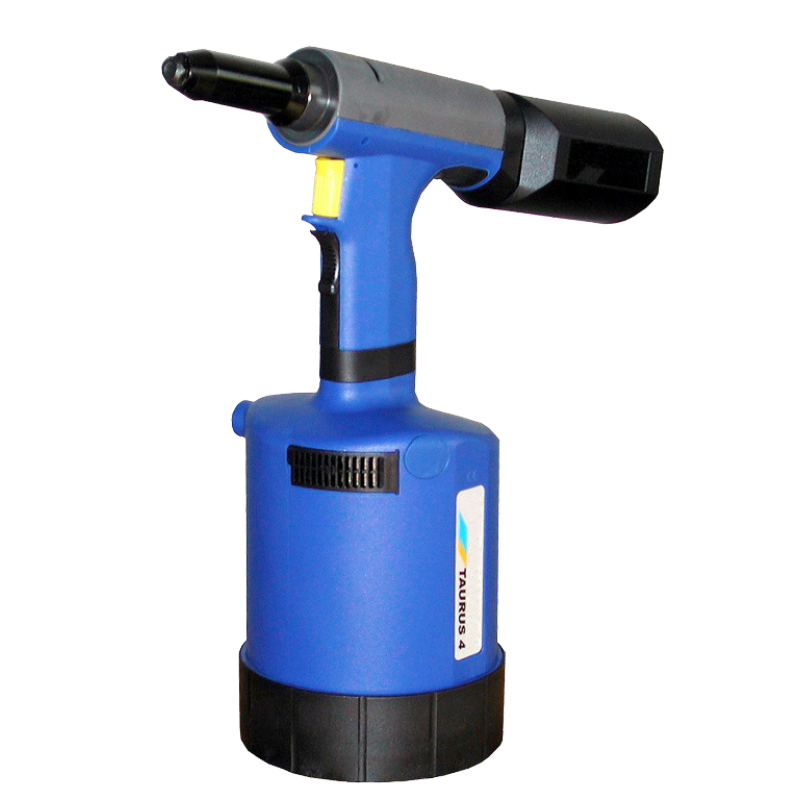

Blind rivet setting tool TAURUS 4
The TAURUS® tool series is equipped with a high-performance, patented grip mechanism and jaw system. The optimum utilisation of the compressed air ensures maximum thriftiness, efficiency and greenness.
| Air consumption | approx. 4,8 ltr. per rivet |
| Air hose connection | 6 mm Ø (1/4") |
| Dimension of packaging | 140 X 200 X 345 mm |
| Operating air pressure | 5 - 7 bar |
| Operating mode | Compressed air |
| Stroke | 19 mm |
| TotalLength | 312 mm |
| Total weight | 2 kg |
| Traction power | 20.000 N at 5 bar |
| Working range | Up to 6,4 mm Ø all materials and up to 8 mm Ø alu (max. mandrel-Ø 4,5 mm) |
