W&S LASER CUTTER LC 04,cpl

W&S LASER CUTTER LC 04,cpl
no-stock
Code: 640000
Brand: WS Products
Product Details
W&S LASER CUTTER LC 04,cpl


Estimate Freight

To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

Postcode

Quantity

DESCRIPTION:

  • For cutting and separating of laser weld seams and laser soldered seams
  • Innovative cutting wheel made out of hard metal with innovative duplex grinding
  • The cutting geometry with the special grinding guarantees clean cutting of the laser seams
  • Limit of cutting depth can be selected; 0.8 mm or 1.0 mm, depending on the mandrel
  • The mandrels are precisely round-cut and tolerated in the µ-area, thus an excellent concentricity for the cutting wheel is guaranteed
  • As the total weight of the Laser Cutter is only 850 g it is very easy to handle
  • Good accessibility also in areas difficult of access
  • Long durability due to high-quality processing and materials

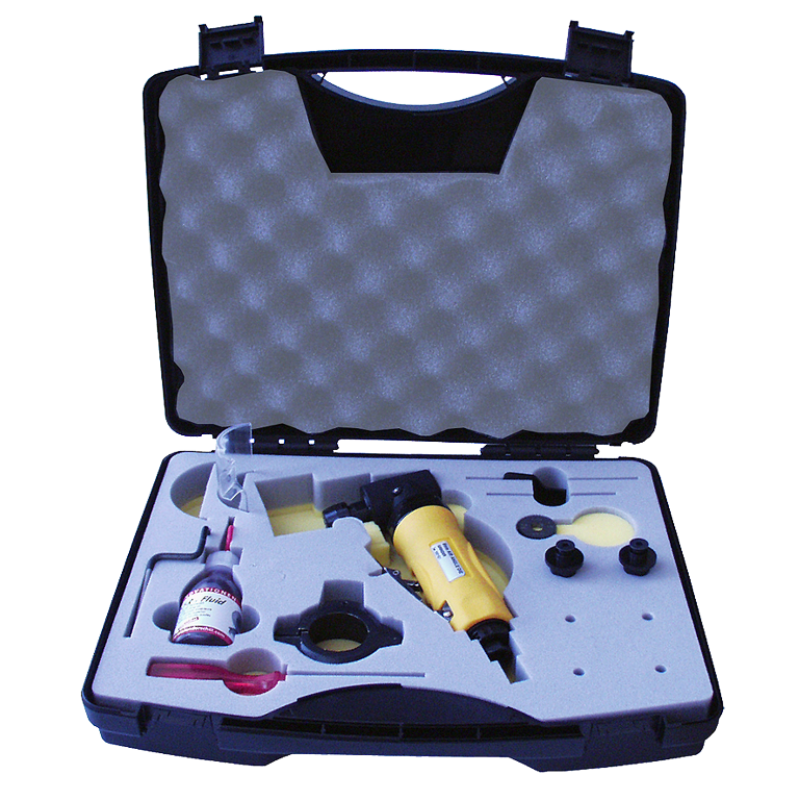

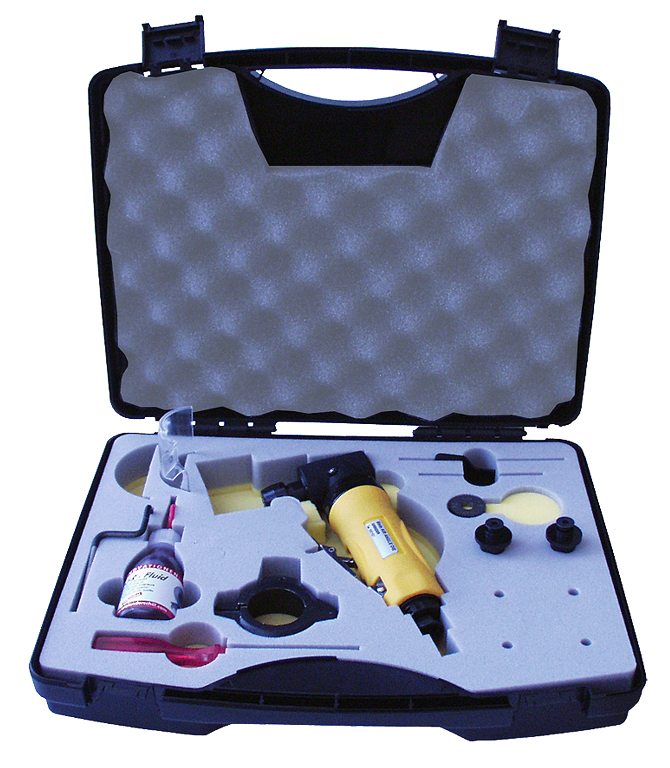

consisting of:
  • mini angle die grinder
  • shaft 0,8 mm and 1,0 mm
  • cutting wheel VHM 25 x 4 mm
  • protection cover for wheel 25 mm
  • alu clamp ring
  • guide
  • mounting tools
  • allen key
  • BTR/BOR fluid cutting oil
  • case


TECHNICAL DATA

Speed: 18,000 rpm
Working pressure: 6 - 8 bar
Air consumption: 500 l/min.
Sound level: 82 dB
Vibration: ‹ 0.9 m/s²
Weight: 850 g
Air connection: 1/4"
Suitable plug nipple: Art -No. 3926 14 1
