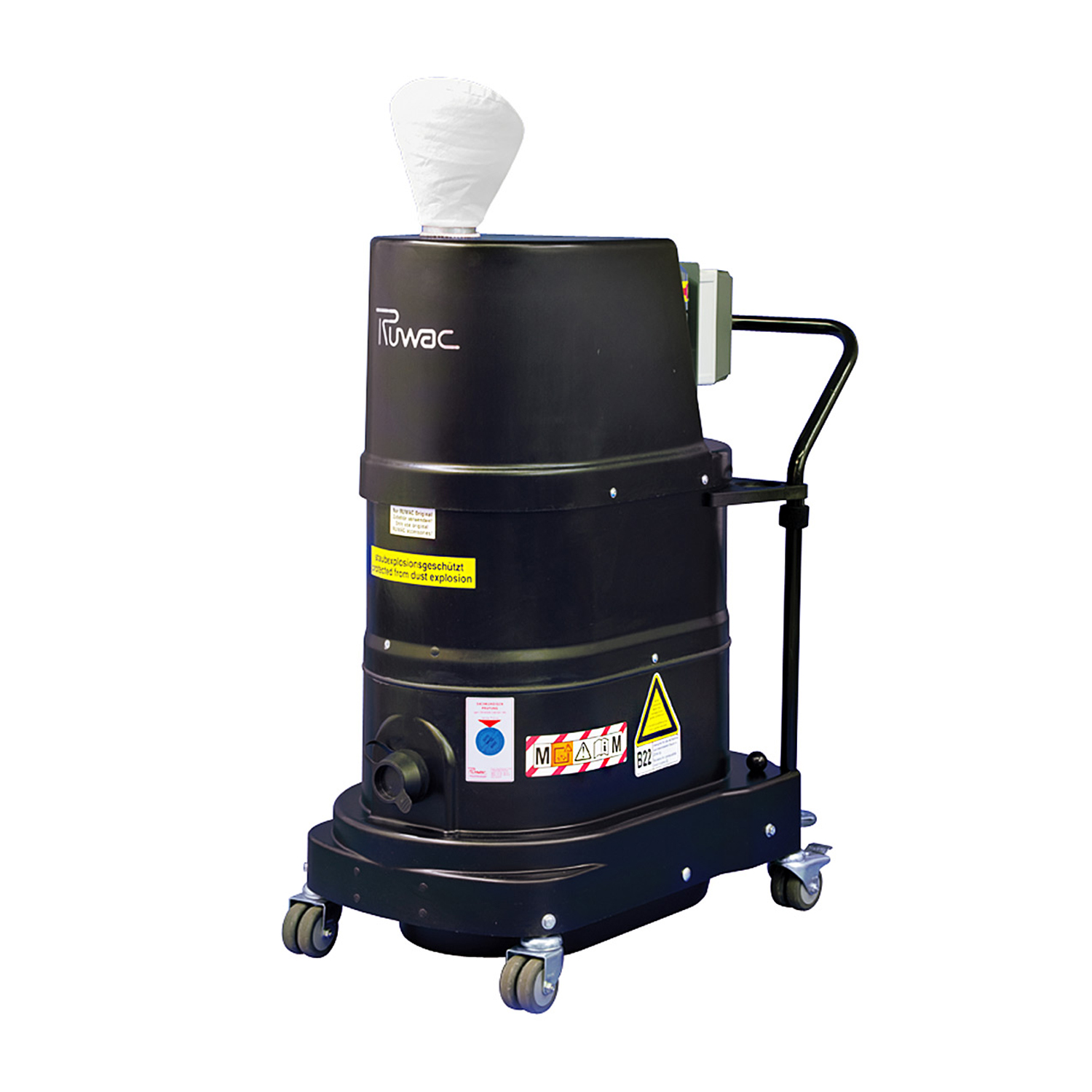

VAS 6571/1 Portable Extraction System for Steel Dust

The portable extraction system VAS 6571/1 is suitable for the collection of steel dust. Explosion-proof according to ATEX II 3D suitable for Zone 22. NOT suitable for the extraction of flammable, explosive or harmful dusts.The frictionless and sparkless cabinet consists of absorbable and glas fibre consolidated polyester.

Please note: The extraction of aluminium and synthetic dusts is prohibited! For the extraction of aluminium or synthetic dusts during the repair of cars with composite construction (aluminium/steel) you have to to use the extraction system for aluminium and plastic dusts VAS 6572/2!

Technical data:

power: 2,2 KW
voltage: 3 x 400 V / 50 Hz
protection class: IP 65
connecting cable: 10 m 5 x 1,5 mm² CEE 5/16A/IP67
filter type: bag filter
filter area: 1,2 m²
dedusting type: manually dedusting
airflow: 270 cbm / h
pressure: 206 mbar
noise level: max. 70 db(A)
dust container: 35 litres
