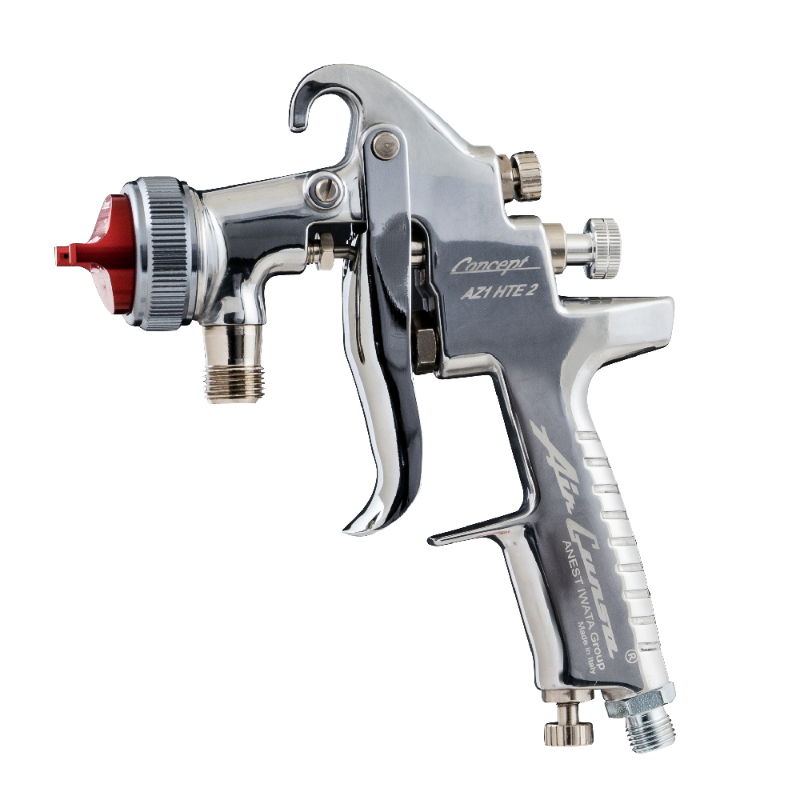

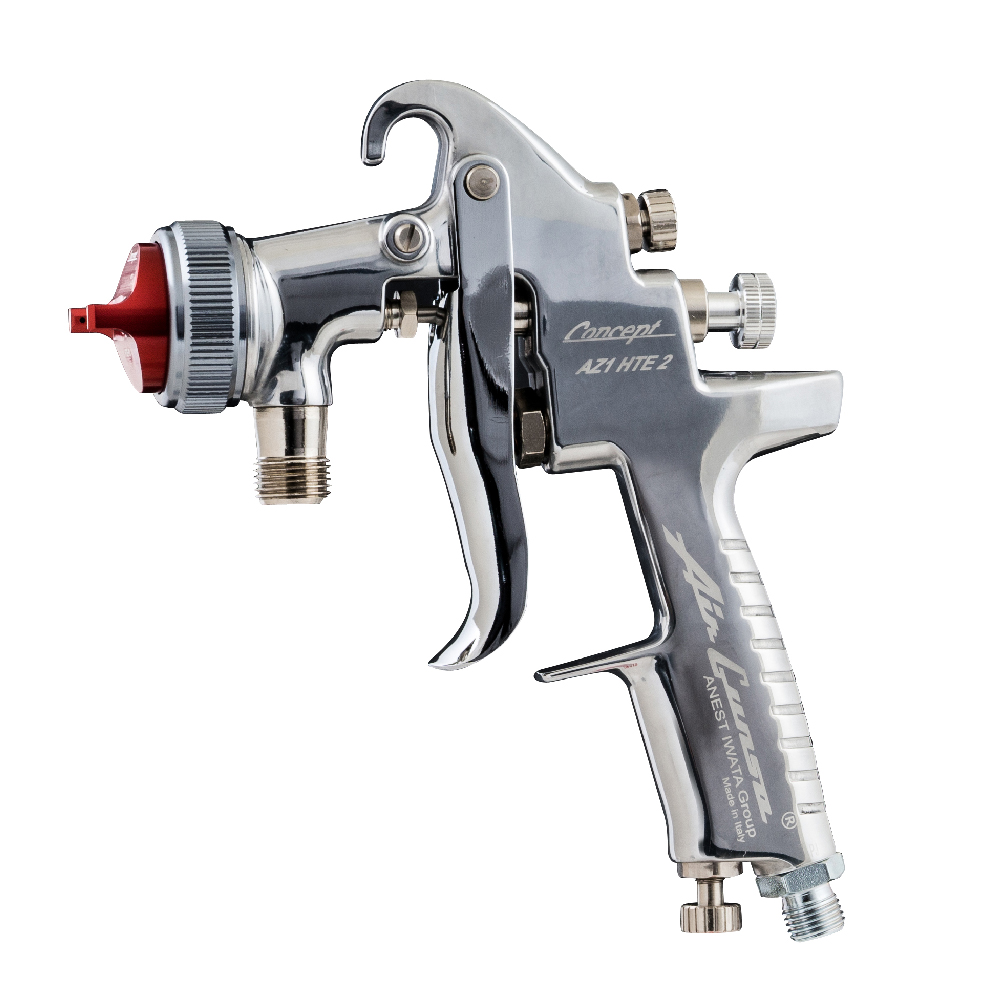

AZ1 Concept HTE Spray Gun Only

The AZ1 High Transfer range of pressure spray guns feature a newly designed range of air caps. This new technology allows even less experienced sprayers to obtain high quality and consistent finishing. These air caps develop a long and tulip-shaped spray pattern with an extra-fine particle distribution and very little overspray.

Fluid Nozzle Size [mm] - 1.3mm
Air Pressure @ Gun Inlet [bar] - 2.5
Air Consumption [l/min] - 416
Fluid Output [ml/min] - 400
Fan Pattern [mm] - 390
