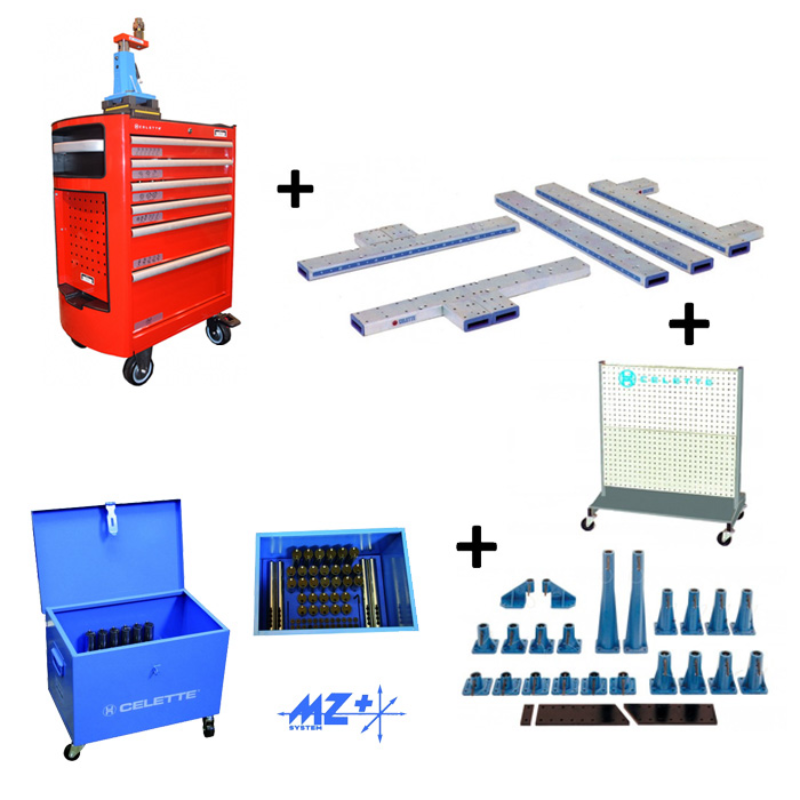

CAMELEON STARTER KIT
This item contains the following components:
Kit Includes:
1. CAM01.102 - Cameleon Basic Fixtures Set
The Cameleon is a Customizable Fixture-set Solution for structural measures and repairs of damaged vehicles.
It is modular and scalable with a set of standard tips, 10 adjustable X and Y plates and 10 adjustable jigs. Cameleon uses the 3D technology of the CELETTE® electronic mesauring system : Naja, thus ensuring optimum reliability of the measurements take by the bodyman when assessing the severity of the damage, reviewing or checking the compliance of a vehicle.
The Cameleon is adaptable to all of the existing CELETTE® standard tools :benches, crossmembers, towers and universal pistons. The Cameleon is a unique customizable tool that could be used for all car makes and models.
Features:
- Flexible and Adaptable to all vehicles
- Productive _ Easy set-up, unmatched simplicity of implementation and time saving
- Accurate _ same accuracy level than the dedicated fixtures solution
- Optimal _ workshop organization and space saving
2. 955A.9612 - Aluminium Crossmembers Set
3. MZ450.925 - 22 towers + Storage trolley
The MZ jig system, homologated by the global leading car makers:
- is an accurate tool based on jigs system which are used on the car production line
- eliminates operator errors (no guess works)
- ideal for reconstruction
4. MZ2500.000 - 34 Universal MZ Pistons
New design enables you to separate the piston from the specific top. Composition including 34 pistons with 4 various piston types:
- Piston P100 : 100 mm long , with 3 drillings A – B - C
- Piston P160 : 160 mm long , with 3 drilling D – E - F
- Piston P220 : 220 mm long, with 3 drillings G – H – J
- Piston P310 : 310 mm long , with 4 drillings K - L - M – N
The settlement in height is completed by means of a particular fixing by means of a pin, combining a piston hole (marked with a letter) with a hole in the MZ tower (characterised by a number).
