This item contains the following components:

• 1 x VAS6321A VAS CBR SYSTEM
• 1 x CBR STRONG-TOOL STRONG - EXTENSION
• 2 x CBR LINE-TOOL 100 WITH PULLING UNIT
• 2 x CBR LINE-TOOL 2. PULLING UNIT COMPLETE FOR LINETOOL
• 2 x CBR-LINE-TOOL
• 1 x DC04; 0.88MM DOOR PANEL
• 1 x CARBON, MULTIFUNCTIONAL STACKING TABLE

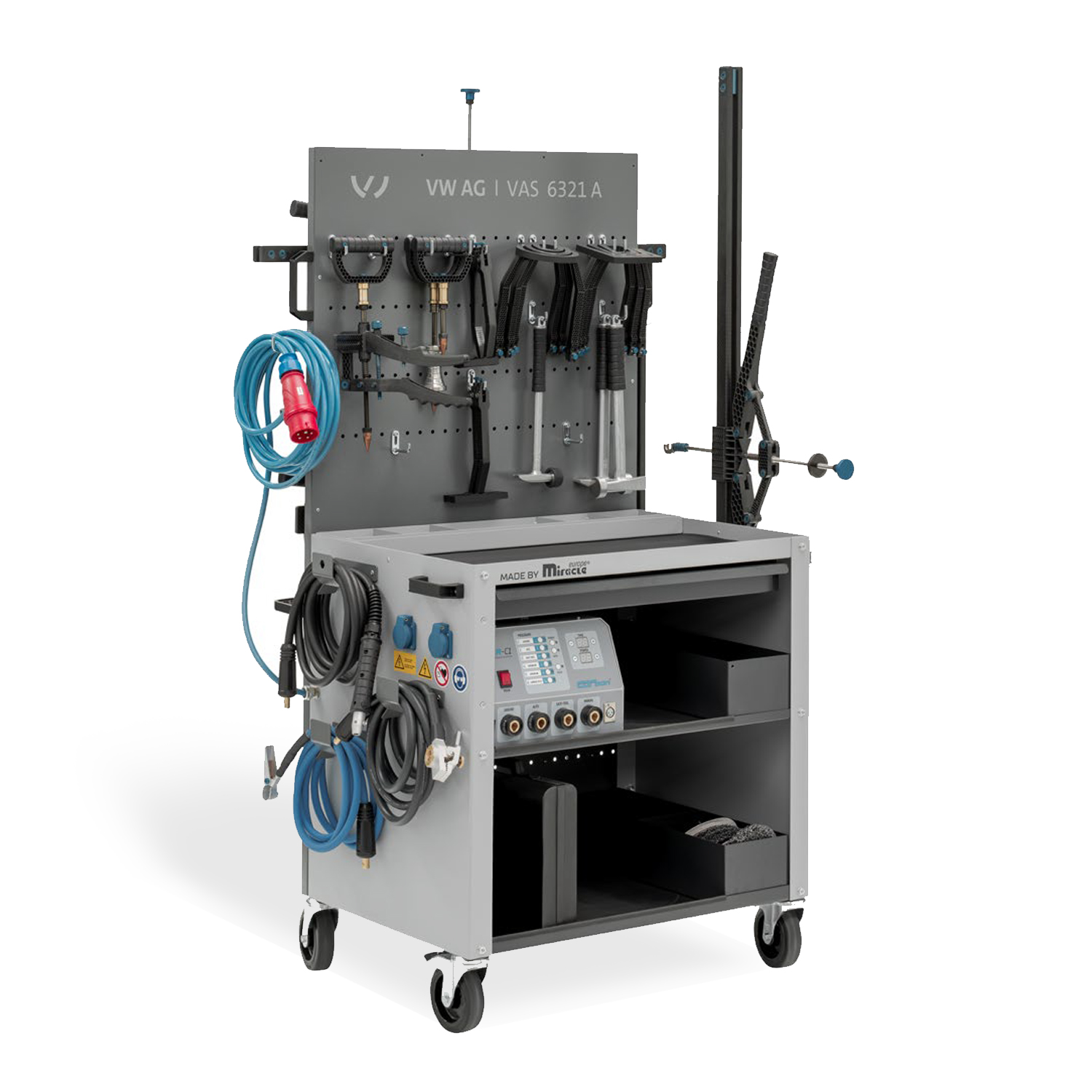

VAS6321A VAS CBR SYSTEM

The VAS 6321 A is a complete, innovatively designed repair system for the economical and high-quality repair of the car body's outer skin.

By means of resistance welding techniques, various straightening devices, and adhesive systems, almost unbelievable repair results can be achieved with experienced craftsmen after they have received instruction and training. The combination with optional tools/accessories from the Paint damage-free Dent Removal (AOL) technology and the Push / Pull System open up further possibilities in body repair.

The CBR-C1 PowerInverter

The VAS 6321 A/13 PowerInverter is the multifunctional power source (hereinafter referred to as SQ) at the heart of the VAS 6321 A. It enables a wide range of applications in the repair of damage to the body outer skin. The user has 6 programs available for different tasks, which are selected via pushbuttons (5-10). For all programs, our technicians have worked out basic values which are stored in the control electronics of the SQ and are automatically set after selecting the program.

The preset settings can be changed step by step and independently of each other with the keys (11-14), or adapted to the respective conditions (material quality, metal sheet thickness, etc.) - the adaptation is shown in the displays for time (11/12), or power (13/14).
