AZ3 BLACK BEAR SPRAY GUN 3.0mm

AZ3 BLACK BEAR SPRAY GUN 3.0mm
$238.00 Ex GST
in-stock
Code: CCG30
Brand: CAM Bear Products
Product Details
AZ3 BLACK BEAR SPRAY GUN 3.0mm


Order by:
Estimate Freight

To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

Postcode

Quantity

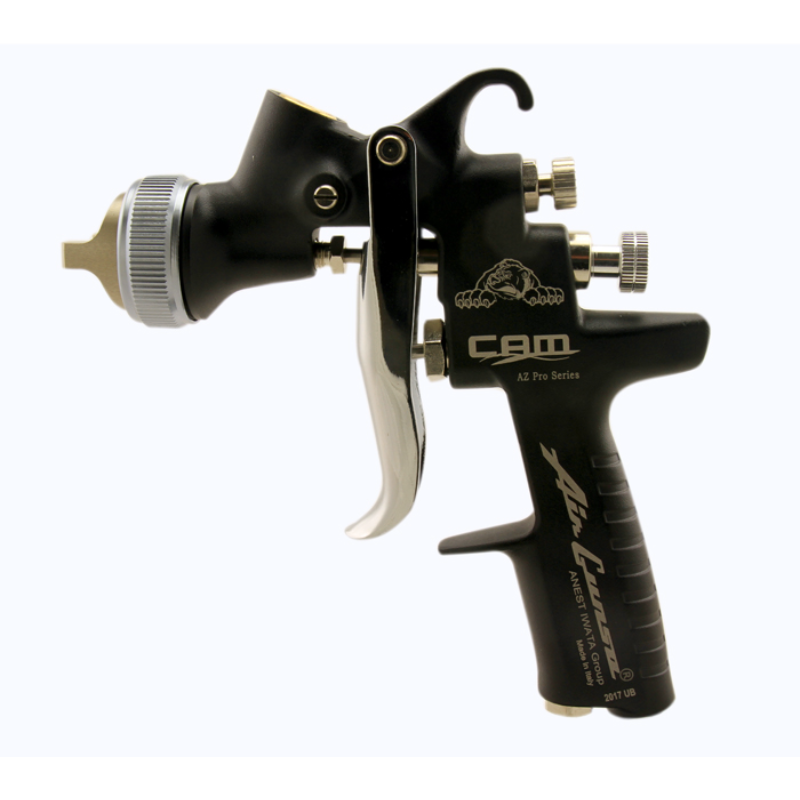

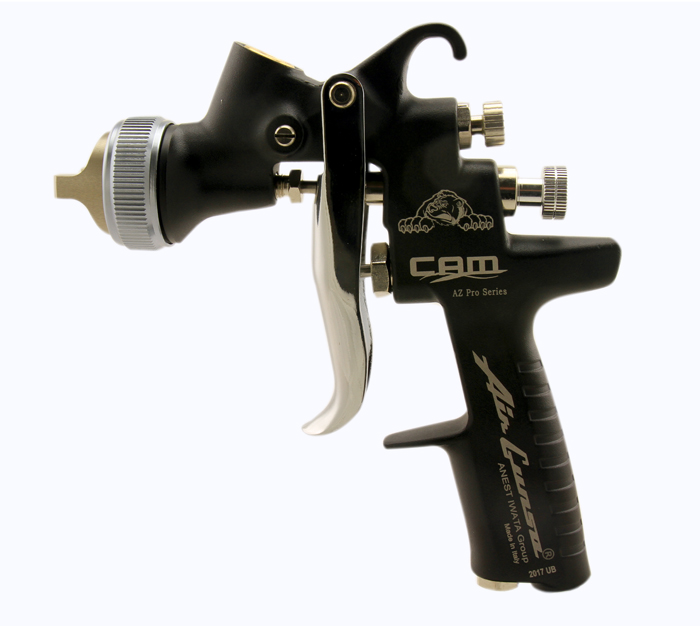

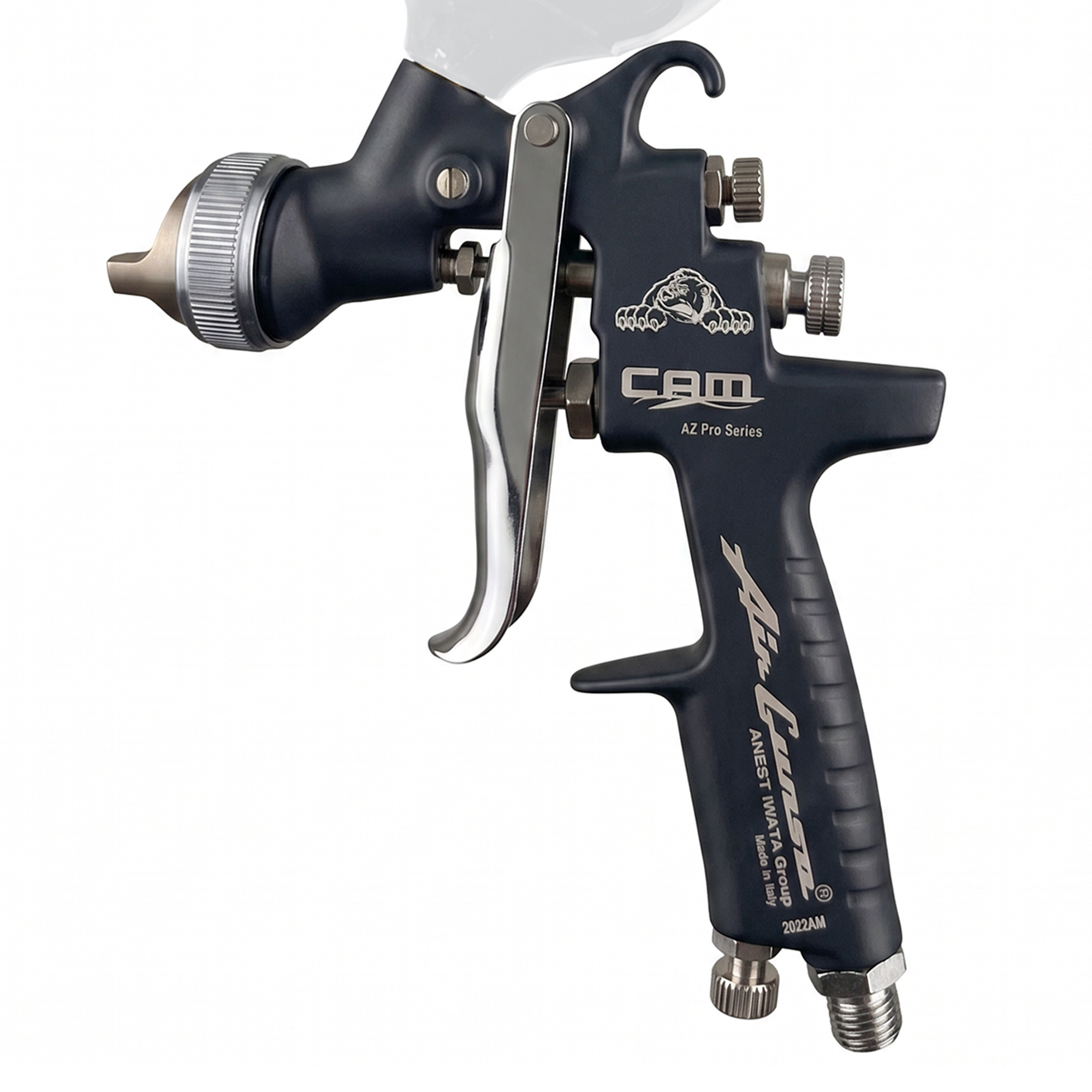

CAM BEAR "BLACK EDITION" GRAVITY SPRAY GUN

Features:

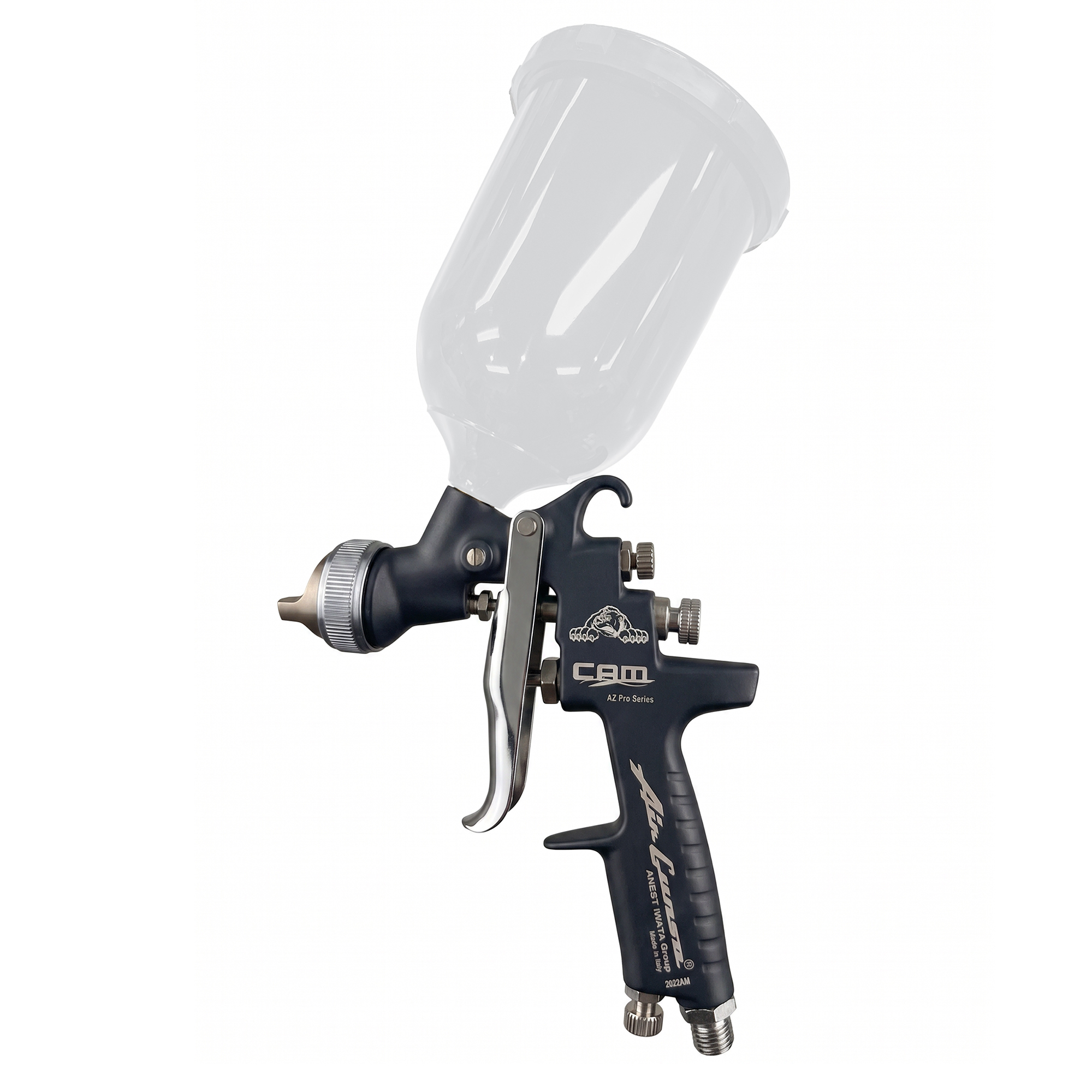

AZ3 Series 2 HTE Spray Gun complete with 600ml Pot

The AZ3HTE is an affordable high transfer efficiency centre post gravity feed spray gun.

The perfect gun for primer and heavy bodied materials, the AZ3HTE is a must have in every bodyshop.

One of the many upgrades the re-modelled AZ3HTE features is a separation of the air control and your air hose, along with a newly designed air cap and a polished body for easier cleaning and maintenance.

BY IWATA MADE IN ITALY

Specifications:

Part No.Fluid Nozzle Size [mm]Air Pressure@ Gun Inlet [bar]Air Consumption [l/min]Fluid Output [ml/min]Fan Pattern [mm]Pot type / sizeCapacity [ml]
CCG13 1.3 2 200 140 240 PCG.6AG 600
CCG15 1.5 2 200 160 260 PCG.6AG 600
CCG18 1.8 2 205 250 300 PCG.6AG 600
CCG20 2.0 2 205 300 340 PCG.6AG 600
CCG25 2.5 3 279 450 360 PCG.6AG 600
CCG30 3.0 3 288 560 400 PCG.6AG 600
CCG35 3.5 3 307 600 420 PCG.6AG 600
