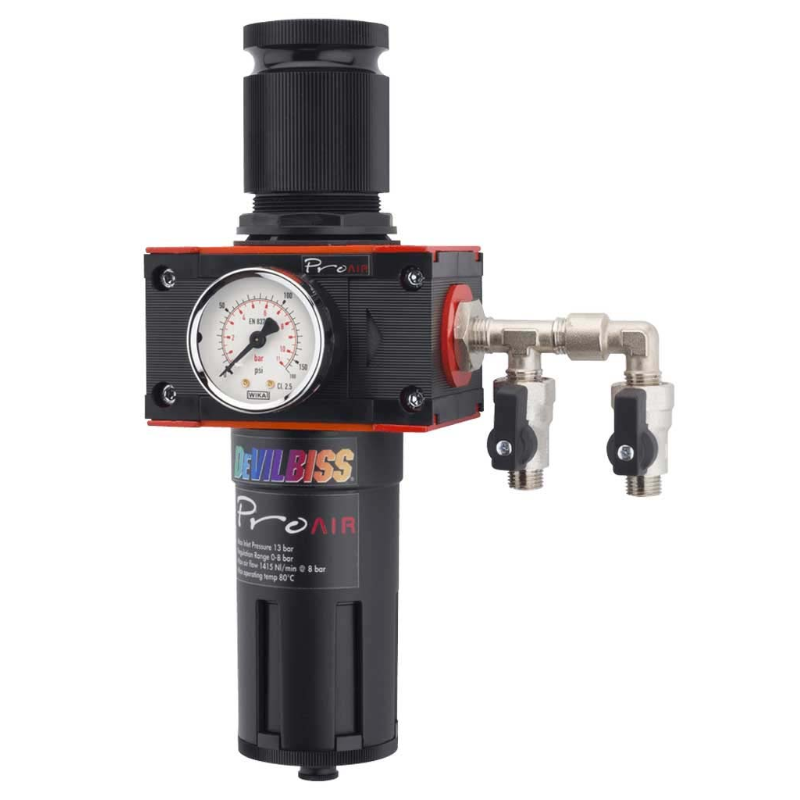

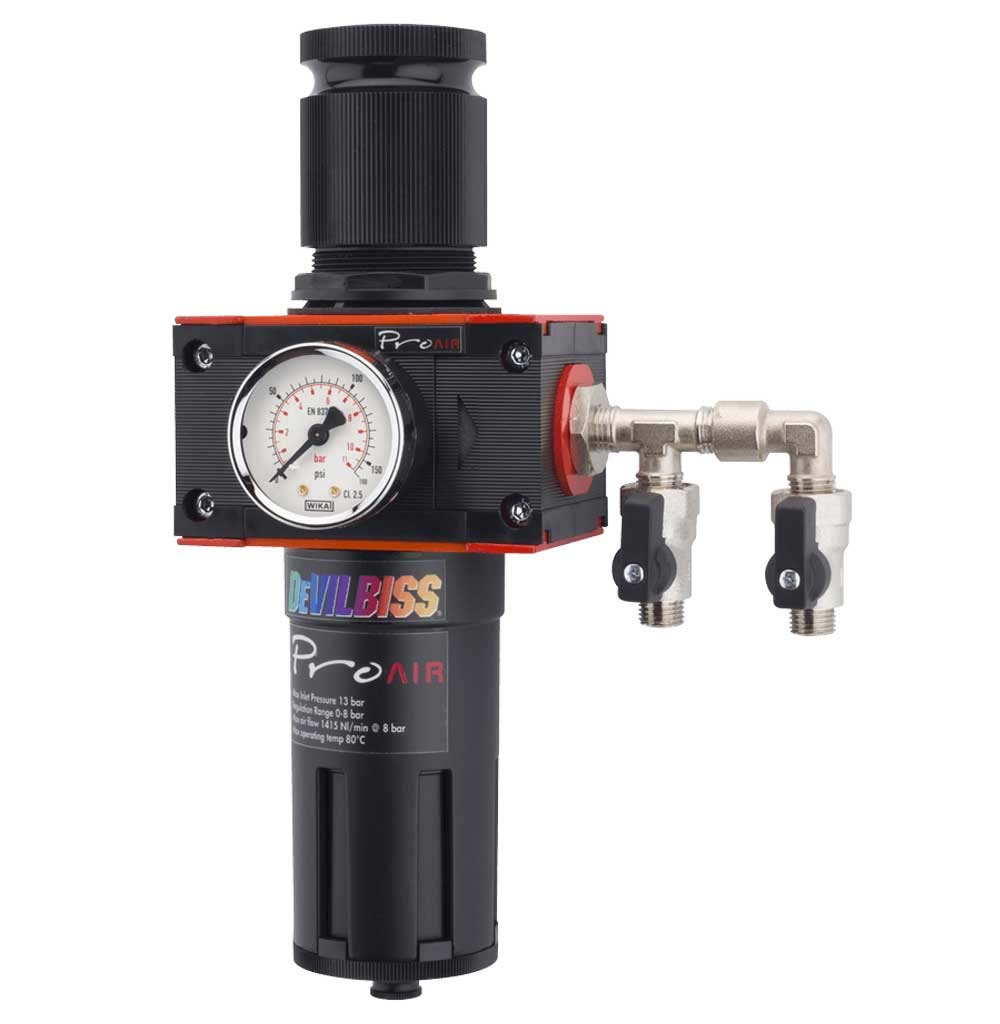

DEVILBISS PRO AIR-1 FILTER REG & COALESCER

D12235
OUT OF STOCK
DEVILBISS

$587.00 (EX GST)

DEVILBISS PRO AIR-1 FILTER REG & COALESCER AIR 1
Devilbiss Pro Air 1 Filter Regulator

DeVilbiss Pro Air 1 Filter Regulator Dual filtration eliminates dirt down to 5 microns from reaching the spray gun and like all ProAIR filter regulators, condensate can be removed from the filter bowl manually or semiautomatically on depressurisation of the system. Ideal for running a spray gun (not suitable for breathing air).

DeVilbiss Pro Air 1 Filter Regulator Dual filtration eliminates dirt down to 5 microns and will filter air for spray guns but is not suitable alone for air breathing. It is recommended that a two or three stage filter system with at least a coalescer is used for air breathing.

Features:

· Provides air filtered to 5 microns

· Maximum airflow 3500 l/min (124 cfm)

· Suitable for use in booth/oven up to 100°C (212°F)

· Three ball valve controlled outlets

· Tamperproof, removable and lockable air pressure control knobs

Air Inlet Thread

1/2” BSP (F)

Regulated Outlets

3 Valved

Unregulated Outlets

NA

Air Outlets (Ball Valves)

1/ 4” BSP (M)

Width (Overall)

175mm (6.9”)

Height (Overall)

280mm (11”)

Weight

2500 gms (88oz)

Capacity (maximum air flow)

3500 l/min (124cfm)

Maximum Air Inlet Pressure

13 bar (189 psi)

Maximum Regulated Outlet Pressure

0-8 bar (0-116psi)

Maximum Operating Temperature

100°C (212°F)

Pressure Gauge

0-11 bar (0-160 psi)

Gauge port

1/8” BSP (F)

Air Filtration

Down to 5 microns

Drain Valve

Semi-Automatic
