DEVILBISS PRO AIR-2 FILTER REG & COALESCER

DEVILBISS PRO AIR-2 FILTER REG & COALESCER
$1,082.70 Ex GST
no-stock
Code: D12236
Brand: Devilbiss Parts
Product Details
DEVILBISS PRO AIR-2 FILTER REG & COALESCER


Order by:
Estimate Freight

To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

Postcode

Quantity

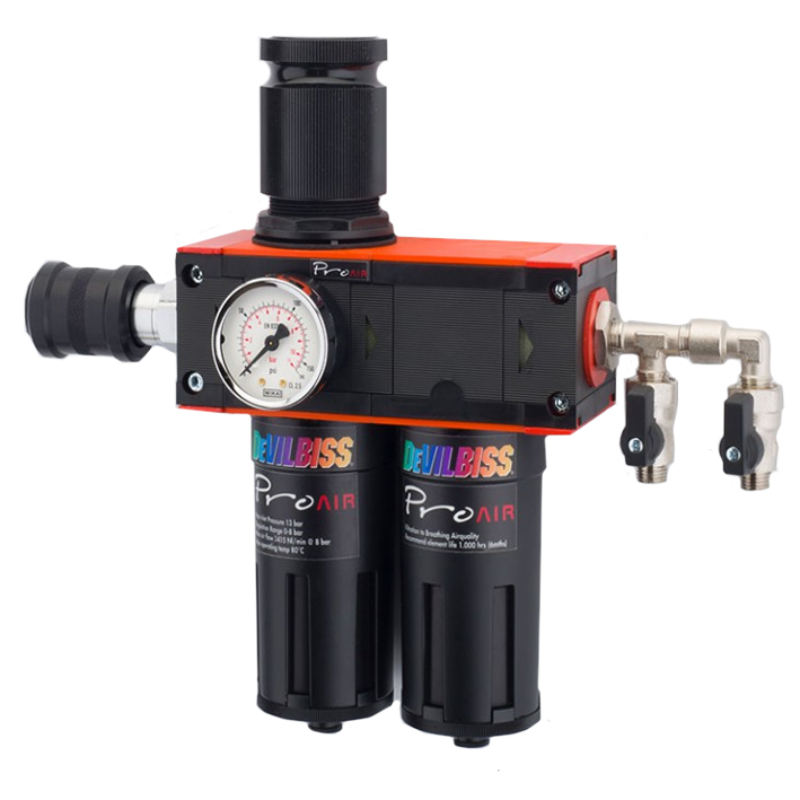

DEVILBISS PROAIR-2 Filter Regulator & Coalescer

DEVILBISS Filter Regulator PROAIR-2. High air flows for conventional and compliant spray guns. Provides air filtered to 0.01 microns suitable for air-fed respiratory outfits. Maximum airflow of 3500 l/min (124cfm) Suitable for use in booth/oven up to 100°C (212°F). Three ball valve controlled outlets. Rolling diaphragm gives rapid response and sensitive air pressure control.

Technical Specifications DeVilbiss PRO AIR 2

Air Inlet Thread 1/2” BSP (F)
Regulated Outlets 3 Valved
Unregulated Outlets NA
Air Outlets (Ball Valves) 1/ 4” BSP (M)
Width (Overall) 240mm (9.5”)
Height (Overall) 280mm (11”)
Weight 3200 gms (113oz)
Capacity (maximum air flow) 3500 l/min (124cfm)
Maximum Air Inlet Pressure 13 bar (189 psi)
Maximum Regulated Outlet Pressure 0-8 bar (0-116psi)
Maximum Operating Temperature 100°C (212°F)
Pressure Gauge 0-11 bar (0-160 psi)
Gauge port 1/8” BSP (F)
Air Filtration Down to 0.01 microns (Suitable for Breathing Air)
Drain Valve Semi-Automatic
Maximum Pressure Drop 10% of Inlet Pressure
