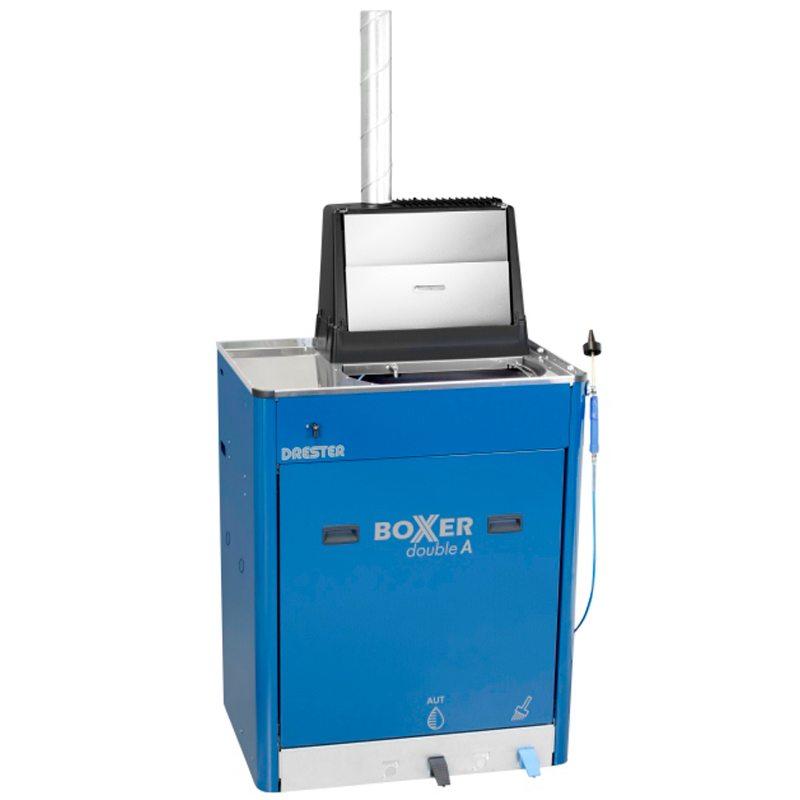

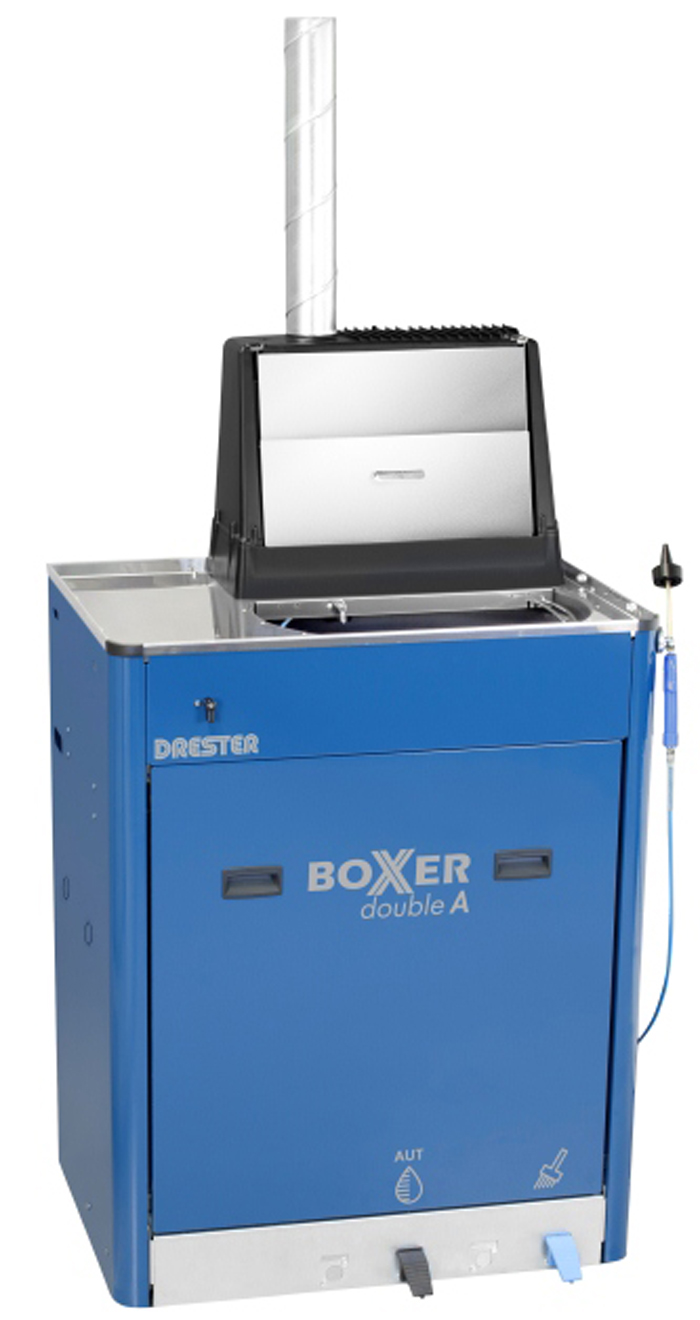

A compact-size unit for water-borne cleaning.

The Double A (DB22A) has 2 working stations, which can both be used simultaneously, independently of each other.

The working stations are:

– Automatic washing station, using recirculating wa-terborne solvent (like Drester AquaSolve)

– Sink for manual cleaning, equipped with a paint channel rinse gun using clean water and a flow-through brush using recycled water.

The Double A comes equipped with a pneumatic extractor.

TECHNICAL DATA

Compressed air needed :
7–12 bar (110-180 psi), 250 l/min (9 cfm)
Extraction capacity:
140 m3/hour (82 cfm) (with a 15 m extension)
180 m3/hour (106 cfm) (with a 5 m extension)
Weight : 65 kg (140 lb)
Overall dimensions :
Height: 1510 mm (59,5”),
Width: 835 mm (33”)
Max depth: 650 mm (25,5”)
Depth at the floor: 610 mm (24”)
Extraction diameter : 80 mm (3.15”)
