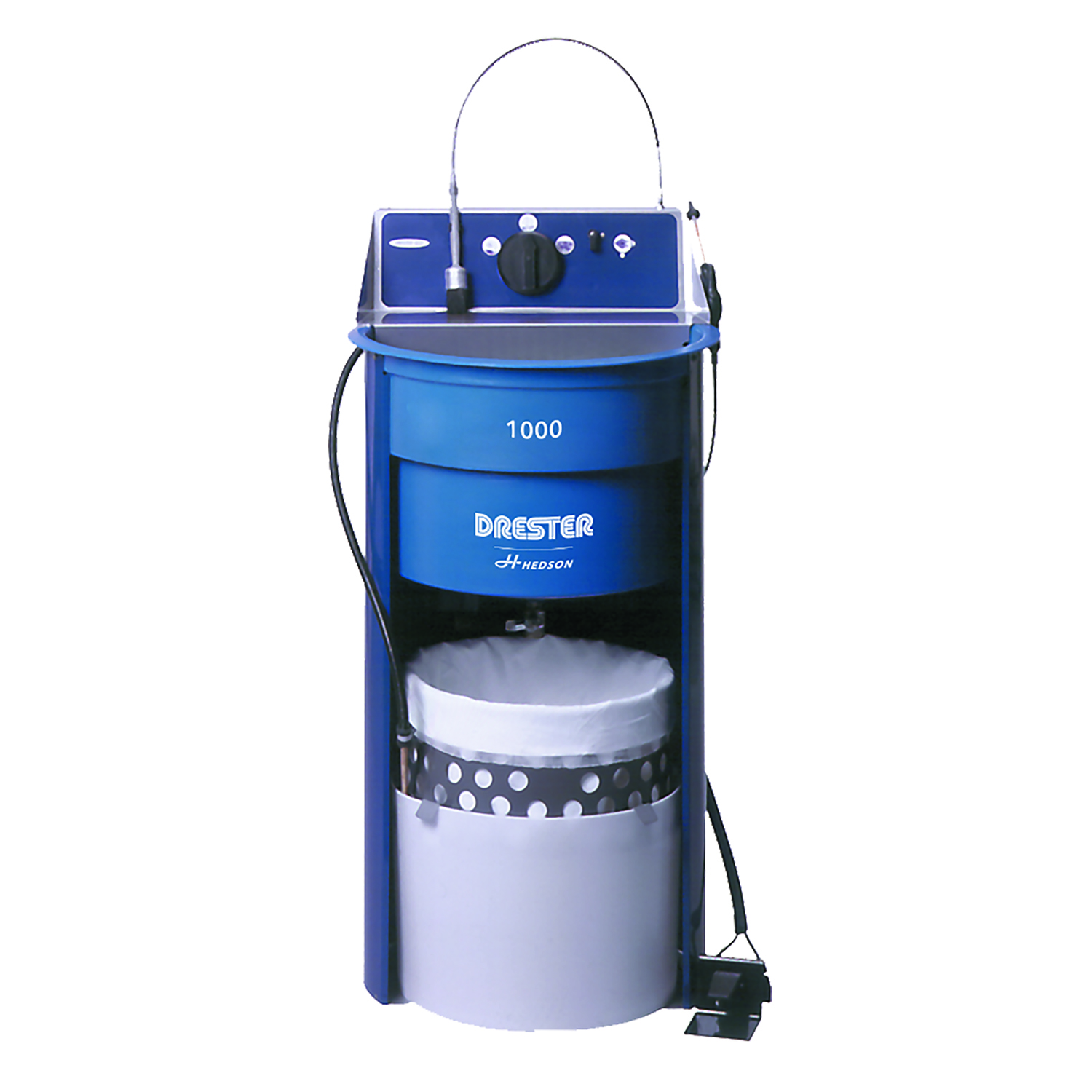

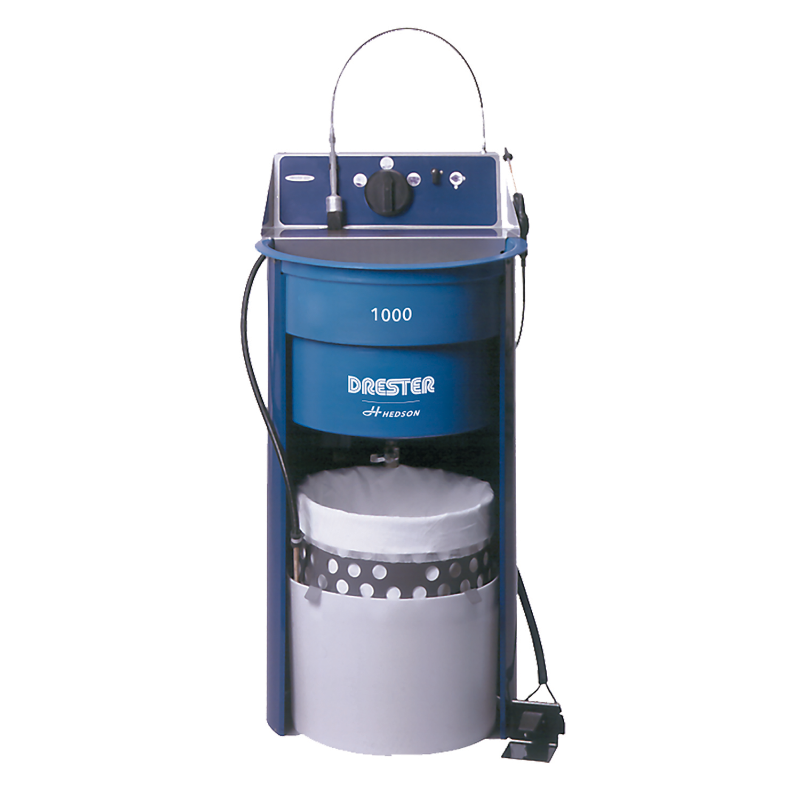

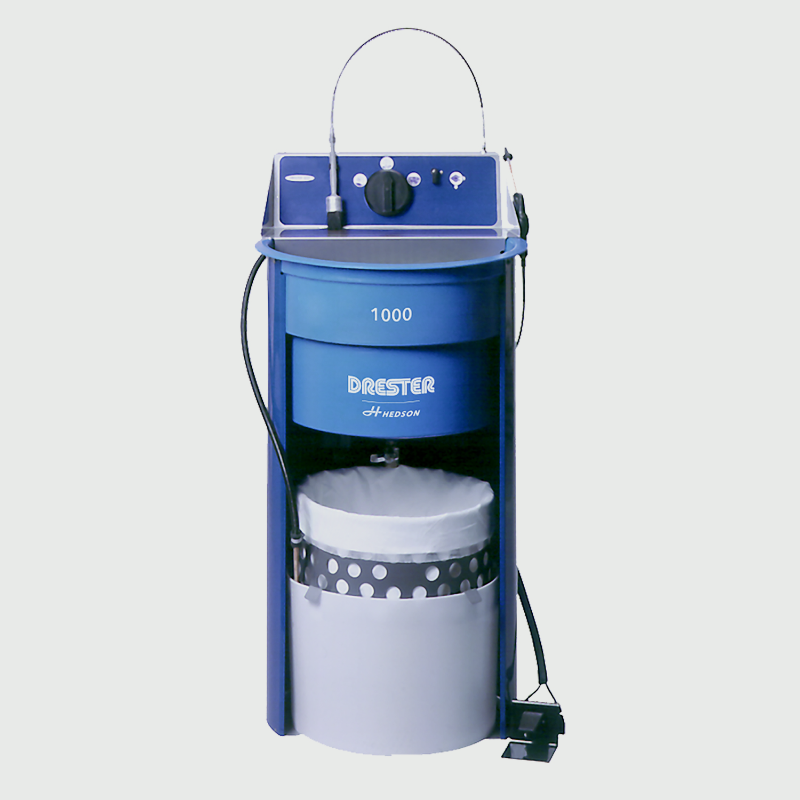

The Drester 1000 is the world’s no.1 manual gun cleaner for all water-borne paint systems. Beside its unequalled 35 liter/10 gallons capacity and user-friendliness, it has a built-in waste recycling system, saving money and the environment.
Manual cleaning with brush and high pressure rinse gun
The gun is quickly and easily cleaned externally with the flow-through brush and the gun’s paint channel is rinsed with the effictive high pressure rinse gun. The rinse gun can easily be connected to either recirculating water or to tap water.
Waste water recovery system
The waste water is easily recycled through the built-in flocculation and filtration system. After cleaning 30-40 guns, the water is used up. By adding flocculation powder to the waste water, the waste separates from the water and can be filtered away. When the waste is flocculated, the bottom drain is opened and the flocculate is let through the filters. The filters hold 35 liters, meaning that you can dump the whole batch of waste at once. To allow the filters to be re-used 5-8 times, two filters are used. A pre-filter in combination with a fine-filter catches all contaminants of all sizes and the water that passes through is ready to be reused.
Automatic liquid agitation
The Drester 1000 is equipped with an automatic agitation feature, making flocculation quick and easy.
Drester diaphragm pump
The pump is the heart of any gun cleaner and it is the most critical component for performance and durability. Unlike any other pump, the Drester diaphragm pump was developed specifically for use in gun cleaners.
|Liquid volume||35 l|
|Water flow through the rinse gun||1.5-2 l/min|
|Air consumption||100 l/min (4 cfm)|
|Flow through brush||1,5-2 l/min|
|Air supply||5-12 bar (80-180 psi)|
|Diameter||Ø 590 mm (23”)|
|ATEX||Ex II 3 G EEx cIIA T6|
