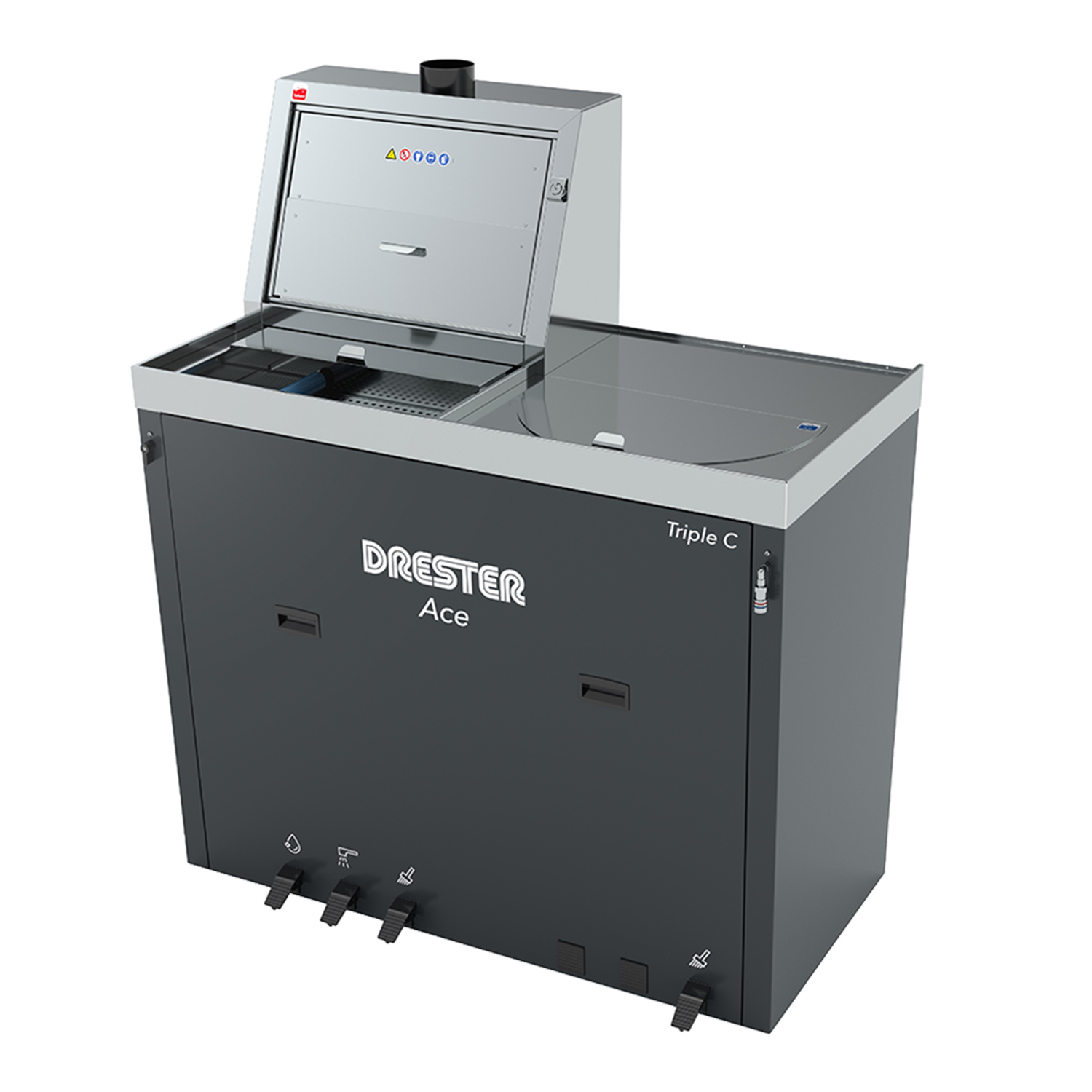

DRESTER ACE TRIPLE COMBO

DRESTER ACE TRIPLE C

3 Washing stations: 2 solvent (1 auto, 1 manual), 1 waterbased (manual)

Pioneering solvent- and water-based spray gun cleaning. A better use of solvent is good for the environment and the paint shop. Optimised to be more ergonomic and work even more efficiently, for quick and safe spraygun cleaning. Key features include:

- High-speed extraction of the vapors at the source
- New advanced auto-wash nozzle design
- All-stainless solvent wash areas, easy to keep clean
- Reduce solvent amount and waste removal costs
- Save energy - minimized ventilation with higher air speed

NEW AND UNIQUE CAPTURE@SOURCE

- Ventilation that captures emissions close to the source
- User exposure and solvent loss are minimized

COMPACT AND ERGONOMIC

- Comfortable work position and clear visibility

EASY TO USE - EASY TO CLEAN

- All-stainless solvent-washing compartments

QUICK AND RELIABLE

- Patented universal spraygun holder

DRESTER PUMPS (ATEX CAT 1/ZONE 0, SOLVENT GROUPS IIA AND IIB)

Our pump, the powerhouse behind all our systems, is focused on efficiency. Unparalleled flow and pressure from our pumps ensure the best possible cleaning power. The new advanced design of the wash compartment nozzle system is only possible, thanks to the robust pump, resulting in more effective wash cycles. With a track record of success spanning over 30 years, almost 200.000 Drester pumps were supplied.

DRESTER PATENTED SPRAYGUN HOLDER

Our patented universal spray gun holder opens the paint channel and fixes the spray gun in seconds, with the air channel protected by an air purge hose. Always has excellent cleaning results and fits all spray gun brands immediately.

DRESTER CAPTURE@SOURCE VENTILATION

Drester Capture@Source ventilation provides superior working conditions. High-speed extraction of the vapors at the source means that the user does not get exposed, and solvent loss is minimized.
Capture@Source uses discreet and out-of-the-way vents to intercept the vapors.

DRESTER CAPTURE@SOURCE VENTILATION

For superior working conditions. Reduces user exposure and solvent loss. These images demonstrate the effectiveness of the discreet, high-speed Capture@Source vents.

- Compressed air required: 7-12 bar (110-180 psi)
- Ventilation built-in: 360m³/h (4S/4C) (212 cfm) with 10 m extension
- Designed for 60 litre drums (15.8 US Gal.) (2C: 25 litre / 6.6 US Gal.)
- Extractor diameter: 100 mm (4”)
- Pump certification: ATEX cat 1/zone 0, for solvent groups IIA and IIB
- Warranty: 3 years
- ATEX Category: cat 2 / zone 1
- Stainless steel version available: Yes Art. No. DIxx
