AUTOPULSE 220-M3

AUTOPULSE 220-M3
in-stock
Code: GYSAUTOM3
Brand: GYS Parts & Consumables
Product Details
AUTOPULSE 220-M3


Estimate Freight

To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

Postcode

Quantity

Kit Components

This item contains the following components:

AUTOPULSE 220-M3

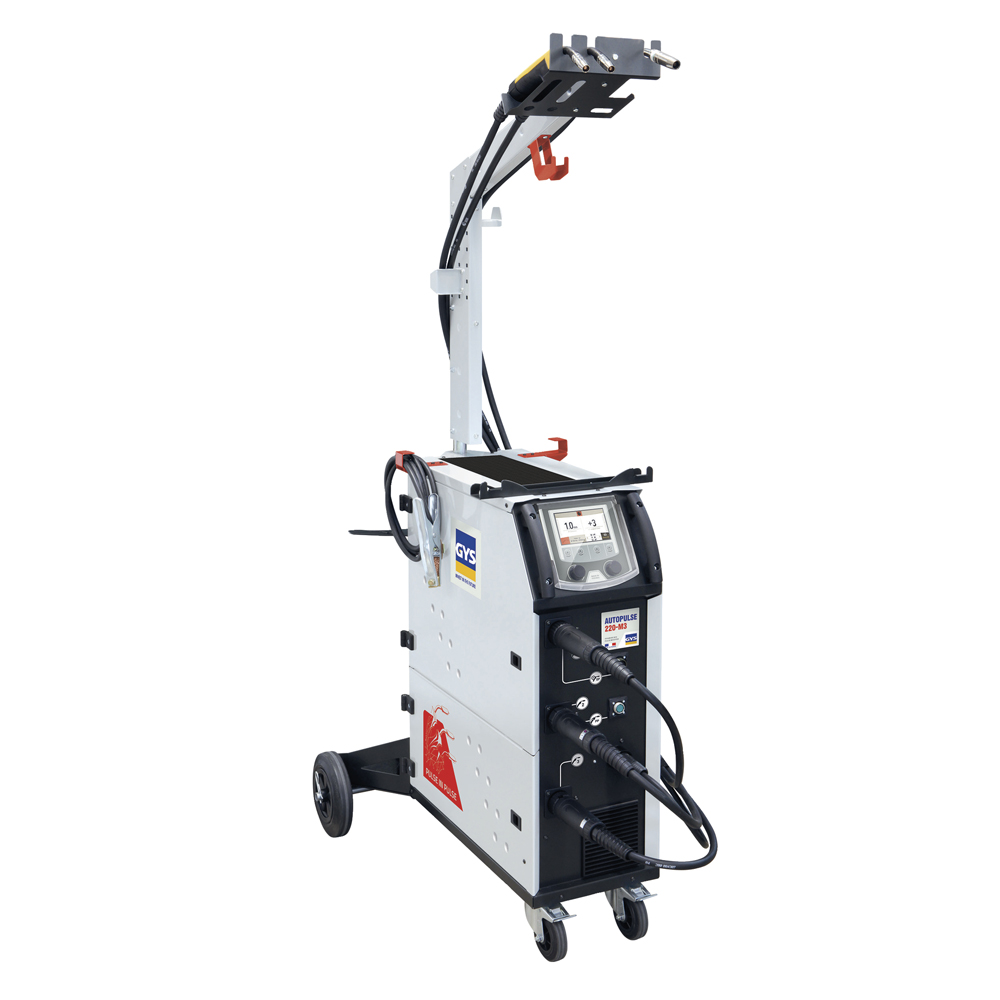

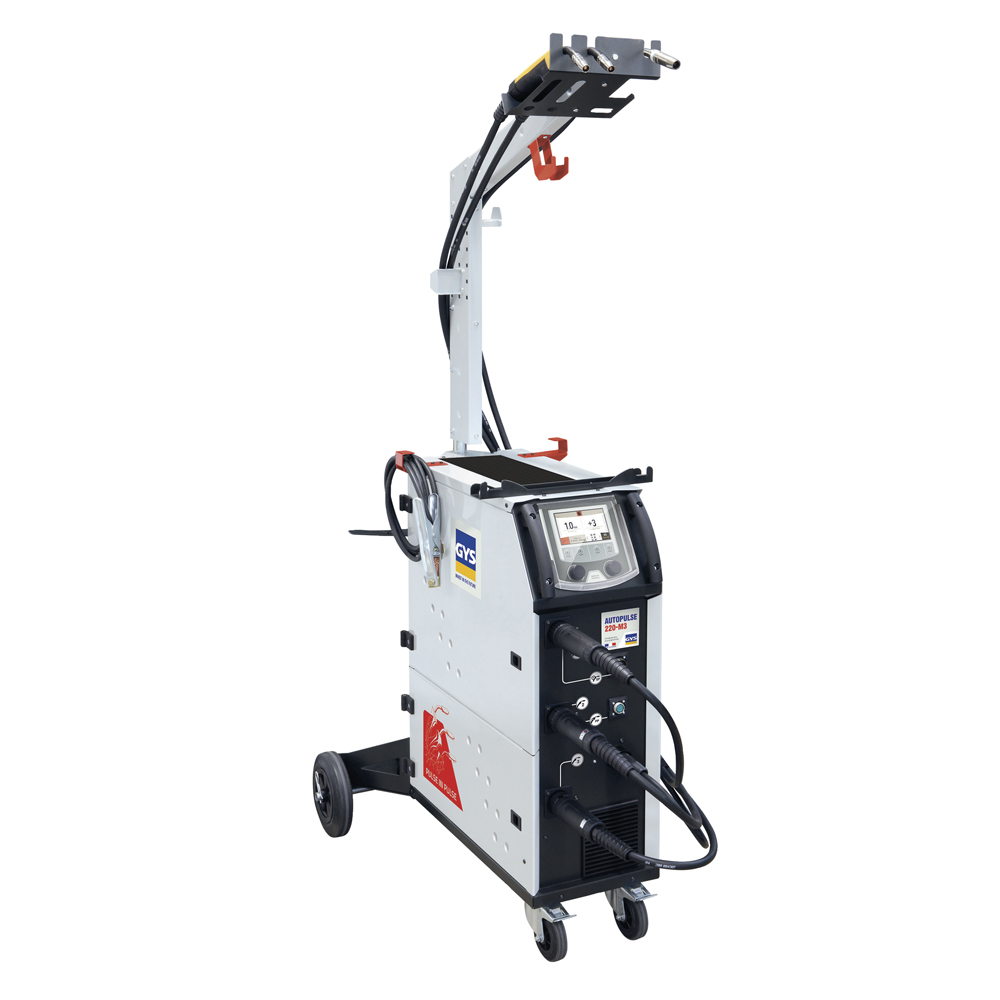

AUTOPULSE 220-M3 is the MIG / MAG pulsed generator with 3 integrated wire feeders ideal for carbody repairers. Equipped with a digital PFC (Power Factor Correction) the Autopulse supplies pulsed welding quality comparable to three-phase products. Designed for highest performance the 220-M3 features several synergic curves which enables exceptional arc quality. The Autopulse 220-M3 is incredibly versitile, 3 welding torches for use with multiple material including Steel, Aluminium and Brazing (CuSi3/CuAl8) increase productivity for the modern day workshop.The intuitive interface and high precision wire feed are ideal for car-body applications with exceptional welding quality even when used with thin sheet materials.

OPTIMISED MIG/MAG SETTINGS

Welding processes: Standard, Pulse, Pulse in Pulse, Cold pulse and Manual.
Trigger modes: 2T, 4T, SPOT, DELAY and TACK function.
Precise control over the welding cycle: CreepSpeed, Softstart, Hotstart, Upslope, Downslope, Crater Fill, Post gas, etc.
2 specific compartments to isolate and avoid pollution of the aluminum coil:
- steel wire Ø 0.6 / 0.8 / 1.0 mm (upper compartment n ° 1)
- stainless steel wire Ø 0.8 / 1.0 mm (upper compartment n ° 1)
- aluminum wire Ø 0.8 / 1.0 / 1.2 (lower compartment n ° 2)
- CuSi and CuAl wire Ø 0.8 / 1.0 mm (upper compartment n ° 1)

SIMPLIFIED WELDING
  • 57 (Adjustable) synergic curves ensure an outstanding weld for a large range of materials, wire sizes and gas.
  • The fully synergic mode calculates the optimal welding parameters automatically, this can be also be adjusted (wire speed, voltage and current).
MAXIMUM PRODUCTIVITY
  • 4 microprocessors to give four times the processing power.
  • 3 wheel drive system with 2 active drive rolls.
  • Up to 3 wire reels of Ø 200 mm accepted.
  • Automatic torch detection while pulling the trigger.
  • Balancing arm with torch support (x3) and welding helmet
  • Push pull torch compatibilty (24V)
  • Spool Gun compatibility (ideal for soft wire(AlSi5 / AlSi12)
ERGONOMIC INTERFACE
  • Brand new Interface which has been simplified and centralized with car-body repairer operational habits.
  • Large colour screen for simple control of the welding cycle set up.
  • 2 control knobs and 4 keys for simple and intuitive navigation of the operational menus.
  • Machine and synergies easily updateable via USB key.
  • Save up to 500 welding programs for repetitive tasks.
ROBUST AND MOBILE
  • Reinforced structure.
  • Frame supporting 2 bottles (2x4m3) with low loading height.
