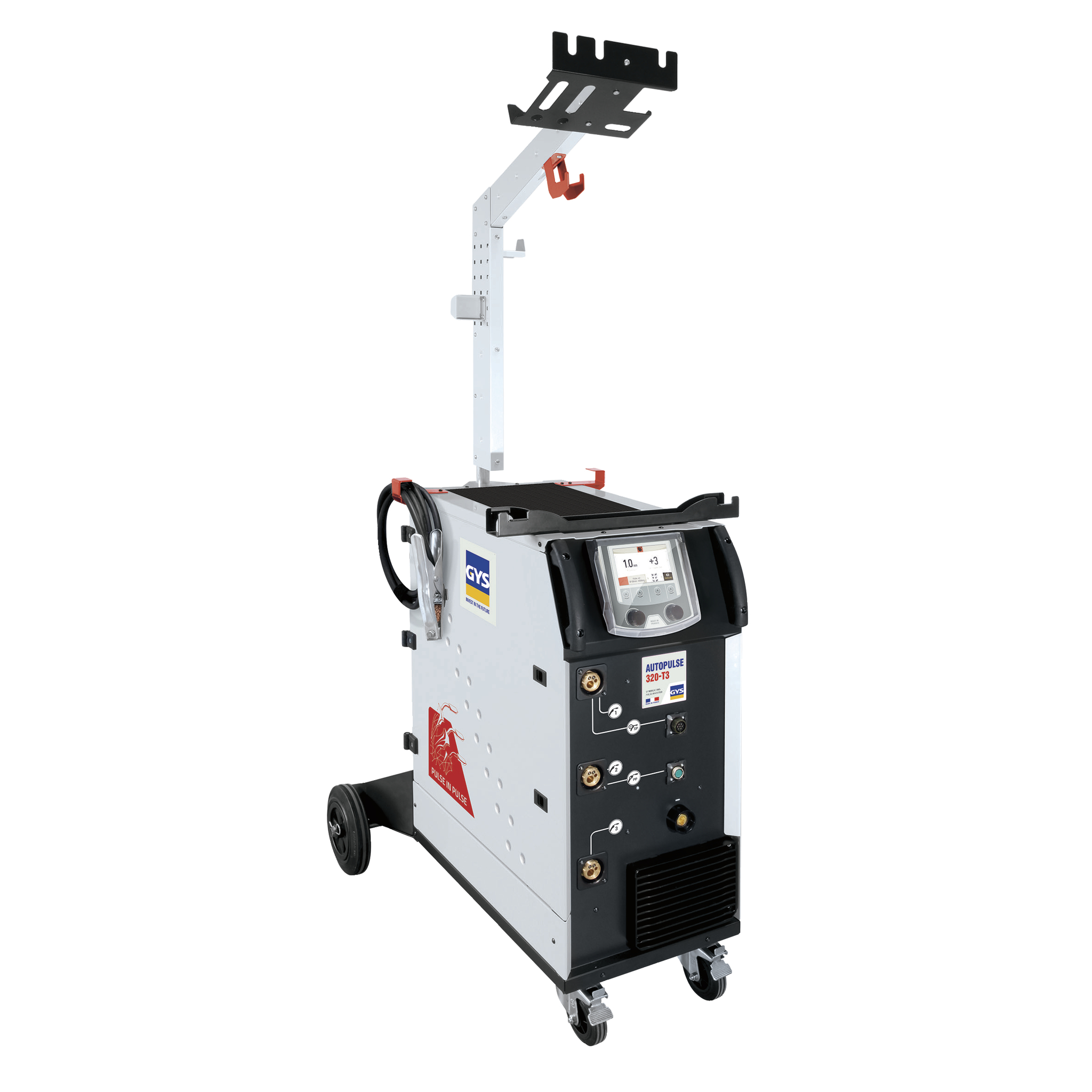

AUTOPULSE 320-T3 PUSH-PULL

AUTOPULSE 320-T3 is a digital MIG/MAG double pulse generator with 3 integrated wire feeders. It is an extremely advanced machine with 46 synergic curves providing an exceptional arc quality. Versatile, it will hold 3 different torches to weld steel, aluminium and brazing (CuSi3/CuAl8). The user friendly interface and the very precise wire feed make the quality of the weld on very thin sheets outstanding.

MIG/MAG OPTIMISED SETTINGS

• Welding processes : Standard, Pulse, Pulse in Pulse, and Manual.
• Trigger activation modes : 2T, 4T, SPOT, DELAY and TACK function.
• Precise control over the welding cycle : CreepSpeed, Softstart, Hotstart, Upslope, Downslope, Crater Filler, Postgaz, etc.
• MIG/MAG welding : - steel wire Ø 0.8 / 1.0 mm - stainless steel wire Ø 0.8 / 1.0 mm - aluminium wire Ø 0.8 / 1.0 / 1.2 mm
• Brazing mode : - wire CuSi and CuAl Ø 0.8 / 1.0 mm

SIMPLIFIED WELDING

• The 46 synergic curves guarantee an outstanding weld using a large range of materials, wire sizes and gases.
• The integral synergic mode determines automatically the best welding settings but also allow the user to adjust them (wire feed speed, voltage, current, self).

MAXIMUM PRODUCTIVITY

• 4 microprocessors increase the calculation speed and general machine efficiency.
• Very high arc voltage guarantee an easy arcing and an exceptional arc performance on all types of metals.
• 3 electronically regulated wire feeders fitted with 4 drive rolls each.
• Will hold up to 3 wire reels of 200mm diameter.
• Automatic detection of the torches when the trigger is pressed.
• Over hanging torch support (x3) and welding helmet.
• Compatible with Push Pull torches (24 V).
• Compatible with Spool Guns and ideal for aluminium soft wire (AlSi5 / AlSi12).

USER FRIENDLY INTERFACE

• New and simplified interface designed specifically for use by bodyshop staff.
• Colour screen XL to set and control the welding cycle very precisely.
• 2 scroll wheels and 4 buttons to easily navigate through the different menus.
• Complete update of the machine and its programs through a simple USB stick.
• Storage available for up to 500 welding programs for repetitive jobs.

ROBUST AND MOBILE

• Reinforced casing.
• IP23 protection rated.
• Low base suitable for 2 gas bottles (2x4m3).

3 levels of customer interface :

• EASY (simplified module)
• EXPERT (complete module)
• ADVANCÉ (specific applications)
