This item contains the following components:

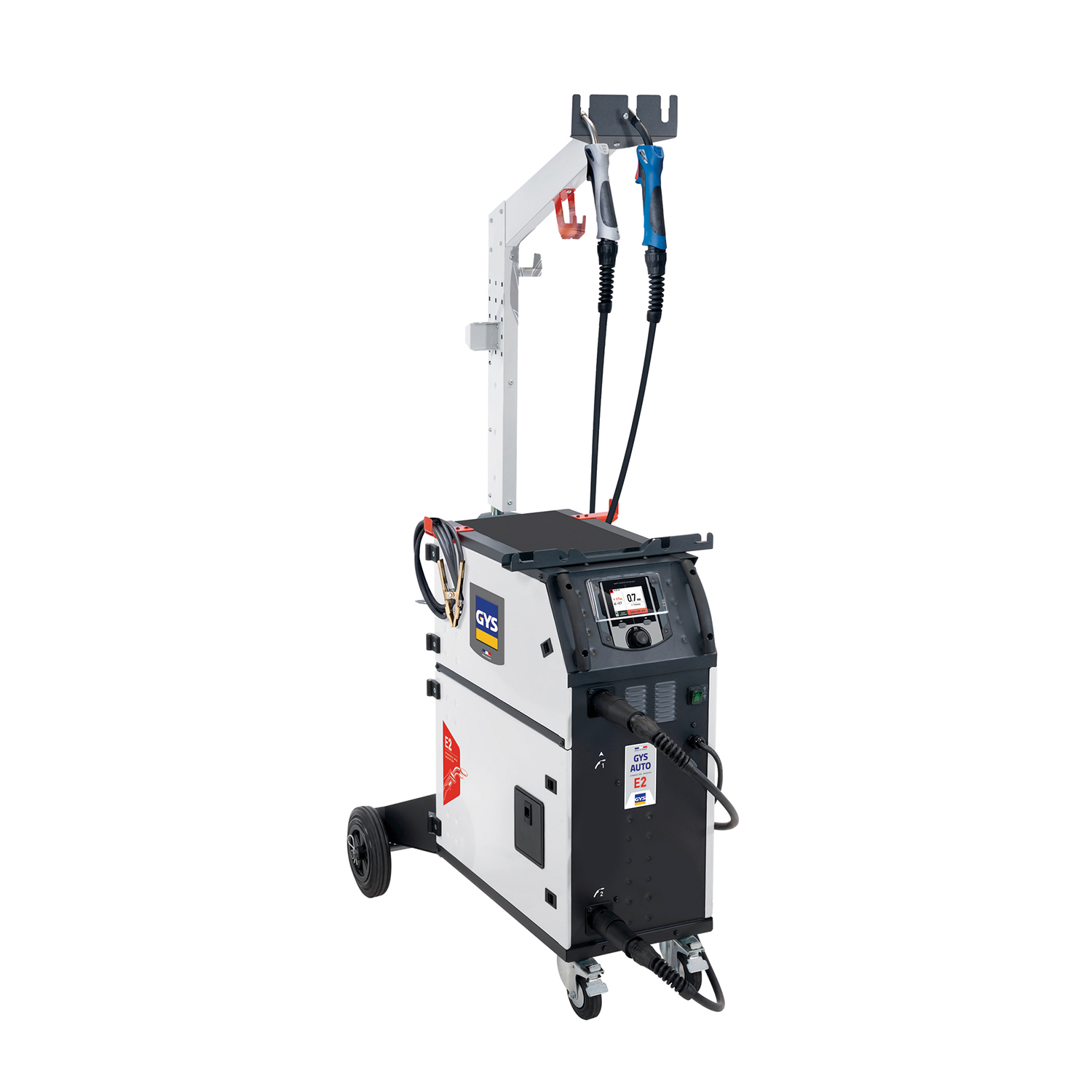

E2 GYS AUTO is a 200 A single-phase synergic MIG/MAG inverter welding machine with 2 integrated wire feeders, specially designed for bodyshops. Equipped with a highly intuitive colour interface, it welds steel and aluminium with great results, even on thin gauge. The integrated synergies also allow for brazing with CuSi3 and CuAl8 wires.
The 2 wire feeders provide versatility, allowing the use of 2 different types and diameters of wire:
- Aluminium wire: Ø 0.8 and 1.0 mm (Ø 1.2 mm, non-intensive welding) Steel and stainless steel wire: Ø 0.6 to 1.0 mm
- CuSi and CuAl wire: Ø 0.8 and 1.0 mm
- Specific synergies for: Steel, AlSi, AlMg, CuSi3, CuAl8, CrNi.
- After entering 3 pieces of data (Easy mode): wire diameter, gas/material combination, and thickness of the workpiece, the product automatically determines the optimal welding
parameters.
- New simplified 3.5’’ HMI designed for use in bodyshops.
- Full machine software and synergy updates available via USB stick. Storage of up to 200 welding programs (Job) for recurring tasks.
- Portability function, allows loading/backup/transport of user JOBS and machine configuration using a USB stick.
- 2 motorised wire feeders with 4 rollers for a smooth and efficient feed.
- 2 compatible wire spools (Ø 300 mm + Ø 200 mm). European torch connection for quick assembly/disassembly.
- Easy, streamlined interface suitable for the vast majority of users to achieve the best possible weld quality.
- 2 welding modes: Weld and Stitch Welding
- 4 settings: Welding material (synergies), wire diameter, workpiece thickness, and arc length.
Expert, display mode for more experienced welders:
- Welding modes: Synergic or Manual
- Trigger response: 2T and 4T
- Tack modes: Spot and Spot-Delay
- Select the main setting to be displayed on the screen
- Full weld cycle settings: Arc length, Choke, Pre-gas, etc.
- Automatic torch detection by pulling the trigger with automatic gas selection.
- Support for 2 gas cylinders 4 m3 (20 L).
- Reinforced wheels for stability and manoeuvrability.
- Support bracket with holder for torches and welding mask.
- Accessory hatch.
