This item contains the following components:

• 1 x GYSPOT EVO PTI S7 6M
• 1 x EVOLUTION BALANCING SYSTEM
• 1 x GYS EVO INSULATED ARM KIT
• 1 x GYRO 360 ARMS C PTI
• 1 x SINGLE SIDE GUN PTI CLAMP
• 1 x GYSPOT PROTECTION COVER
• 1 x AIR 1/4-1/8 REDUCING NIPPLE
• 1 x GYS EQUIPMENT SIGN
• 1 x 3P 4 PIN 32 AMP ANGLE PLUG
• 6 x LONG LIFE CONC. GREEN COOLANT 5LTR

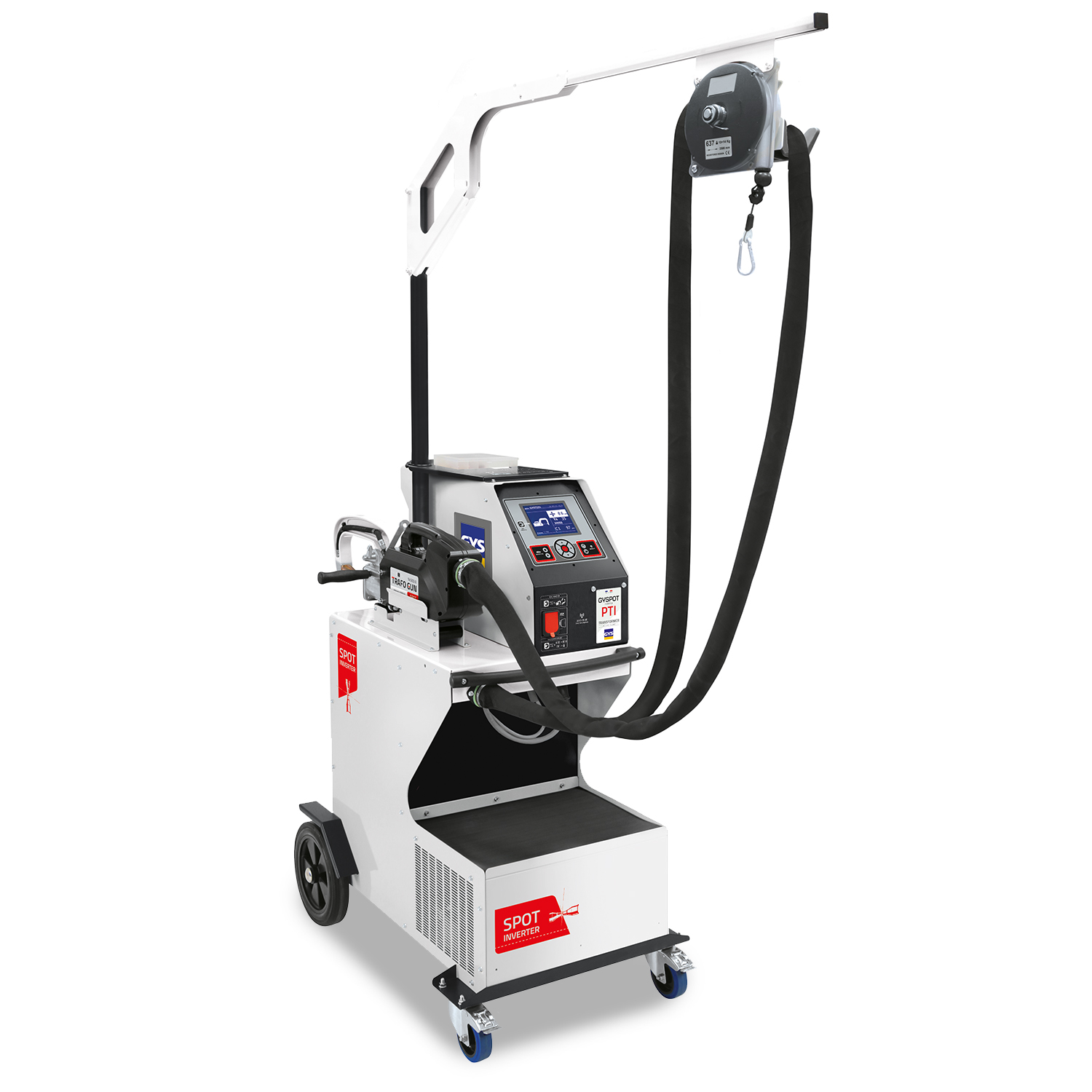

The Gyspot PTI Evolution product is a real advance in the field of spot-welding equipment, with a C-clamp that integrates the latest technologies.

This machine is the ideal answer to the welding requirements of high strength steels (UHSS/boron).

This inverter technology machine also brings a solution to limited power supply issues, as it can operate with 16 Amps to 25 Amps fuses only.

DESCRIPTION

1. Fully Automatic as well as manual function C Gun
2. 14,500 amps welding current
3. Liquid cooled all the way to the welding caps
4. Clamping Force of 550 daN at 8 Bar
5. Remote control on C Gun Handle
6. SD Card for weld quality reporting
7. Low Electrical Consumption

The GYS Evolution PTI-s7 (6m) Automatic Spot Welder is the latest in automatic spot welding technology and has recently been approved by Mercedes-Benz along with many other manufacturers.

Technical specifications

ELECTRICAL CHARACTERISTICS

• Nominal input voltage : U1N 400V 3ph. + Erde 50/60Hhz
• Permanent input current : I1N 25 A
• Power at 50 % duty cycle : S50 20 kVA
• Permanent input power : Sp 14 kVA
• Maximum welding input power : Smax 80 kVA
• Secondary voltage : U2d 7 VDC
• Maximum short-circuit output current : I2cc 14500 A
• Maximum permanent output current : I2P 1 800 A
• Maximum regulated welding current 13 000 A
• Circuit breaker 25 A Kurve D
• Earth Leakage Circuit Breaker 30 mA
• Duty cycle 2%

THERMAL CHARACTERISTICS

• Ambient temperature range +5°C +45°C
• Transport and storage temperature range -20°C +70°C
• Hygrometry 80 %
• Altitude 2000m
• Thermal protection by thermistor on the diodes bridge 70 °C

MECHANICAL CHARACTERISTICS

• Protection rating IP21
• Width 610 mm
• Depth 720 mm
• Height 2260 mm
• Weight 100 kg
• Network cable length 8.000 mm
• Clamp cable length reference : 019614 4.000 mm
• Clamp cable length reference : 020320 6.000 mm

PNEUMATIC CHARACTERISTICS

• Maximum air pressure P1 10 bar
• Liquid flow rate 2L/min
• Minimum regulated force : F min 100 daN
• Maximum regulated force with C clamp : F max 550 daN
