This item contains the following components:

• 1 x GYSPOT EVO PTI S7 6M
• 1 x EVOLUTION BALANCING SYSTEM
• 1 x GYS EVO INSULATED ARM KIT
• 1 x GYRO 360 ARMS C PTI
• 1 x SINGLE SIDE GUN PTI CLAMP
• 1 x GYSPOT PROTECTION COVER
• 1 x AIR 1/4-1/8 REDUCING NIPPLE
• 1 x GYS EQUIPMENT SIGN
• 1 x 3P 4 PIN 32 AMP ANGLE PLUG
• 6 x LONG LIFE CONC. GREEN COOLANT 5LTR

The Gyspot PTI Evolution product is a real advance in the field
of spot-welding equipment, with a C-clamp that integrates the
latest technologies.

This machine is the ideal answer to the
welding requirements of high strength steels (UHSS/boron).

This inverter technology machine also brings a solution to limited
power supply issues, as it can operate with 16 Amps to 25
Amps fuses only.

DESCRIPTION

1. Fully Automatic as well as manual function C Gun
2. 14,500 amps welding current
3. Liquid cooled all the way to the welding caps
4. Clamping Force of 550 daN at 8 Bar
5. Remote control on C Gun Handle
6. SD Card for weld quality reporting
7. Low Electrical Consumption

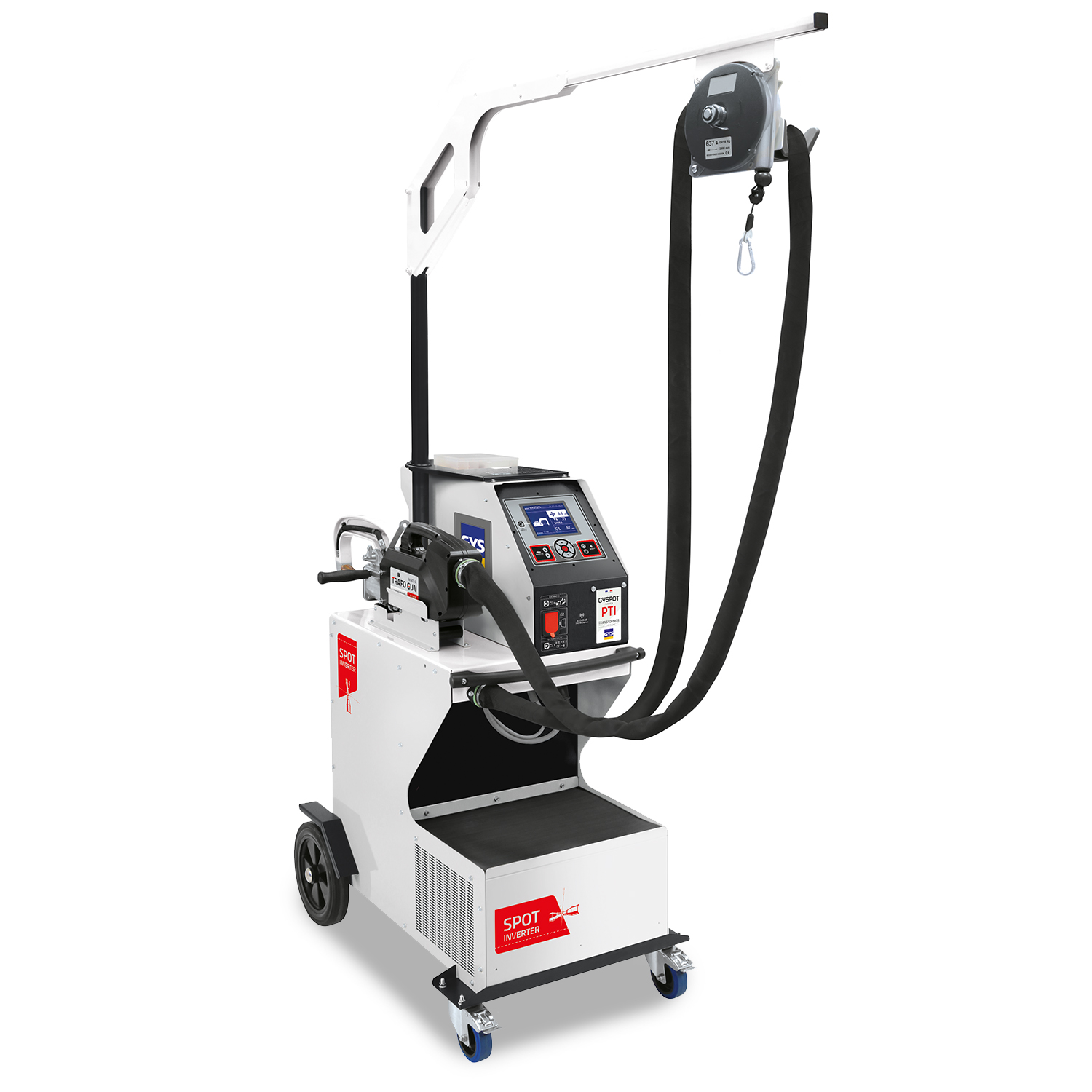

The GYS Evolution PTI-s7 (6m) Automatic Spot Welder is the latest in automatic spot welding technology

and has recently been approved by Mercedes benz along with many other manufacturers.

Technical specifications

ELECTRICAL CHARACTERISTICS

Nominal input voltage : U1N 400V 3ph. + Erde 50/60Hhz

Permanent input current : I1N 25 A

Power at 50 % duty cycle : S50 20 kVA

Permanent input power : Sp 14 kVA

Maximum welding input power : Smax 80 kVA

Secondary voltage : U2d 7 VDC

Maximum short-circuit output current : I2cc 14500 A

Maximum permanent output current : I2P 1 800 A

Maximum regulated welding current 13 000 A

Circuit breaker 25 A Kurve D

Earth Leakage Circuit Breaker 30 mA

Duty cycle 2%

THERMAL CHARACTERISTICS

Ambient temperature range +5°C +45°C

Transport and storage temperature range -20°C +70°C

Hygrometry 80 %

Altitude 2000m

Thermal protection by thermistor on the diodes bridge 70 °C

MECHANICAL CHARACTERISTICS

Protection rating IP21

Width 610 mm

Depth 720 mm

Height 2260 mm

Weight 100 kg

Network cable length 8.000 mm

Clamp cable length reference : 019614 4.000 mm

Clamp cable length reference : 020320 6.000 mm

PNEUMATIC CHARACTERISTICS

Maximum air pressure P1 10 bar

Liquid flow rate 2L/min

Minimum regulated force : F min 100 daN

Maximum regulated force with C clamp : F max 550 daN
