This item contains the following components:

• 1 x CLIPSAL 1P 3PIN 15A HD PLUG
• 1 x M1 GYS AUTO MIG 240V (NO REGULATOR)
• 1 x ARGON TWIN GAUGE REGULATOR
• 1 x G3Si1 / ER7OS-6 STEEL MIG WIRE 0.8MM x 15KG ON A 300MM SPOOL

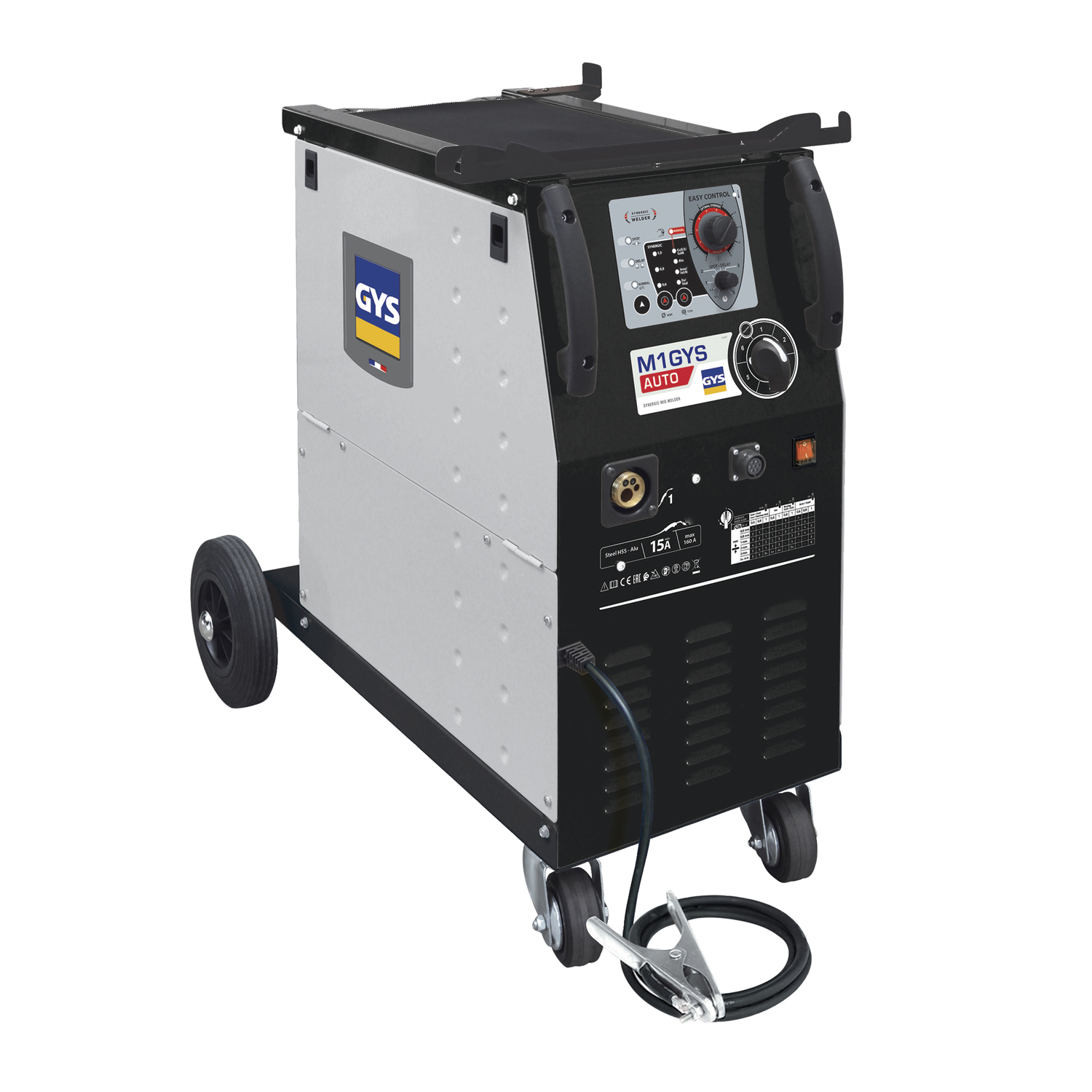

The M1 GYS AUTO is a Synergic single phase MIG-MAG welding machine.

Ideal for car body repairs, it is recommended for welding steel, stainless steel, aluminium and for MIG Brazing of high-tensile

strength steels (with CuSi3 and CuAl8 wires).

Synergic Mode:

• The machine determines the optimum wire
speed by selecting :
- the type of wire
- the wire diameter
- the welding current

4 Drive rolls motor:

• Suitable for 5kg/ø200mm and 15kg/ø300mm wire reels.

Saving welding parameters:

Memory save feature for each torch and activation of the ‘last
used’ welding parameters (wire diameter, wire type & mode).

3 Welding modes available:

- Standard (2T)
- Spot
- Delay

Upgradeable - the M1 GYS AUTO can be fitted with a Spool Gun torch. This motorised
torch is suitable for 1kg/ø100mm wire reels of aluminium, stainless steel, copper and
steel in ø0.8mm.
• Ideal for soft wire such as the AlSi5 or AlSi12 (recommended for car body repairs)
• Ease of use : adjusting the wire speed on the Spool Gun torch directly.

Accessories:

Delivered with:
1 torch 150A - 3m
1 earth clamp 200A - 3m
