This item contains the following components:

• 1 x CUSI3 MIG WIRE 0.8MM x 5KG ON A 200MM SPOOL
• 1 x CLIPSAL 1P 3PIN 15A HD PLUG
• 1 x M3 GYS AUTO WITH ACCESSORIES 230V ( NO REGULATOR )
• 2 x ARGON TWIN GAUGE REGULATOR
• 1 x ALMg5 ALUMINIUM MIG WIRE 0.8MM x 0.5KG ON A 100MM SPOOL
• 1 x G3Si1 / ER7OS-6 STEEL MIG WIRE 0.8MM x 15KG ON A 300MM SPOOL

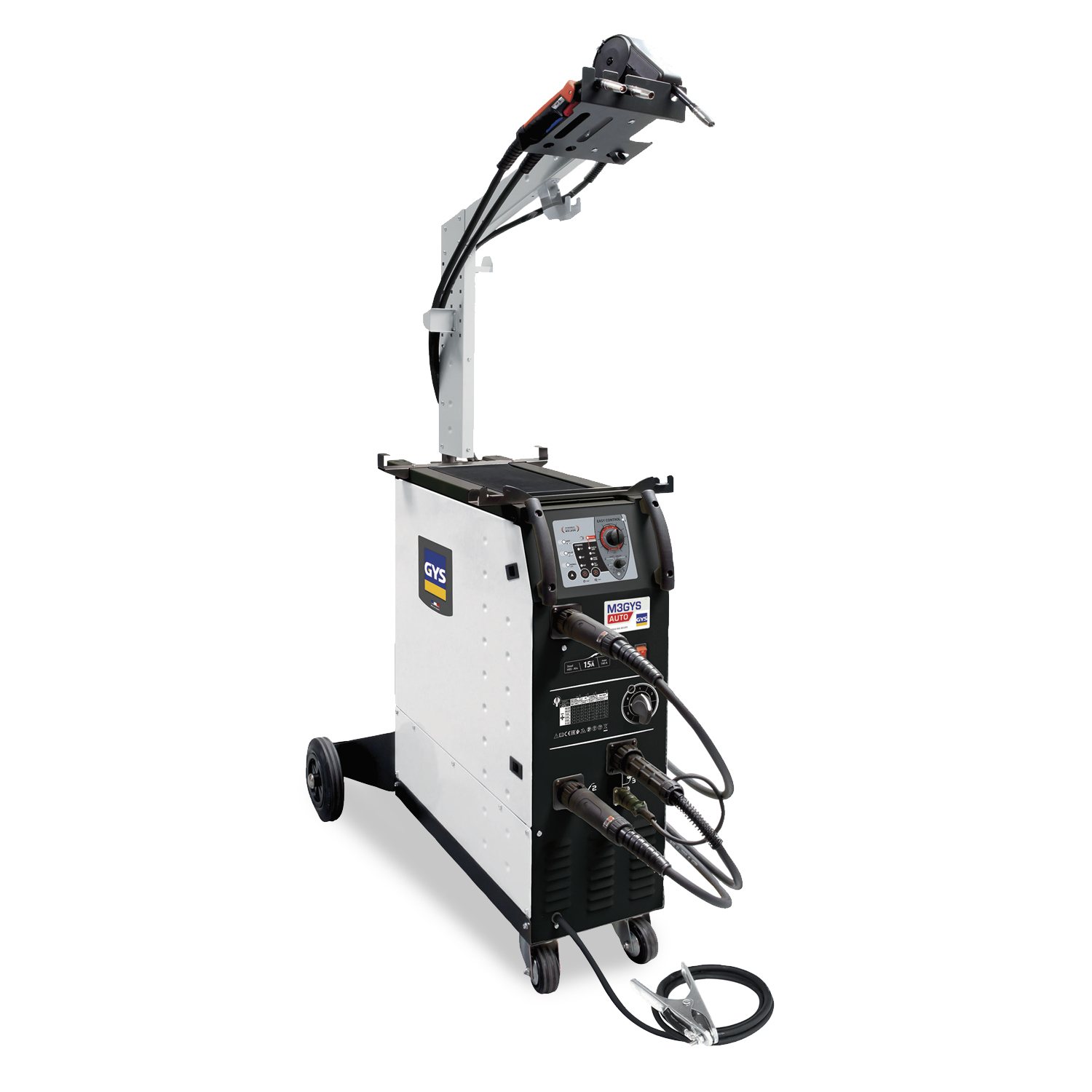

The M3 GYS AUTO is a Synergic single phase MIG-MAG welding machine with 3 torch connectors.
Ideal for car body repairs, it is recommended for welding steel, stainless steel, aluminium and for
MIG Brazing of high-tensile strength steels (with CuSi3 and CuAl8 wires).

Synergic Mode:

• The machine determines the optimum wire
speed by selecting :
- The type of wire
- The wire diameter
- The welding current

Spool gun:

The M3 GYS AUTO is delivered with a Spool Gun torch. This
motorised torch is suitable for aluminium, stainless steel, copper
and steel (contains 1kg/ø100mm wire reels).
• Ideal for soft wire such as AlSi5 or AlSi12 (recommended for
car body repairs)
• Ease of use : adjust the wire speed directly on the Spool Gun
torch.
• The machine is delivered with a balancing system to support
the Spool Gun torch.

4 Drive rolls motor:

• Suitable for 5kg/ø200mm and 15kg/ø300mm wire reels.

Saving welding parameters:

Memory save feature for each torch and activation of the `last
used’ welding parameters (wire diameter, wire type and mode).

2 torches, 2 integrated wire feeders + 1 Spool Gun - The M3 GYS AUTO is a
multifonction and flexible machine designed to weld 3 different types of wire at the
same time. It saves time since it does not require to disassemble the torch and change
the wire reel for another job.
Capable of welding:
• Soft wires: as ALSi and CuAl necessary for welding HLE/THLE metal sheets
• Aluminium wires
• Steel wires

Delivered with :

2 Steel torches 150A - 3m
1 Spool Gun
1 Earth clamp - 3m
1 Balancing system
