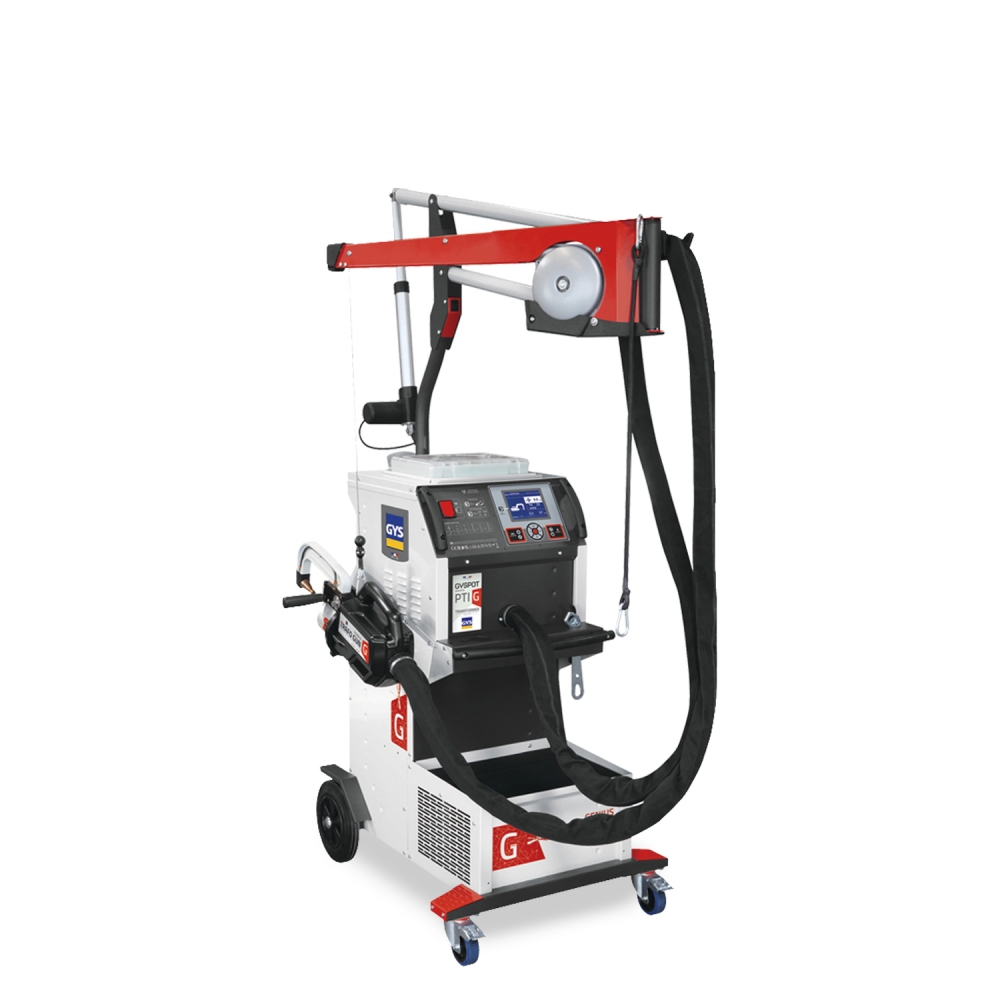

GYSPOT INVERTER PTI.G

As a result of the world leaders' experience, the GYSPOT INVERTER PTI-G is the spot welder of the future.

The onboard intelligence guarantees full automation, offering body shops the ability to increase their efficiency: Genius G-clamp with pneumatic over-opening, easy arm positioning without adjustment, motorised overhanging arm providing a wide working area.

It is the most advanced machine for the active body shop. It is the most advanced machine for the active body shop.

• Light weight of 11.3 kg with the G1 arm.
• 80 mm of automatic opening capacity (20 mm at rest)
• Manual over-opening of the arm for access to difficult areas (200 mm release).
• Brass clamp support and arm-base for an optimal electrical contact (effortless maintenance).
• The double-action feature ensures quick arm removal without the use of tools.
• Automatic cooling connection.
• Remote-controlled clamp (opening, welding, adjustments validation).
• Lockable Gyrosocope, ball bearing, integrated into the clamp body.
• High duty cycle (18 points/min).
• Optional G9 arm is suitable with auto mode.
• Optional single-point gun (option)

ADJUSTABLE OVERHANGING ARM

• Extends 120cm from the power source
• Motorised overhanging arm to adapt to the working height.
• Offset balancer from the work area.
• Rubber protections at the end of moving parts

SMART WELDING

• AUTO Mode: the machine automatically recognizes - steel type, sheet-metal thickness, Panel bond presence, and insulating material between HSS/VHSS/UHSS/Boron sheet-metal.
• Traceability: The recording feature saves the characteristics of each welding spot performed to the SD card provided
• Easy transfer of saved reports to PC.

ROBUST AND MOBILE

• Reinforced and manoeuvrable trolley with 30-litre coolant tank.
• Expander on the front wheels for better stability.
  Integrated 6-arm support

SPECIFICATIONS

•  Welding current: 14 500 A.
•  Clamping force: 550 daN with 8 bar air pressure.
•  Liquid cooling of the entire transformer, rectifier, electrodes, and caps.
•  The new design of the G-clamp cylinder and welding algorithm maximises productivity
•  User-friendly navigation using the 5.7» LCD screen.
•  Automatic adjustment of the pressure between electrodes.
•  Spot count feature to determine when you need to change the caps.
