UVA 2 PREP CURE 4

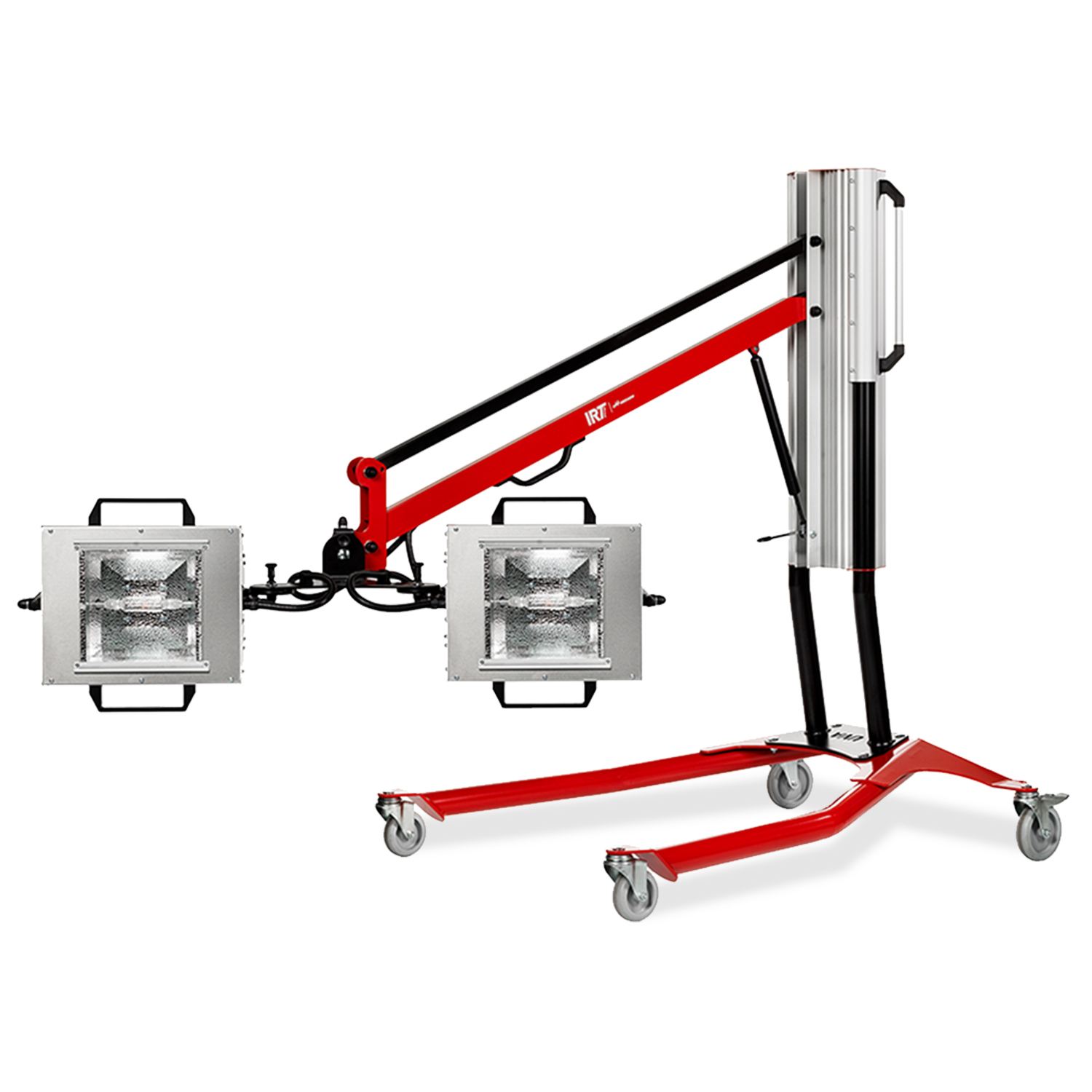

IRT UVA 2 PREPCURE 4

Extremely fast curing with IRT high-intensity outstanding UVA mobiles. A single UVA lamp holds 1000 W. Powerful ventilation and efficient particle filter extends operating life. Ozone-free lamp design with protective glass that filters UVB/UVC radiation. Curing area IRT PrepCure 4-2: 1 x 1,7 m (at a distance of 50 cm with a UV-A intensity of 25 mW/cm2).

EASY TO USE

The curing time is regulated with a digital timer. Powerful ventilation and an efficient particle filter extend operating life and a time counter keeps track of the life length of the UVA lamp.

OUTSTANDING CURING RESULT

Each cassette is equipped with a high-intensity 1000 W UVA lamp and a specially designed reflector for the best reflection of the UVA radiation and a superior radiation distribution over the curing area.

ERGONOMIC DESIGN

Flexible mobiles with ergonomic design for high-intensity UVA curing. Easy to position cassettes and cure the UVA material in minutes. These mobiles reach up to 2240 mm and may e.g. dry the car roof

Frequency - 50 Hz
Power - 2 kW UV-A
Fuse - 10 A
Max. Cassette Height - 2220 mm (88' 2")
Number of Cassettes - 2
Voltage - 230V 1Ph ~/PE

Frequency - 50 Hz
Power - 2 kW UV-A
Fuse - 10 A
Max. Cassette Height - 2220 mm (88' 2")
Number of Cassettes - 2
Voltage - 230V 1Ph ~/PE
