IRT 3-2 PcD HYPERION DRYER

IRT 3-2 PcD HYPERION DRYER
$6,376.00 Ex GST
no-stock
Code: IRT32PCD
Brand: IRT Complete Unit
Product Details
IRT 3-2 PcD HYPERION DRYER


Order by:
Estimate Freight

To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

Postcode

Quantity

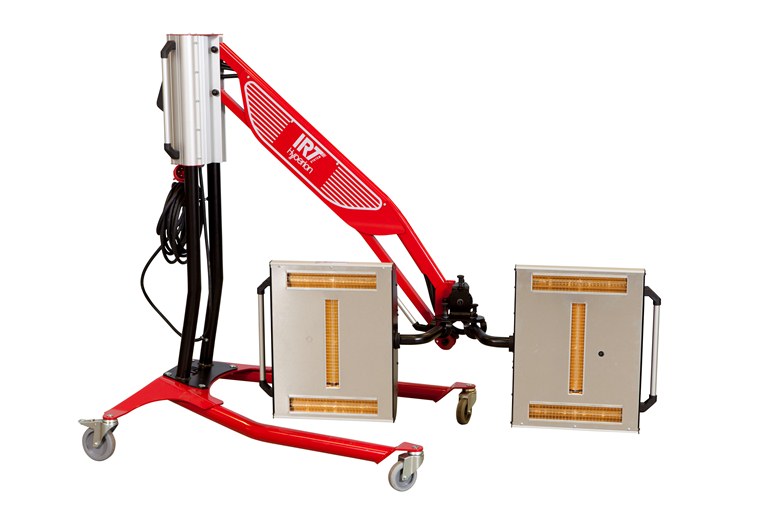

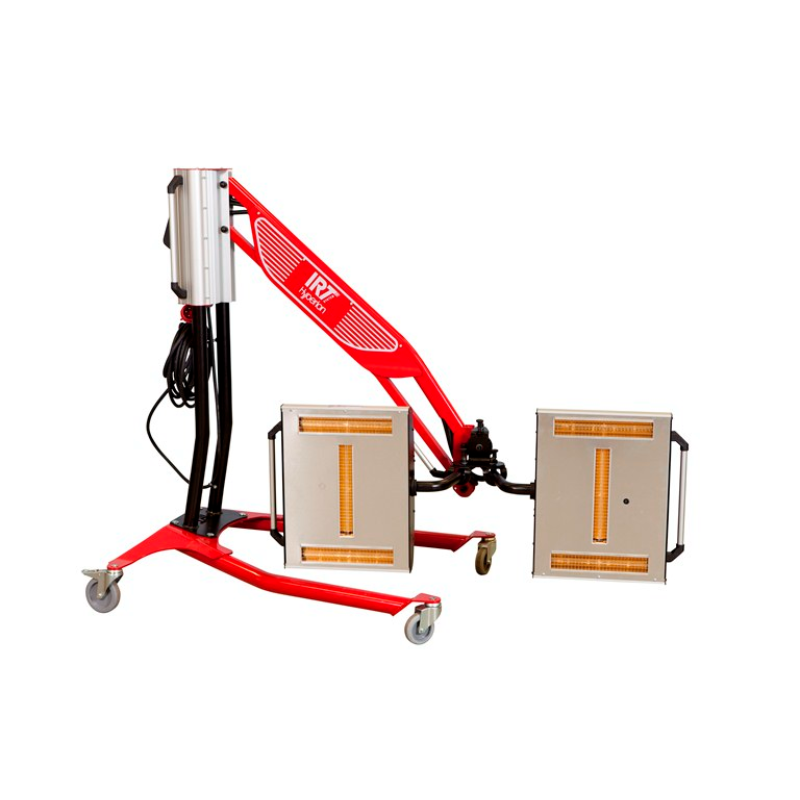

IRT 3-2 PcD

Standard IR dryer IRT 3-2 PcD for all kinds of workshops

The IRT Hyperion IR dryer IRT 3-2 PcD is mostly used for small to medium-sized repairs and for primers, but has sufficient output to cure all kinds of paint materials. With two cassettes this model can dry larger surfaces as well. The IRT 3-2 PcD is possible to use in an IRT Hyperion Rail System, since it has the same curing capacity as IRT-3-20 PcD.

Increased heat distribution, given by using our asymmetric FreeForm reflectors, provides a more even heat distribution implying that a larger area can be cured during the same period.  When only irradiating the object and not heating up the surrounding air, a lot of energy is saved.

Thanks to the special angle of the arm and the advanced design of the foot, curing is possible in places that were previously hard to access. The more advanced IRT Hyperion models reach higher than any other infrared mobile dryers.

These models also have a built-in electronic distance sensor which gives the user a more advanced control of the drying process. The control unit is easy to use and easy to understand.

Facts

  • Two cassettes (6 kW)
  • Unique possibilities to position the cassettes
  • Gold-coated FreeForm reflectors for optimal heat distribution
  • Computerised curing process
  • Electronic distance sensor
  • 12 pre-set and 3 custom programs
  • Can cure all paint materials
  • Smart stand design
  • Efficient particle filter on the cassettes
  • Powerful ventilation that cools the cassette and increases lamp life
  • Also available as a Rail Dryer for IRT Rail Systems
  • Maximum cassette height:
    2,250 mm (horizontal)
    2,550 mm (vertical)

Technical Data


Voltage 220-240 V, 3Ph/PE 380-420 V, 3Ph/PE
Frequency 50-60 Hz 50-60 Hz
Current 15 A 9 A
Output Power 6 kW 6 kW
Fuse 16 A 16 A
