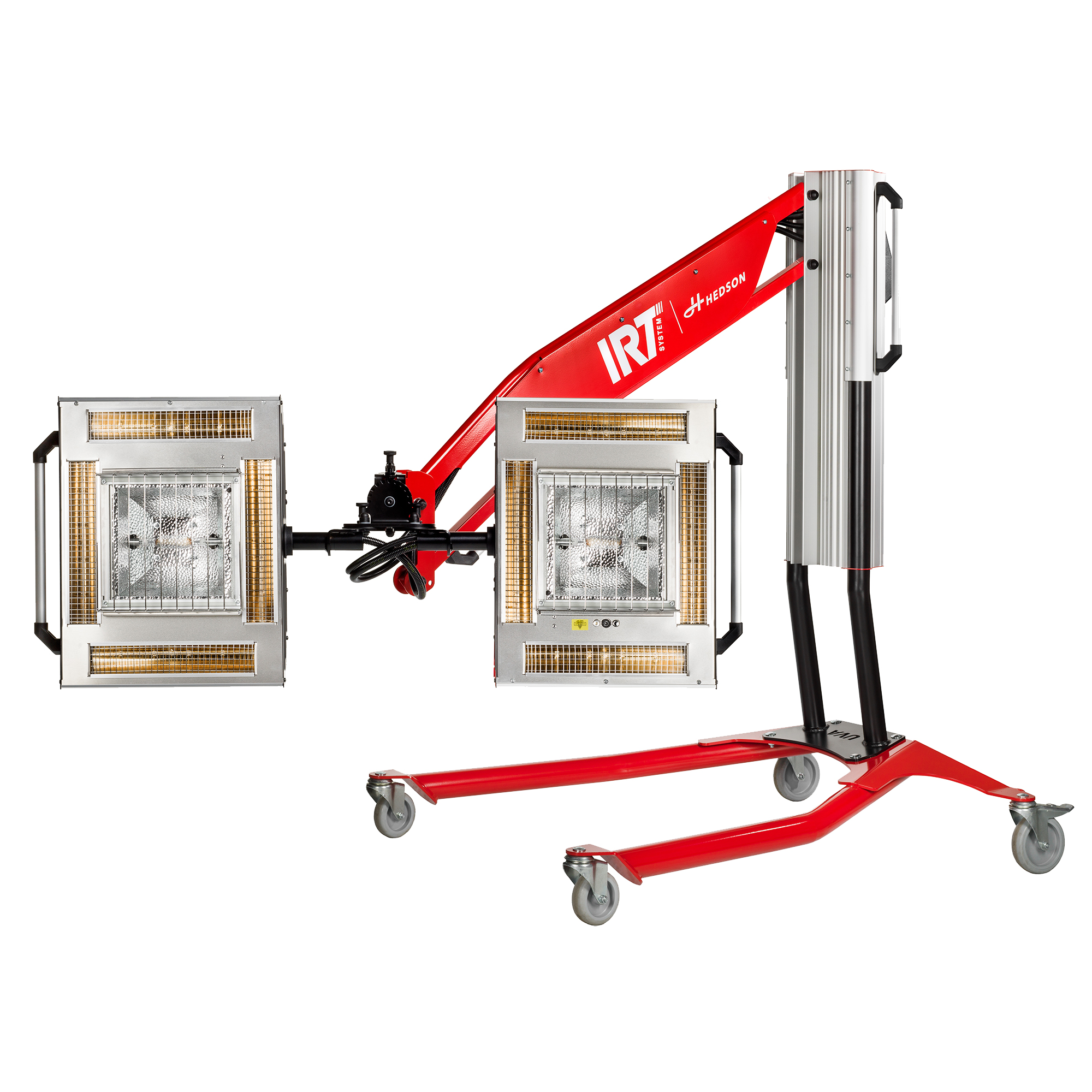

IR/UVA COMBI 4-2 PCAUTO

IRT COMBI IR/UVA 4-2 PCAUTO

The combination of shortwave infrared and UVA radiation makes this mobile dryer unique. One cassette includes 4 IR lamps and 1 UVA lamp. Featured with 15 (IR:12, UV: 3) pre-set programs for water and solvent based paint material, from putty to clear coat.

UNIQUE DRYER

The combination of shortwave infrared and UVA radiation makes this mobile dryer unique. One cassette includes 4 IR lamps and 1 UVA lamp. These mobile UV dryers is featured with 15 (IR:12, UV: 3) pre-programmed programs for water and solvent based paint material, from putty to clear coat.

INCREASED PRODUCTIVITY

IR and UVA can be run individually and in sequence. We are the only company having gold-coated reflectors behind the short-wave lamps. For this reason, our dryers have unsurpassed drying capacity, reflecting up to 98 % of the short-wave radiation, making the dryers the most effective

QUALITY CONTROL

The IRT control unit includes program selection with built-in ramped temperature control for excellent curing result. IR lamps with +20.000 operating hours and UV lamps with time counter ensures high intensity curing every time

SPECIFICATIONS

Frequency: 50 Hz
Power IR: 12 kW UVA: 2,4 kW
Fuse: 16 A
Current IR: 16 A UVA: 6 A
Max. Cassette Height: 2240 mm
Voltage: 380-420V 3 Ph/PE
