IRT 4-2 PcAUTO INFRA RED UNIT

IRT42PC
LOW STOCK
IRT 4-2 PcAUTO INFRA RED UNIT

add remove Product Features

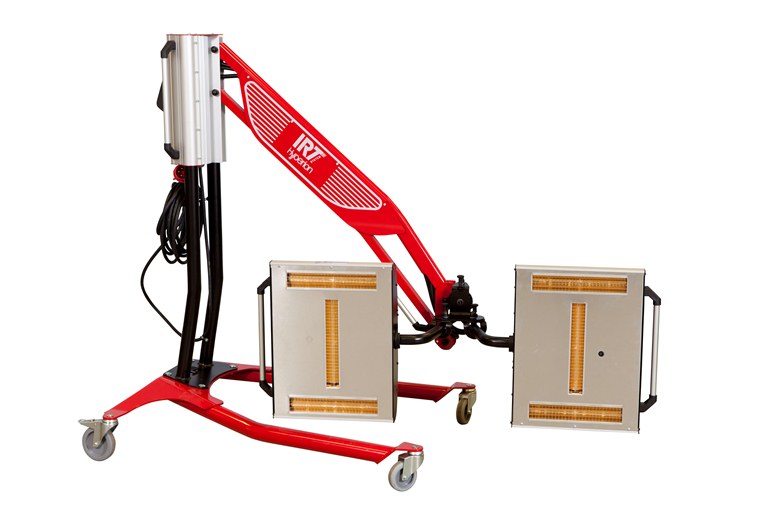

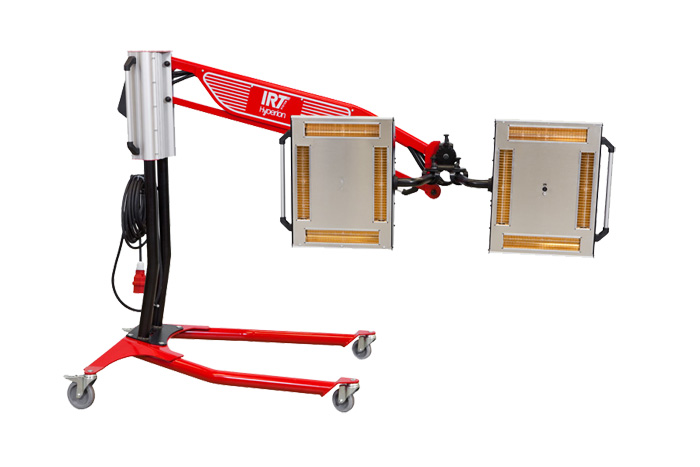

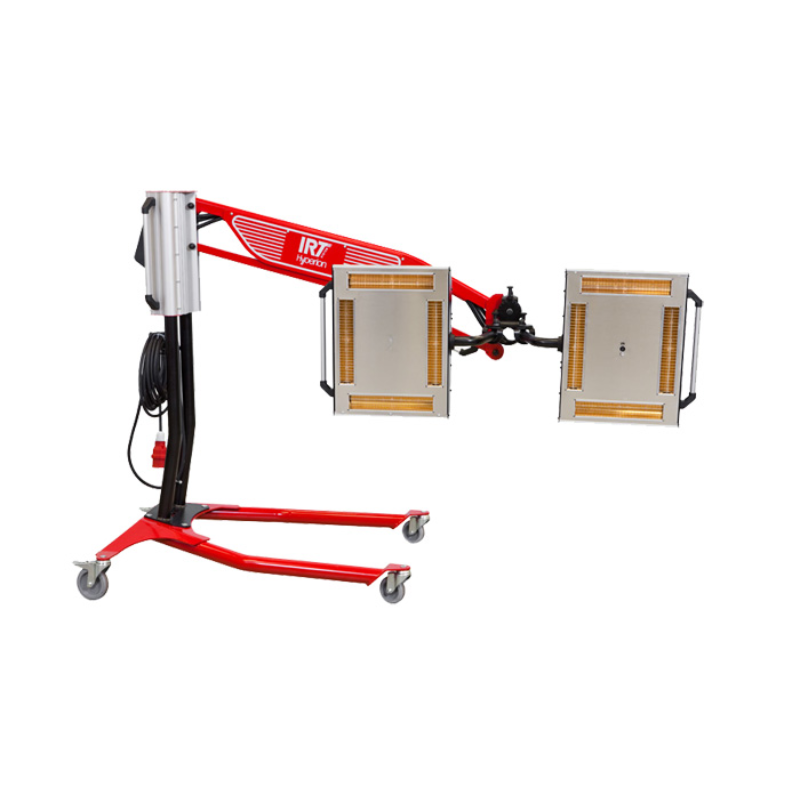

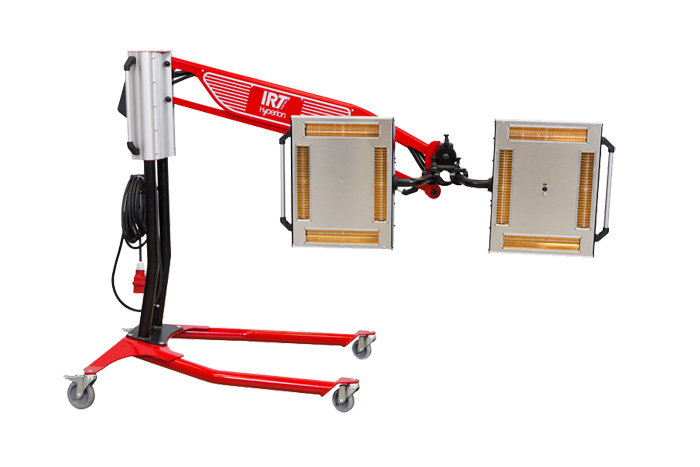

IRT 4-2 PcAuto

IRT 4-2 PcAuto is the most complete mobile infrared dryer with the highest output and capacity

With two powerful cassettes, the IR dryer IRT 4-2 PcAuto is equipped with advanced technology such as a temperature measurement, laser circle and digital distance sensor. The functions on the most advanced IRT Hyperion models are easy to understand and the user has the possibility to integrate the product as a Rail Dryer for IRT Hyperion Rail Systems.

Facts
  • Two cassettes (12 kW)
  • Unique possibilities to position the cassettes
  • Gold-coated FreeForm reflectors for optimal heat distribution
  • Computerised monitoring of curing
  • Pyrometer for exact temperature control
  • Laser circle indicates where temperature measuring takes place
  • Electronic distance sensor
  • 12 pre-set and 3 custom programs
  • Can cure all paint mateirals
  • Smart stand design
  • Efficient particle filter on the cassettes
  • Powerful ventilation that cools the cassettes and increases lamp life
  • Also available as a Rail Dryer for IRT Rail Systems
  • Maximum cassette height:
    2,250 mm (horizontal)
    2,550 mm (vertical)

add remove Specifications

Technical Data


Voltage 220-240 V, 3Ph/PE 380-420 V, 3Ph/PE
Frequency 50-60 Hz 50-60 Hz
Current 30 A 16 A
Output Power 12 kW 12 kW
Fuse 32 A 16 A

add remove Brochure

IRT42PC.Brochure.pdf

add remove TDS

IRT42PC.tds.pdf
