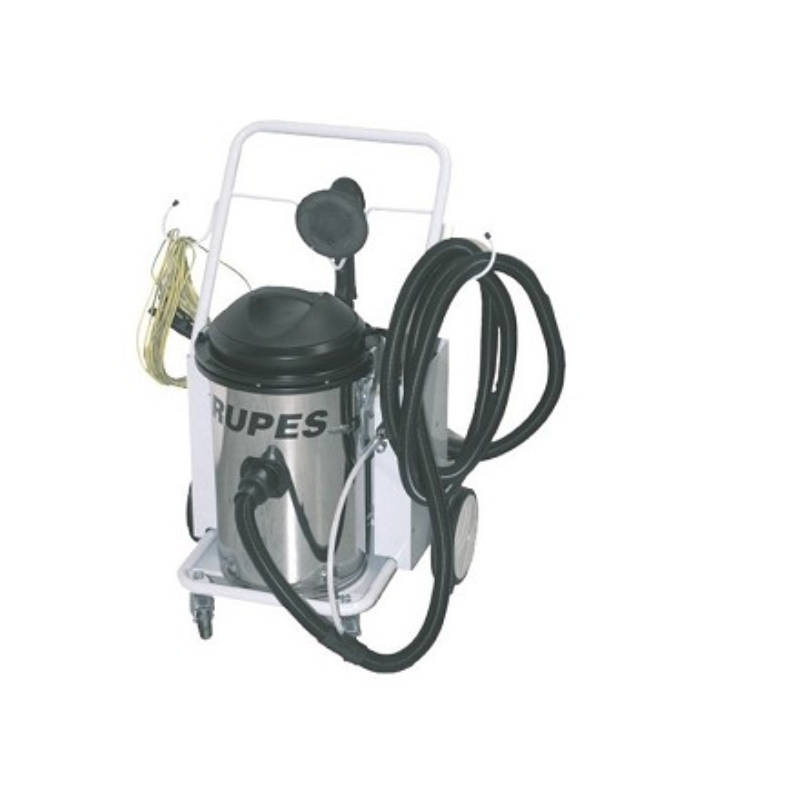

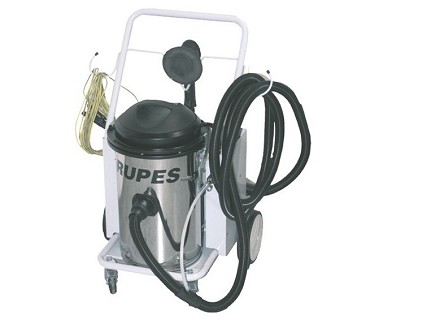

RUPES KX135 ATEX ALUMINUN VAC
RKX135
OUT OF STOCK
RUPES KX135 ATEX ALUMINUN VAC
Features
- Mobile extraction units fitted for connection to an electric or
pneumatic tool
- Pneumatically-powered motor: extraction provided via a Venturi system
- Meets directive ATEX 94/9/CE. Designed for safe working in potentially explosive atmospheres, up to zone 22 (ATEX 99/92/CE)
pneumatic tool
- Pneumatically-powered motor: extraction provided via a Venturi system
- Meets directive ATEX 94/9/CE. Designed for safe working in potentially explosive atmospheres, up to zone 22 (ATEX 99/92/CE)
- Designed for environments classed as zone 22 (ATEX 99/92/CE)
Technical Data
| Working pressure | bar | 6 |
| Service air quick coupling | nr | 1 |
| ATEX Approval | √ | |
| Vacuum nozzle | nr | 1 |
| Capacity bag | kg | 5 |
| Vacuum | mm/H₂O | 1900 |
| Flow capacity | m³/h | 100 |
| Weight | Kg | 30 |
| Max consumption air | l/min | 1000 |
