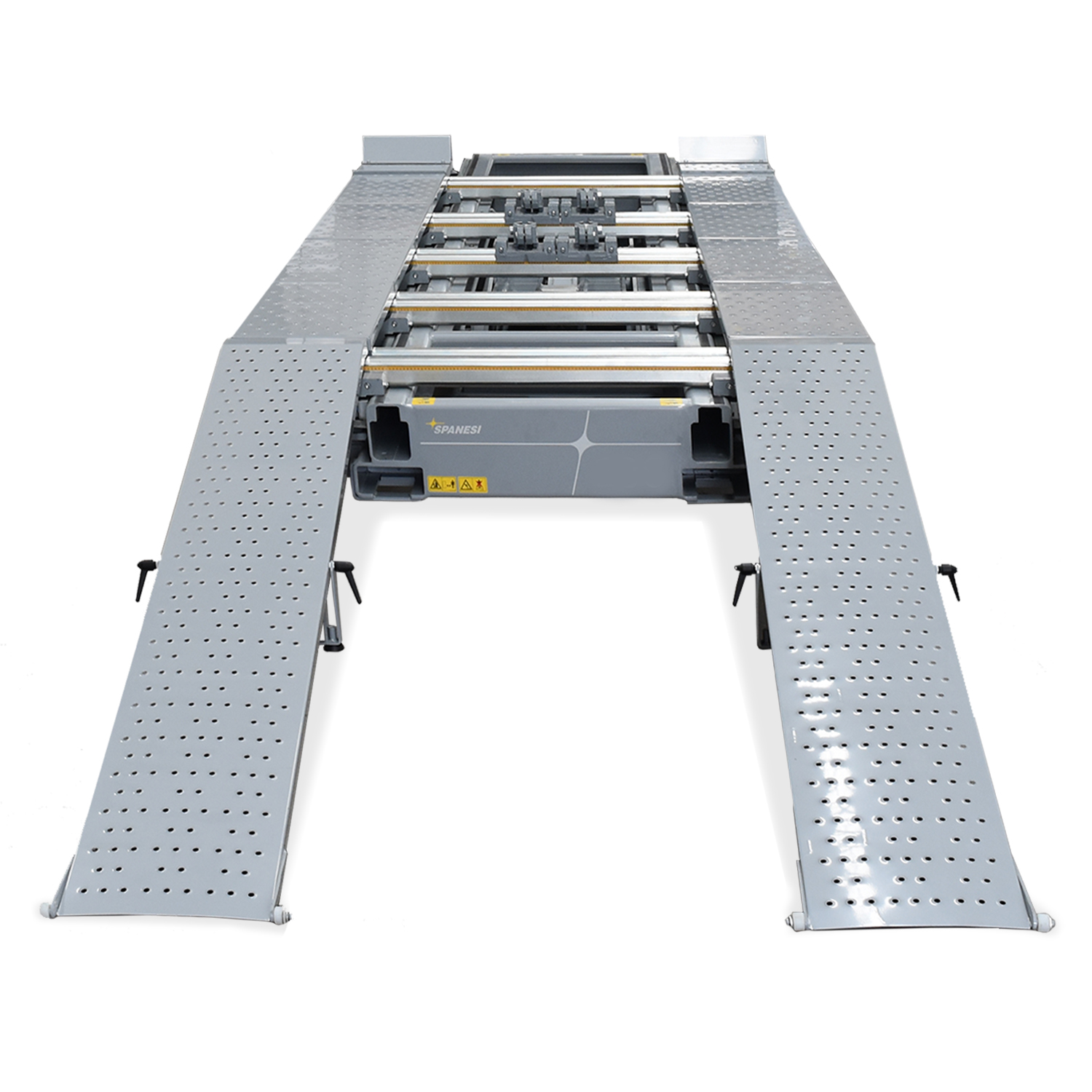

SPANESI 100 T-S BENCH 5M WITH LIFT
Brand: Spanesi Products
Product Details
SPANESI 100 T-S BENCH 5M WITH LIFT
Kit Components
This item contains the following components:
- 1 x LOADING TROLLEY FOR LIFT SERIES 100 WITH SL170
- 1 x BENCH EQUIPPED WITH PANTOGRAPH ELECTRO HYDRAULIC LIFT
- 1 x CONTROL BOX 400V 50HZ 3 PHASE SL170
- 1 x PULLING KIT 10 TON C300
- 2 x STANDARD RH CLAMP SET
- 2 x STANDARD LH CLAMP SET
- 1 x L PULLING COLUMN WITHOUT PULLING KIT
- 1 x RACKS KIT 5M
- 1 x KIT OF ASCENDING RAMPS (NO.2) POSITIONING PLATFORMS (NO.1)
- 2 x CROSSBAR LENGTH 1800mm WITH No.02 SLIDDING SUPPORT
- 3 x JIG CROSSBARS WITHOUT SUPERIOR BLOCKS
SPANESI 100 T-S BENCH 5M WITH LIFT

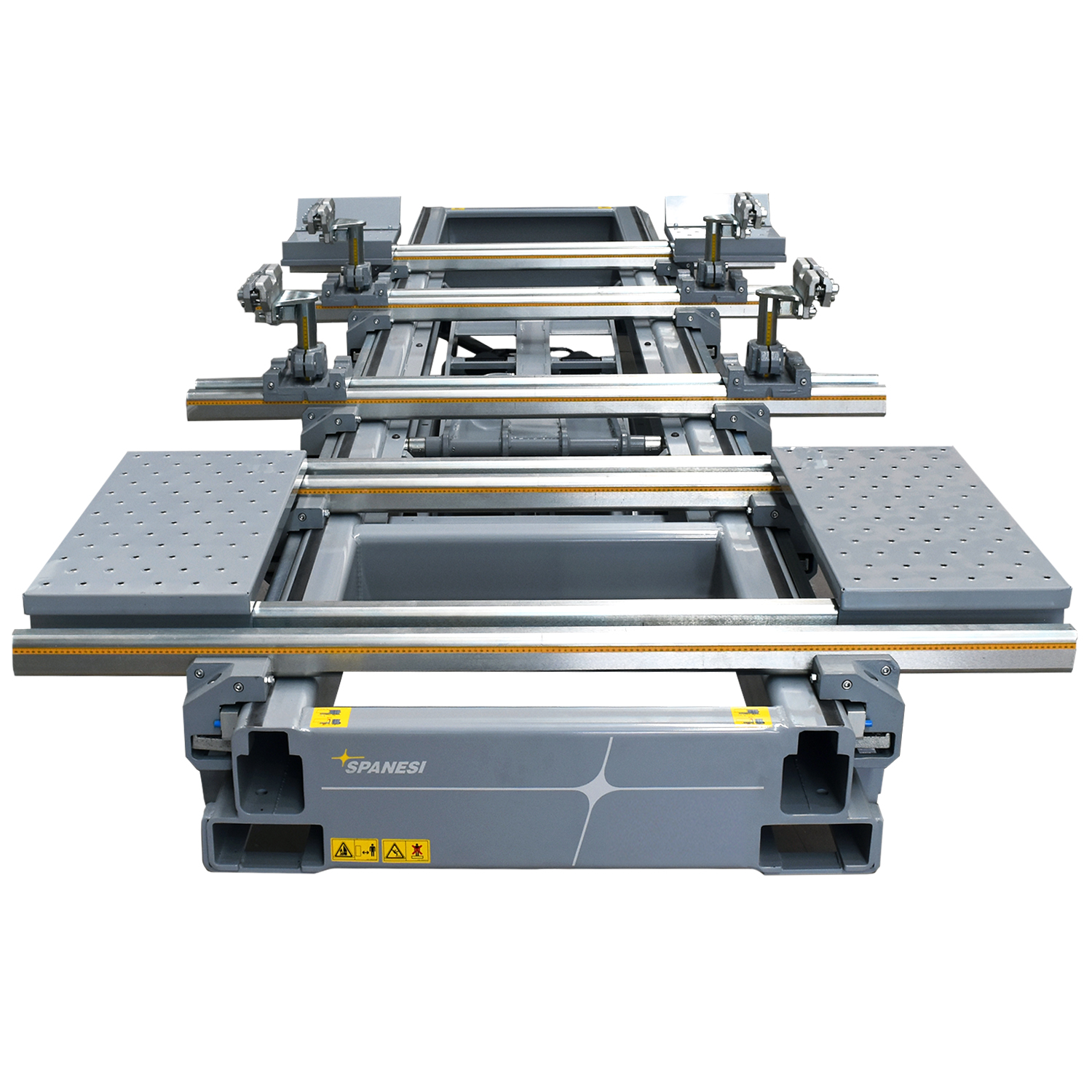

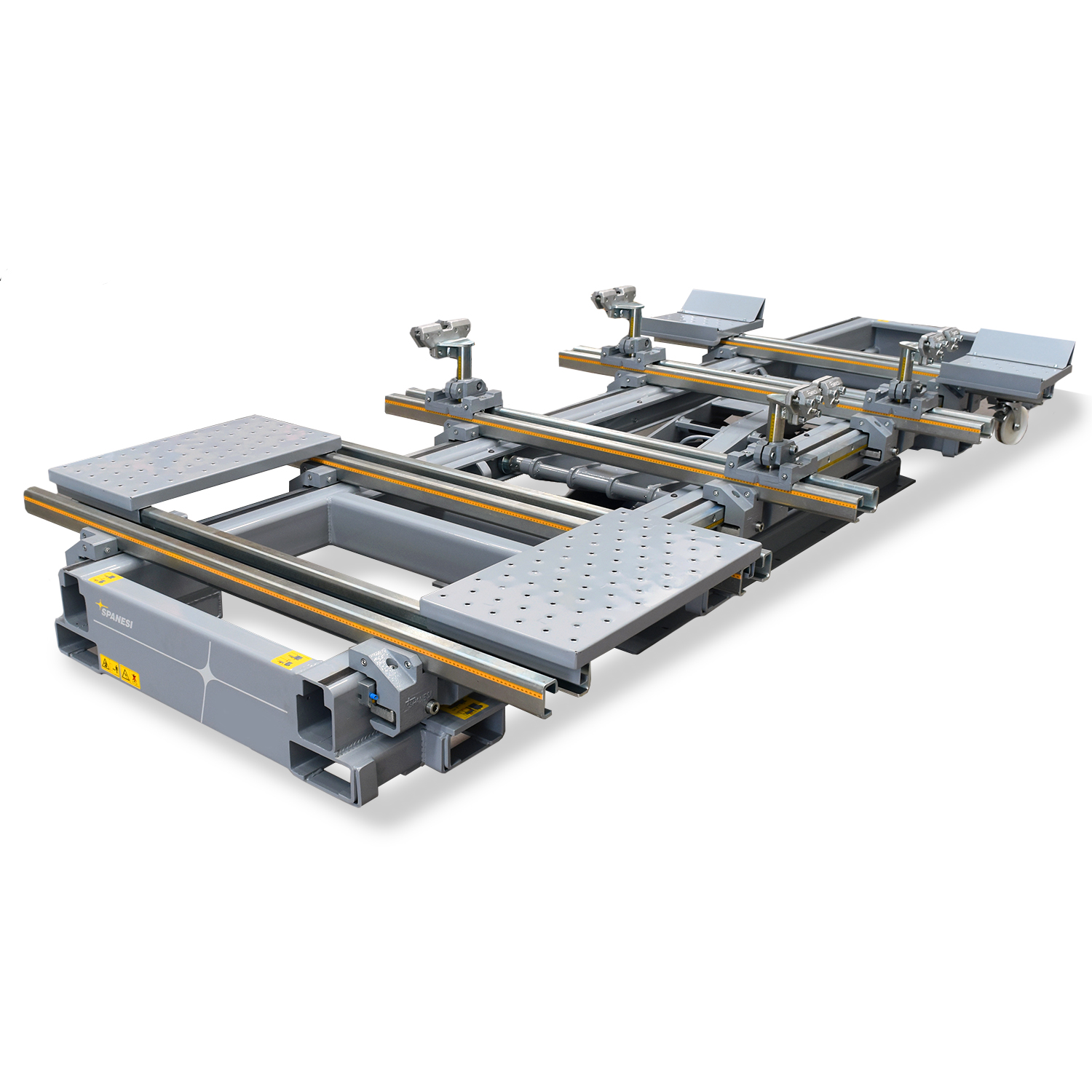

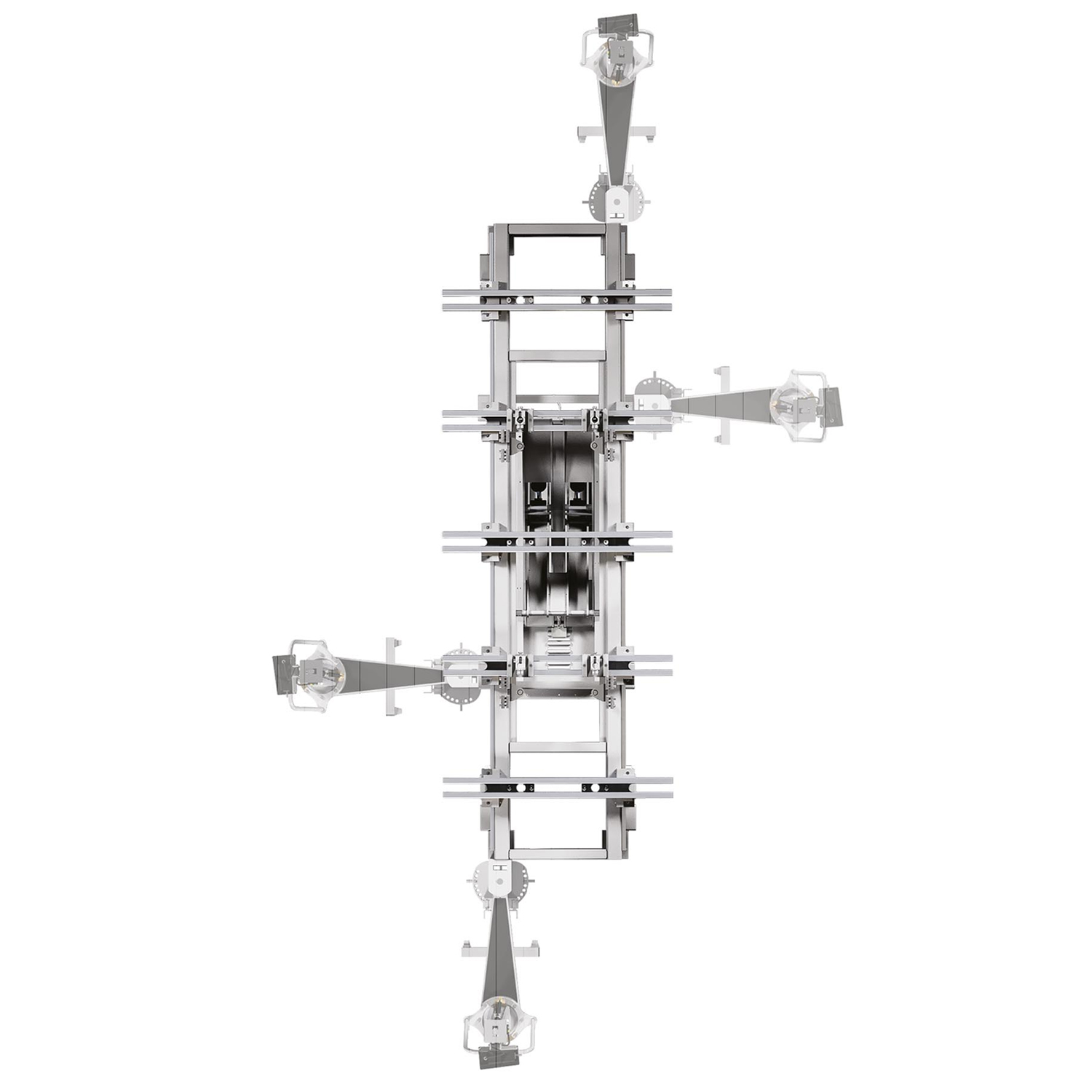

Bench with rack gears
Spanesi’s straightening benches have been designed to stand up to the most intense pulling stresses; this is accomplished through the utilization of the most durable materials available, in order to maintain their performance throughout the years
Lift with control box
Dual-action scissor lift with control box placed outside of the bench.

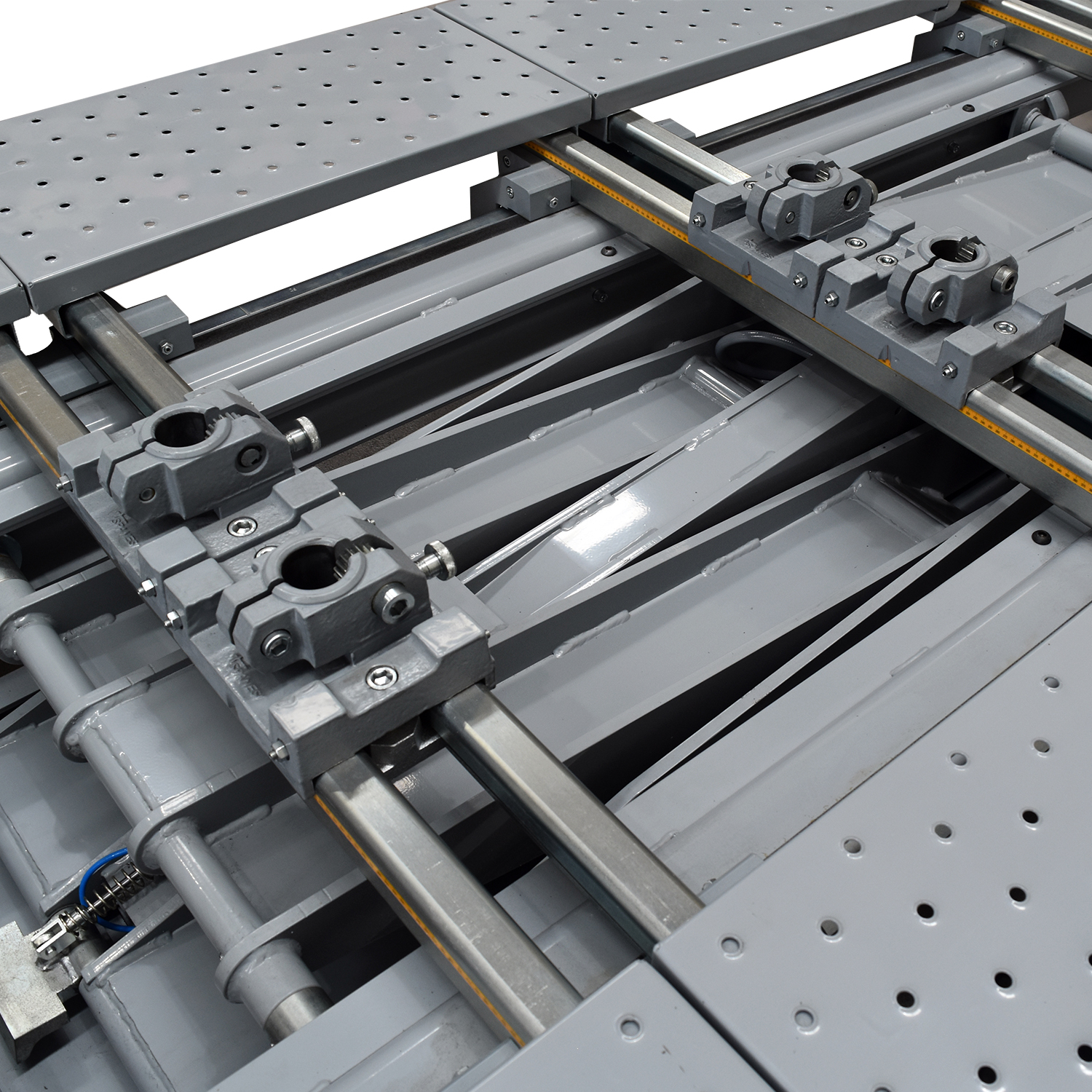

Crossbars
Spanesi’s crossbars are designed to always stay on the bench.

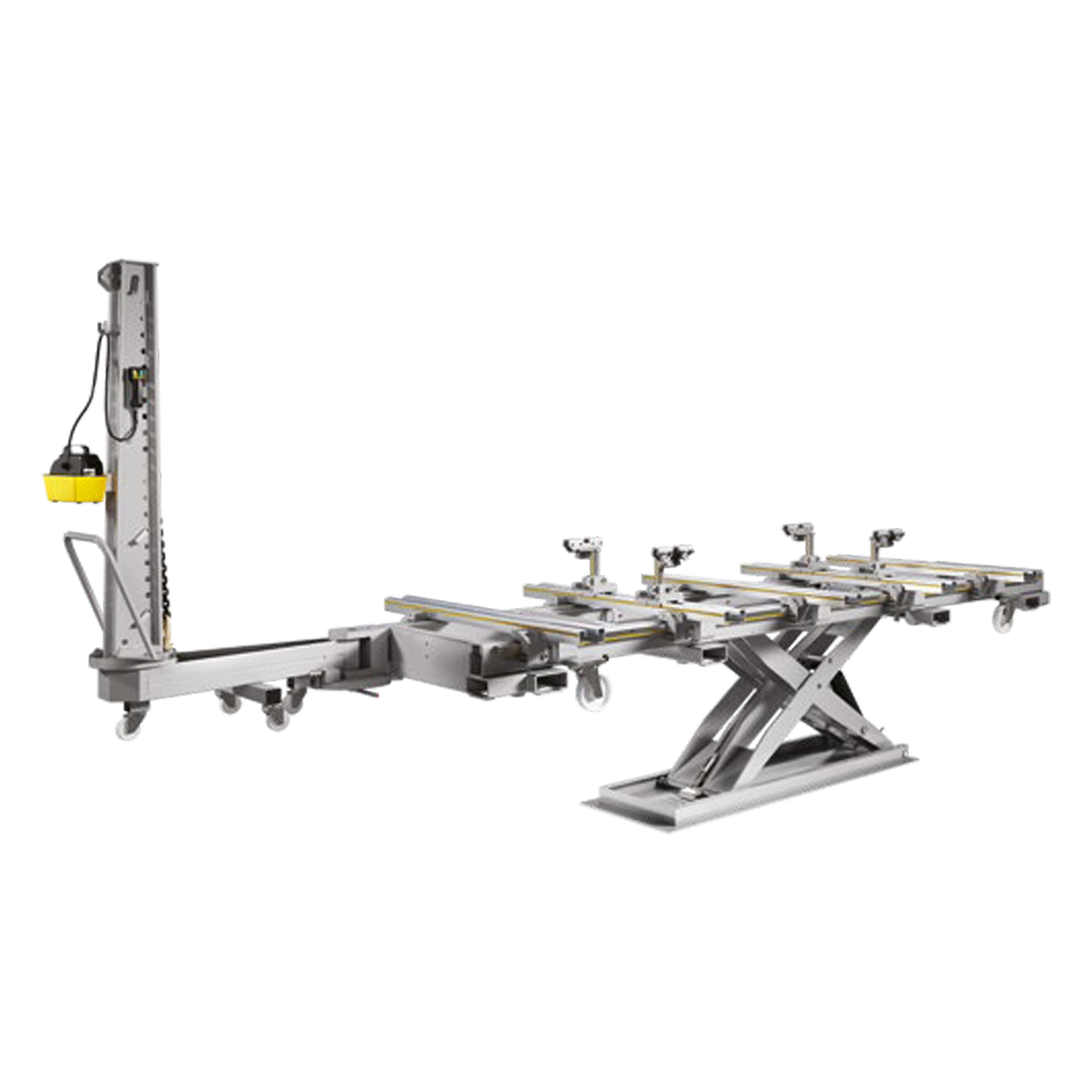

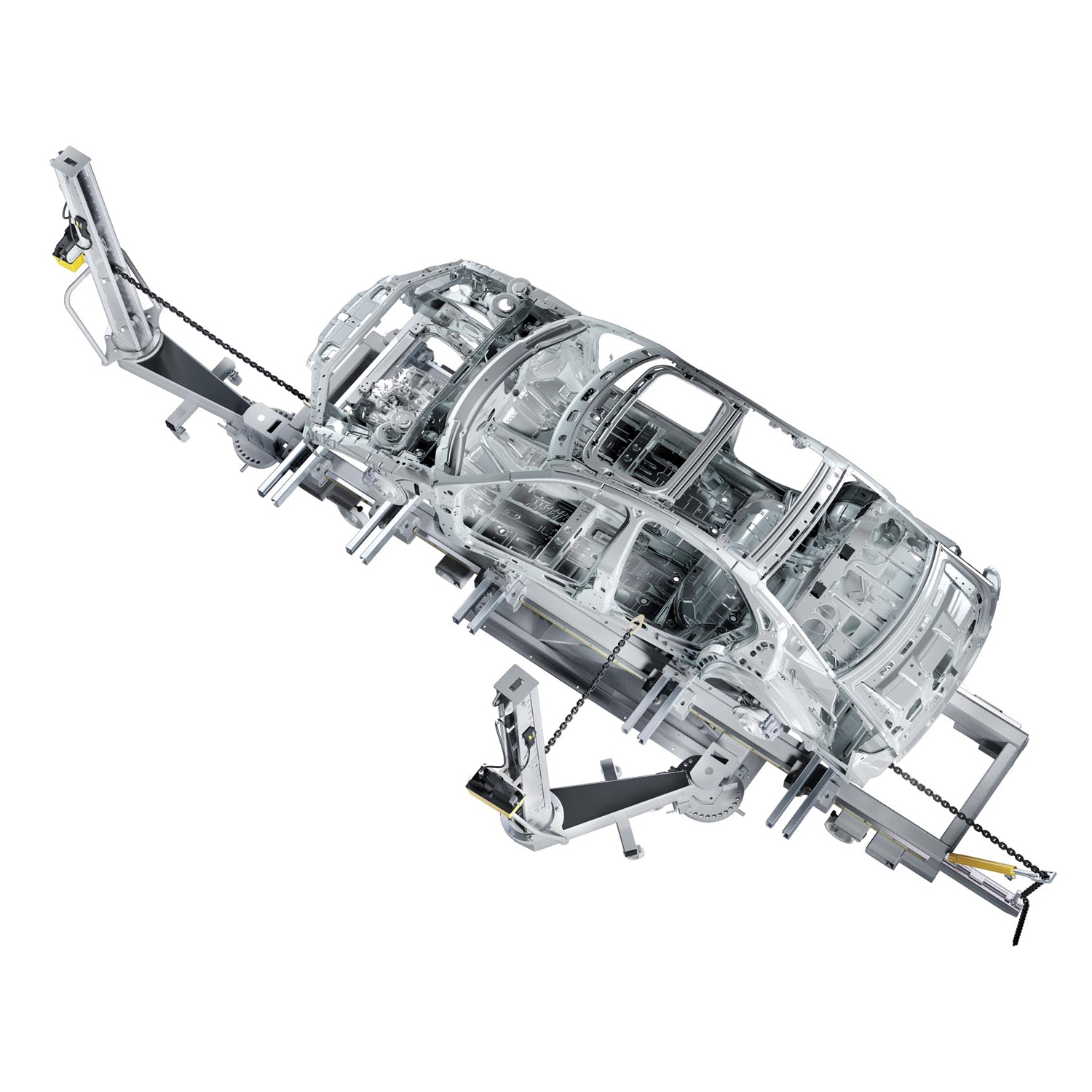

Pulling column
Quickly and automatically locks into the bench without the aid of hammers or spanners. The Pulling Column has a 10-ton direct pulling capacity

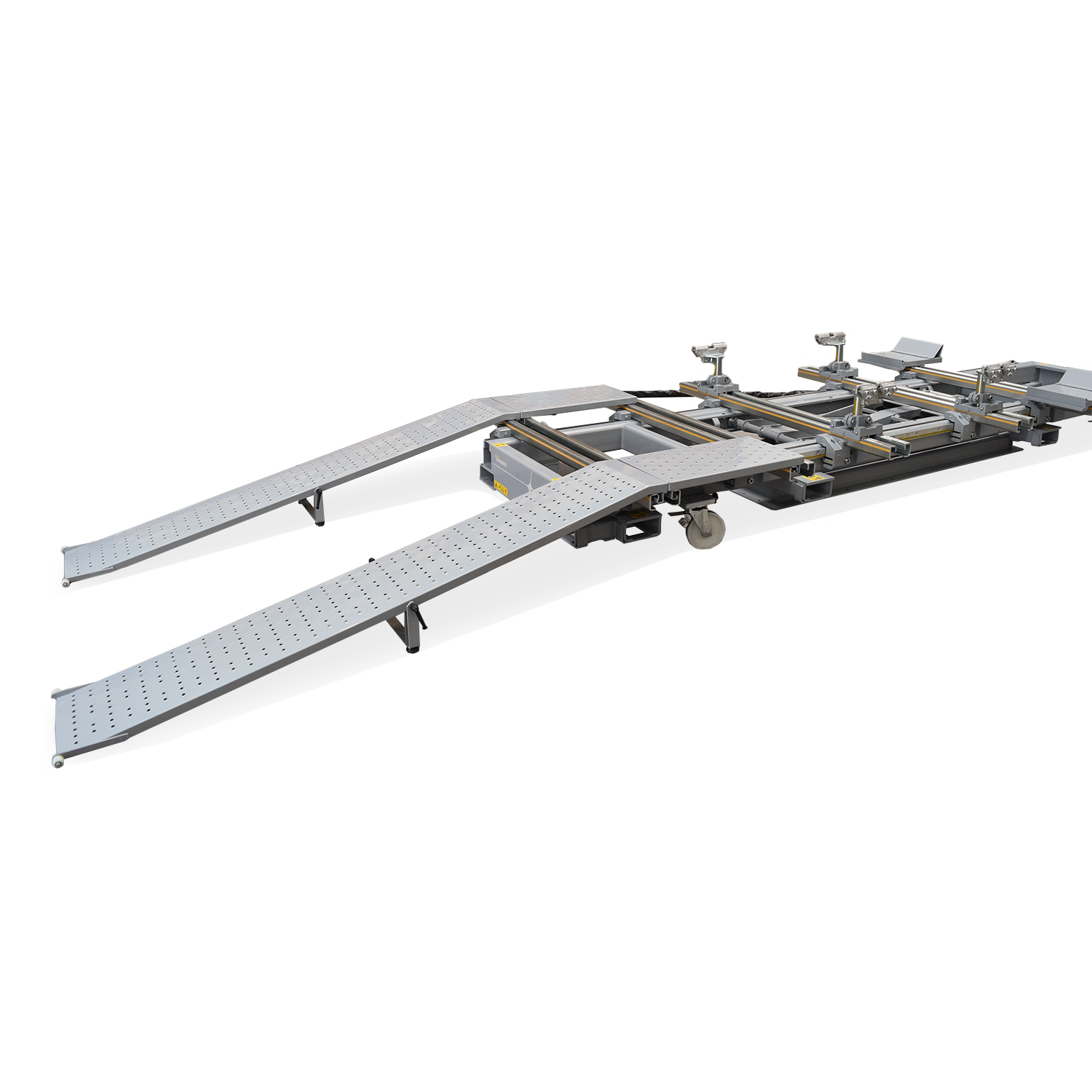

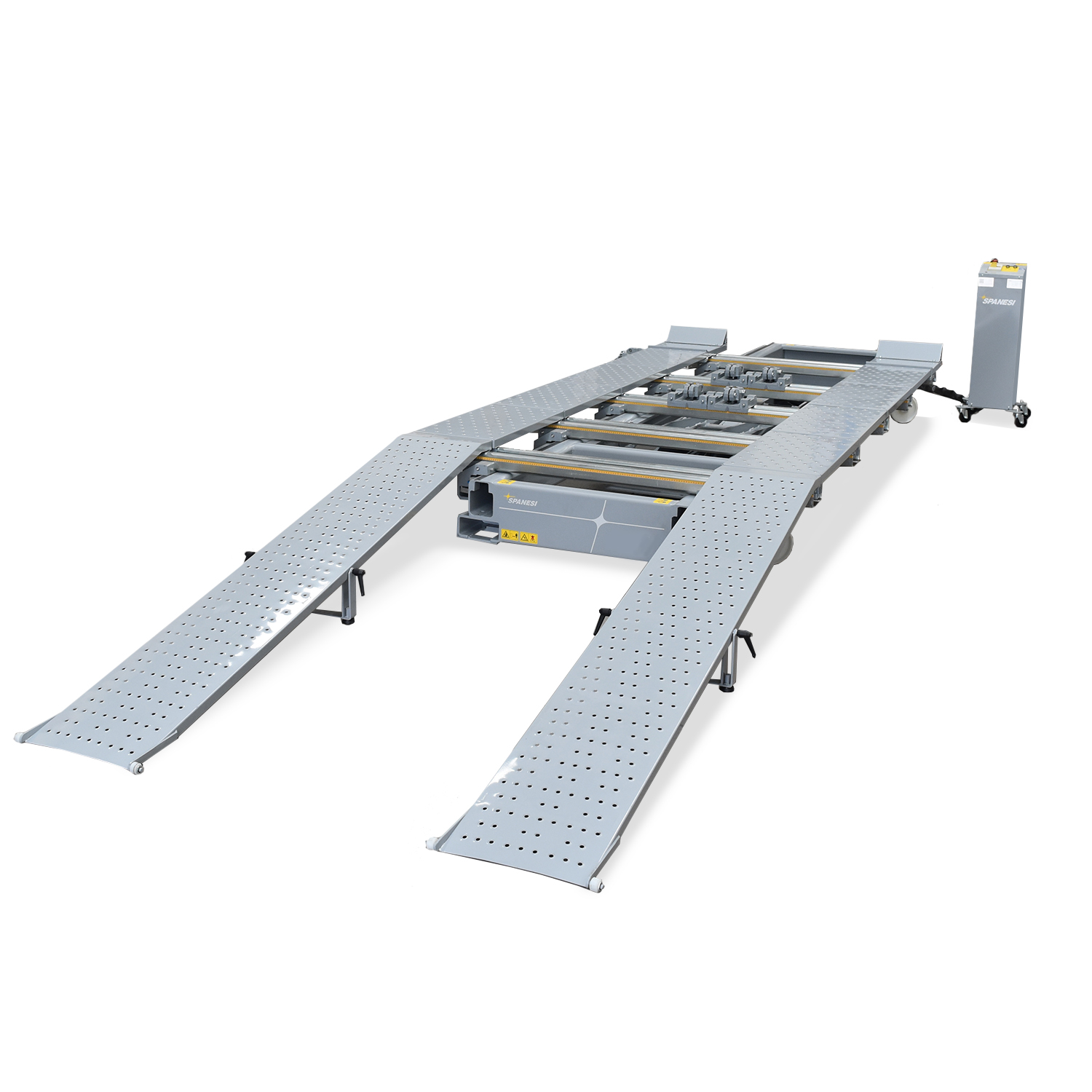

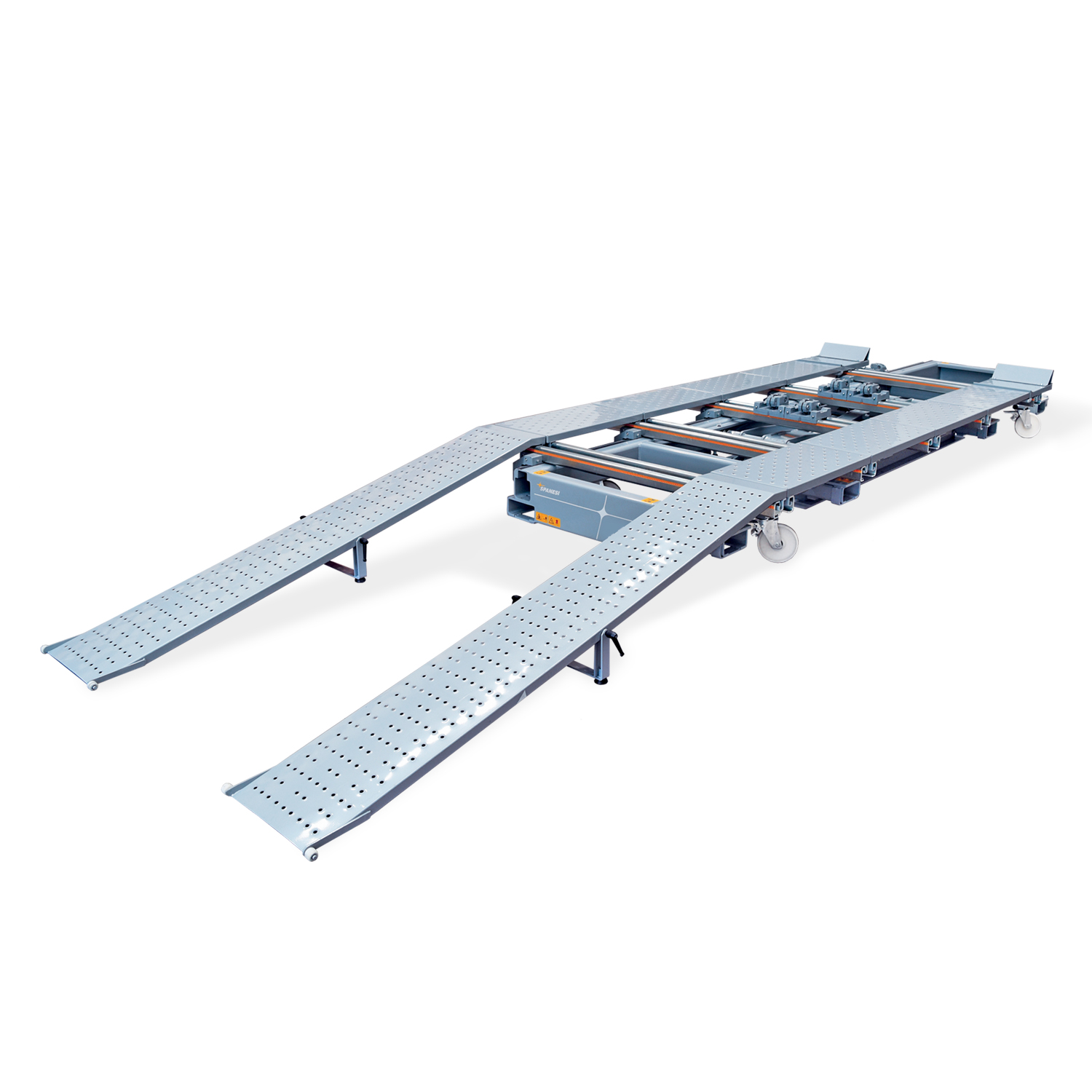

Positioning and ascending ramps
Heavy-duty, removable ramps allowing for easy loading and unloading of the vehicle.
Loading trolley
Allows the vehicle to be perfectly centered on the bench.
Contains:
• Bench with rack gears
• Lift with control box
• Pulling Column
• 5 Crossbars

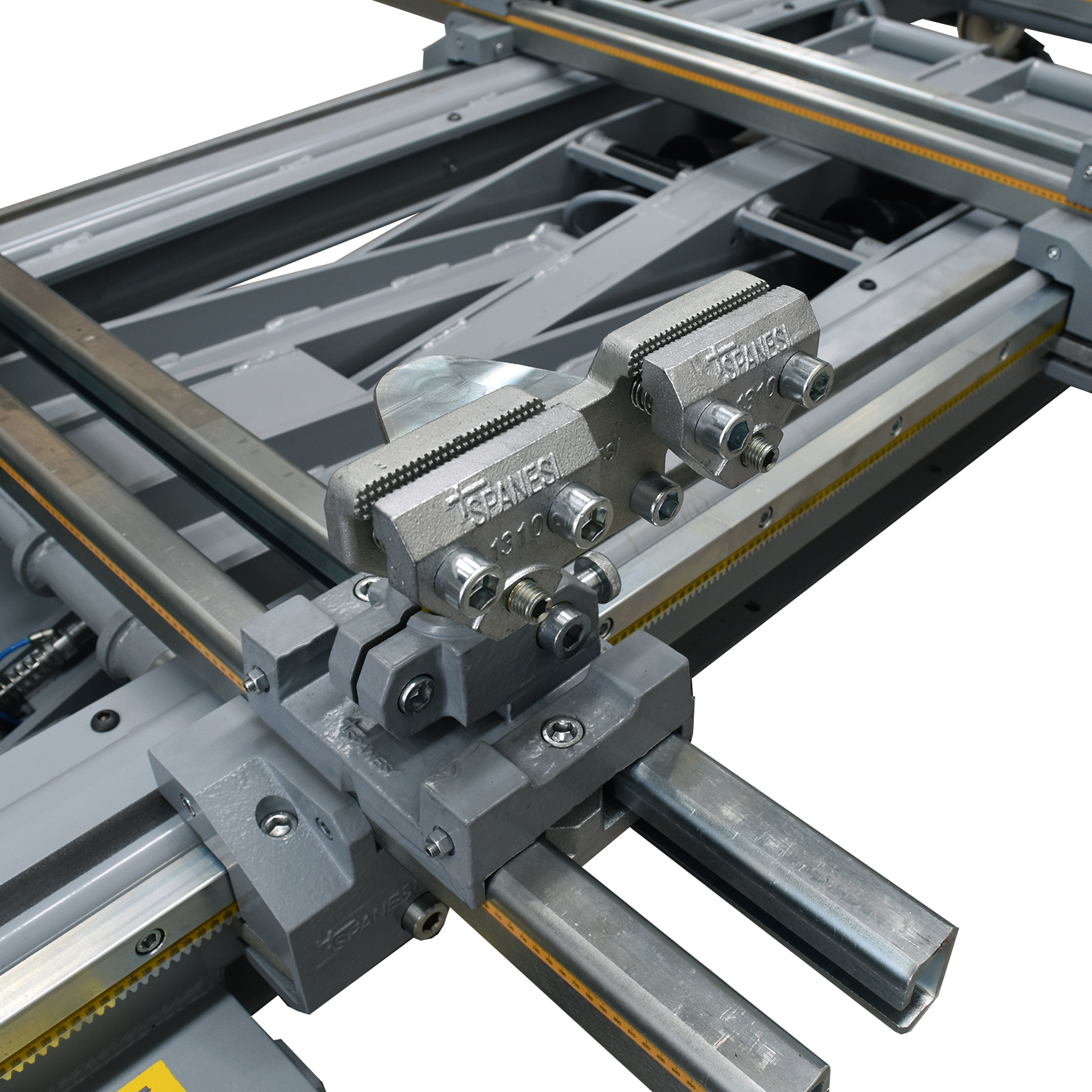

• 4 Universal Clamps
• Loading trolley
• Positioning and ascending ramps
Specifications:
• Load Capacity 5000 Kg
• Length 4-5 Meters
• Width 1,8 Meters
• Lifting Height 1,6 Meters
• Pulling Force 10 Ton
