This item contains the following components:

• 1 x LOADING TROLLEY FOR LIFT SERIES 100 WITH SL170
• 1 x REINFORCEMENT CROSS BAR 2210mm
• 1 x BENCH EQUIPPED WITH PANTOGRAPH ELECTRO HYDRAULIC LIFT
• 1 x CONTROL BOX 400V 50HZ 3 PHASE SL170
• 2 x COMPELETE MOBILE CUBE MOD 1311
• 1 x PULLING KIT 10 TON C300
• 1 x L PULLING COLUMN WITHOUT PULLING KIT
• 1 x DEVISE FOR CHAIN TO PULL DOWN
• 1 x UNIVERSAL JIG (SUPERSTAR) WITH NO.05 BARS LENGTH
• 1 x RACKS KIT 5M
• 1 x KIT OF ASCENDING RAMPS (NO.2) POSITIONING PLATFORMS (NO.1)
• 1 x WALL BEARING FOR PLATFORMS (H.S 84798997)
• 1 x SPECIAL SCREWS KIT FOR JIG COMPELETE WITH SHELVES
• 1 x MCPHERSON MEASURING SYSTEM FOR SHOCK ABSORBER

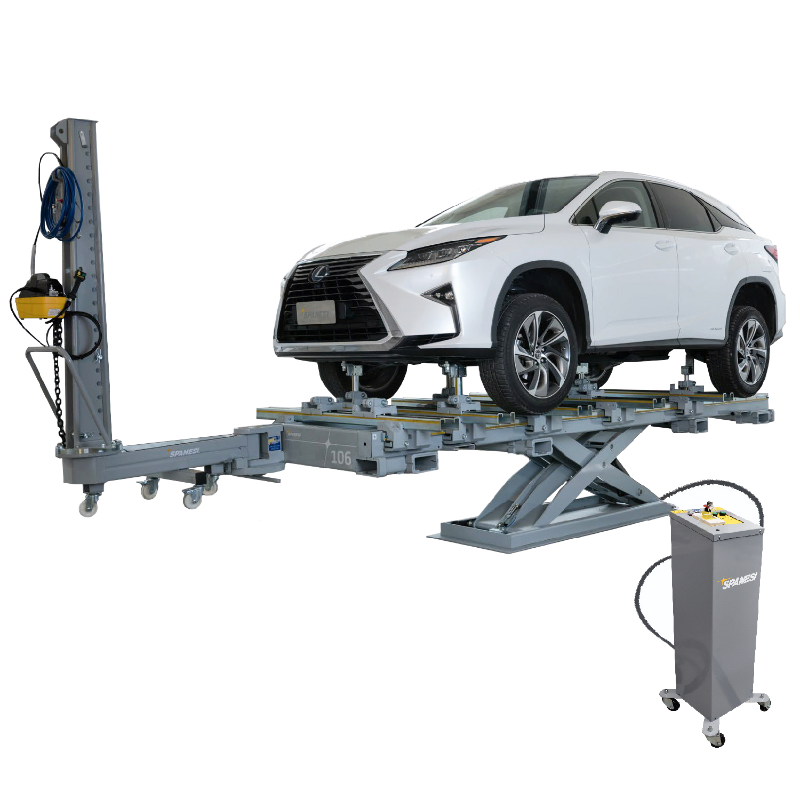

106 Straightening Repair

3D Repair
The Spanesi Universal Jig system is a sophisticated 3-dimensional repair platform that allows restoration of any vehicle back to OEM standards. Throughout the entire process, repairs are precise, accurate and efficient. Length, width and height values are all returned to original specifications. Downward and upward thrusting ensure a complete and efficient repair. No optional equipment is necessary. The movable universal jig trolley contains all of the items needed to repair current and future vehicles.

Repair Back to OEM Standards
- All types of vehicles: Past, present, future.
- All types of damage: Small, medium, large.

Gear Driven Fixtures
Move the vehicle structure up or down at every jig mounting point

Gear Driven Racks
Easy vehicle movement on the bench

Fast, Accurate and Efficient
At the same time: Mounting, pulling, measuring

Complete Fixture System
Repair current and future vehicles Utilizing the provided universal jig system

Winstar Software
The universal jig datasheets are displayed in 3D, thus allowing an easy and intuitive analysis.

- Complete database
- 3D vehicle drawings
- Templates and vehicle profiles
- Twice yearly updates
- Updates available via the Spanesi website

Loading Trolley
Allows the vehicle to be perfectly centered on the bench.

McPherson Measuring System
Easy control of struts and suspension parts. The McPherson Measuring System can also be used on external points (such as door hinges and pillars).

Set Of Special Hardened Bolts
Hardened bolts are provided for anchoring the vehicle during repair procedures.

Adaptors For Aluminum Vehicles
Ergal aluminum adaptors to prevent cross-contamination during repairs to aluminum vehicles.

Gear Driven Rack And Fixtures
Provides smooth and effortless movement of the vehicle from end-to-end on the bench for alignment and straightening processes. Upward pushes and downward pulls are simple to perform and requires minimal physical exertion.

Major Damage And Structural Repair
The 106 is a structural repair workstation that is capable of performing minor to major structural repair operations. The 106 has been designed to stand up to the most intense pulling stresses; this is accomplished through the utilization of the most durable materials available, in order to maintain its performance throughout the years.

Specifications:
Length: 4m
Width With Universal Jig: 1.8m
Lifting Capacity: 5000kg
Lifting Height: 1.6m
Pulling Force: 10 Tonnes
