This item contains the following components:

• 1 x LOADING TROLLEY FOR ( 6M ) 106 BENCH
• 1 x REINFORCEMENT CROSS BAR 2210mm
• 1 x BENCH EQUIPPED WITH PANTOGRAPH LECTRO HYDRAULIC LIFT ( 6M )
• 14 x EXTENSION FOR RAMPS SPANESI 106 BENCH
• 1 x CONTROL BOX 400V 50HZ 3 PHASE SL170
• 1 x PULLING KIT 10 TON C300
• 1 x L PULLING COLUMN WITHOUT PULLING KIT
• 1 x DEVISE FOR CHAIN TO PULL DOWN
• 1 x UNIVERSAL JIG (SUPERSTAR) WITH NO.05 BARS LENGTH
• 1 x RACKS KIT 6M BENCH
• 1 x KIT OF NO.02 ASCENDING RAMPS AND NO.12
• 1 x SPECIAL SCREWS KIT FOR JIG COMPELETE WITH SHELVES
• 2 x CROSSBAR LENGTH 1800mm WITH No.02 SLIDDING SUPPORT
• 1 x MCPHERSON MEASURING SYSTEM FOR SHOCK ABSORBER

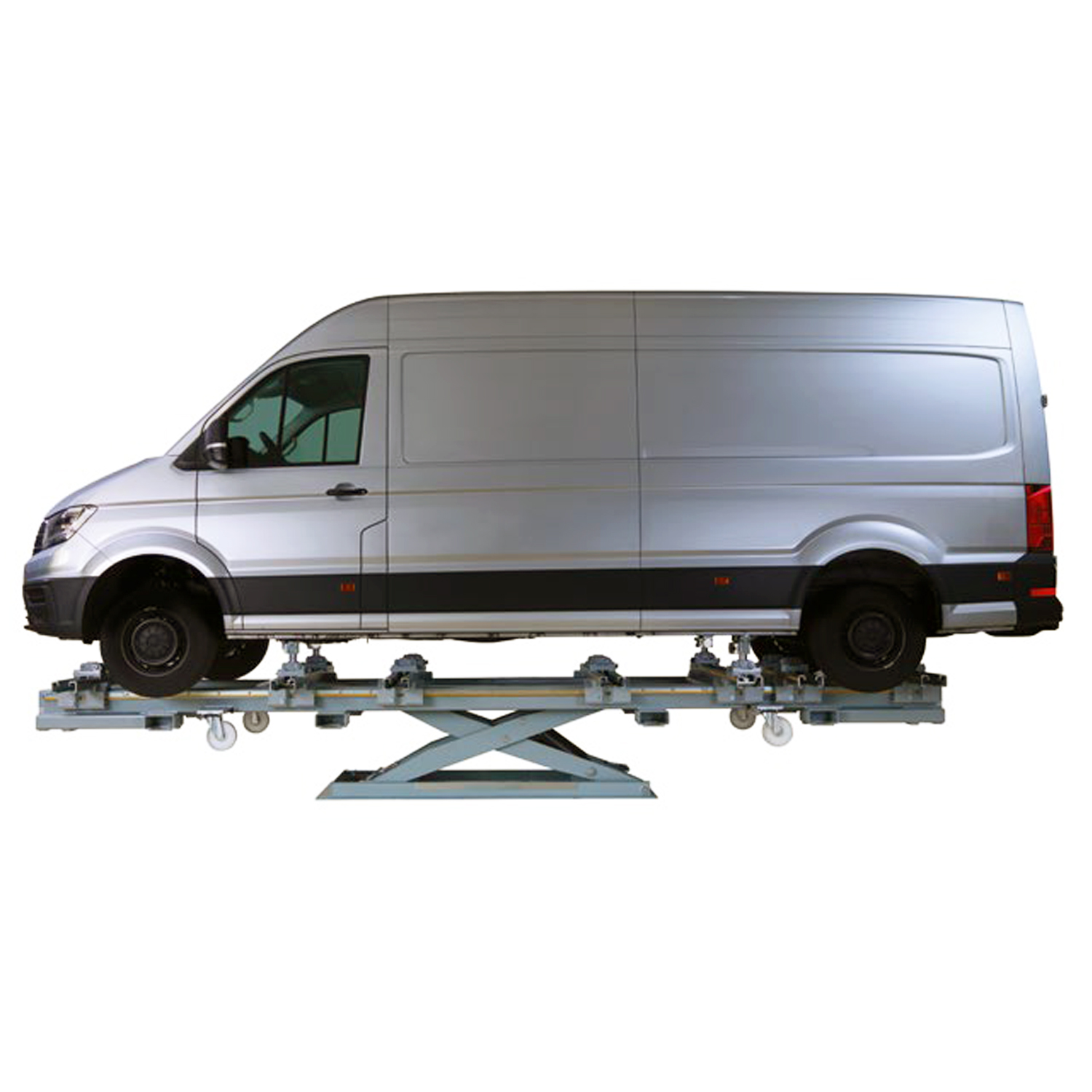

106 EXT

For large and commercial vehicles

The 106 EXT is designed for longer vehicles. With length of 6 metre, it is suitable for work on vans, light and medium duty trucks, SUVs and minivans.
The pulling column can be mounted in 12 locations surrounding the bench and delivers 360° pulling capabilities around the vehicle.

Contains:

• Bench with rack gears
• Lift with control box
• Pulling Column
• Universal Jig System
• 6 Crossbars
• Loading trolley
• Positioning and ascending ramps

Specifications:

• Load Capacity - 5000kg
• Length - 6 metres
• Width - 1.8 meters
• Lifting Height - 1 meter
• Pulling Force - 10 Ton
