MOBILE EXTRACTION SYSTEM ALUMINIUM VAS6572A/2
MOBILE EXTRACTION SYSTEM ALUMINIUM VAS6572A/2
Code: VAS6572/2
Brand: WS Products
Product Details
MOBILE EXTRACTION SYSTEM ALUMINIUM VAS6572A/2
Brand: WS Products
Product Details
MOBILE EXTRACTION SYSTEM ALUMINIUM VAS6572A/2

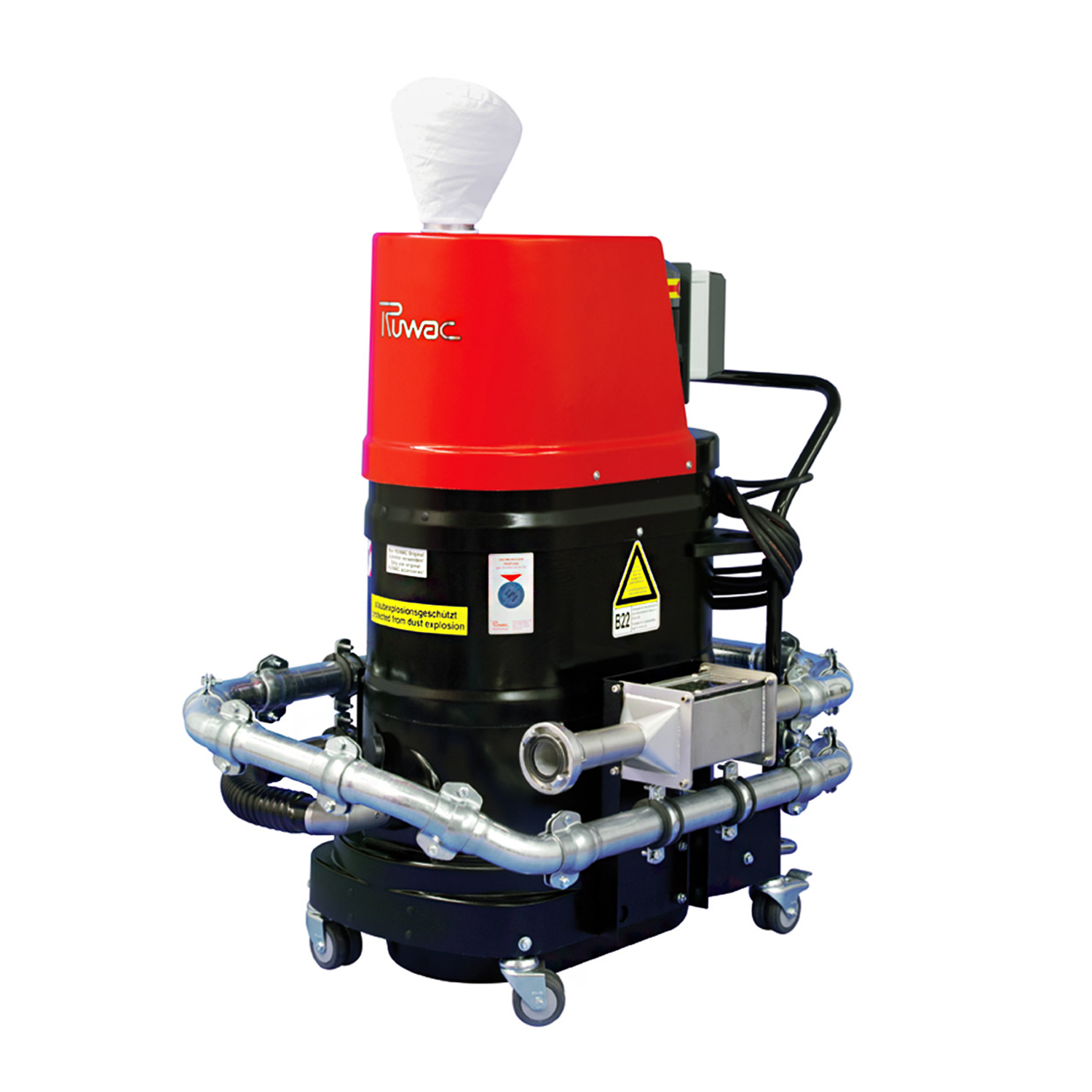

PROWOTECH MOBILE EXTRACTION SYSTEM ALU & PLASTIC DUST
Portable extraction system for aluminium and plastic dusts as well as welding fume.
Explosion-proof enclosure according to ATEX II 3D suitable for Zone 22.
Additional fine filter stage according to "H" classifications required to operate the same machine with cancer causing plastic dusts as well.
Including safety system to protect the air intake from hot steel sparks, a 5 m flow-calming section as well as adaptors to connect grinding tools and an accessory pack for cars.
The frictionless and sparkless cabinet consists of absorbable and glas fibre consolidated polyester.
Technical data:
- Drive: rotating current
- dust category: H (=high)
- prefilter: remaining dust filter 3,76 m²
- power: 2,2 KW
- voltage: 3 x 400V / 50Hz
- protection class: IP 65
- connecting cable: 10 m 5 x 1,5 mm² CEE 5/16A/IP67
- filter type: bag filter
- filter area: 1,2 m²
- dedusting type: manually dedusting
- airflow: 270 cbm/h
- pressure: 206 mbar
- noise level: max. 70 db(A)
- dust container: 35 litres
