Existing disturbance factors, such as paint residues, hollow positions, etc. are detected automatically and controlled adaptively wherever possible. If control tolerances are exceeded, a plain-text message appears on the device display. Full process monitoring and automatic control of pressure, welding current or welding temperature is
possible using software. Energy guarantees consistently high-quality welds.

Advantages:
• Lightweight: 11.3 kg with G1 clamp
• Automatic over-opening of 80 mm (20 mm at rest)
• Manual over-opening of arm for access to difficult areas (200 mm clearance)
• Brass clamp holder and arm base for optimum electrical contact (easier maintenance)
• Quick, tool-free arm change thanks to double-action lever
• Automatic cooling liquid connectors
• Remote controls on clamp (over-opening, welding, setting confirmation)
• Ball-bearing-mounted gyroscopic sensor integrated on the clamp
• Maximum productivity (18 points/min)
• G9 arm (optional) with automatic mode

Performance:
• Welding power:
• 14,500 A maximum
• Constant current monitoring
• Acoustic message if the tolerance value is exceeded
• Low current consumption
• Electrode application pressure:
• Automatic adjustment of contact pressure
• Maximum electrode force: 550 daN at 8 bar
• Liquid-cooled transformer, rectifiers, electrodes andclosing parts

Adjustable boom:
• Reach from power source 120 cm
• Motorised boom to adjust working height
• Offset balancer for from working area
• Rubber protection at the end of the moving parts

Scope of delivery:

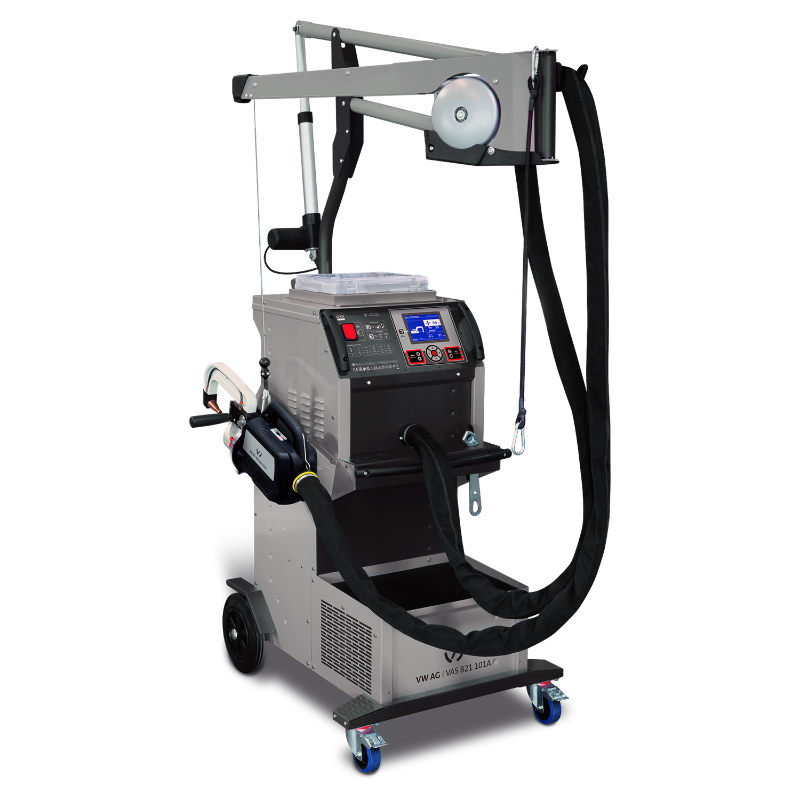

Liquid-cooled resistance welder with
• Transformer G clamp and 6 m clamp cable
• Standard G1 arm 190 x 97 mm
• 360° gyroscope with ball bearings
• Motorised balancing system to adapt working height
• Cable holder
• Spring balancer
• 360° orbital clamp guide
• Box of consumables with 6 type A electrode caps Ø 13 mm

Parameter memory:
• SD card interface for saving welding parameters
• Software for transferring reports to PC (SPOT SAVE)
