PROWOTECH TWIN ARM FUME EXTRACTION - 415/50 3Ph

PROWOTECH TWIN ARM FUME EXTRACTION - 415/50 3Ph
in-stock
Code: VAS892003
Brand: ProWoTech Products
Product Details
PROWOTECH TWIN ARM FUME EXTRACTION - 415/50 3Ph


Estimate Freight

To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

Postcode

Quantity

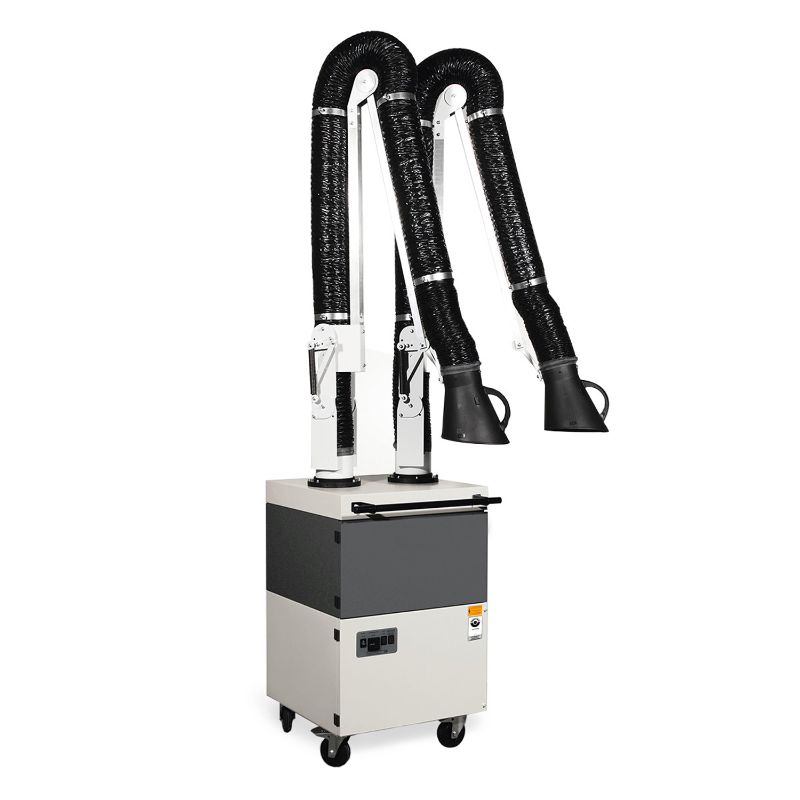

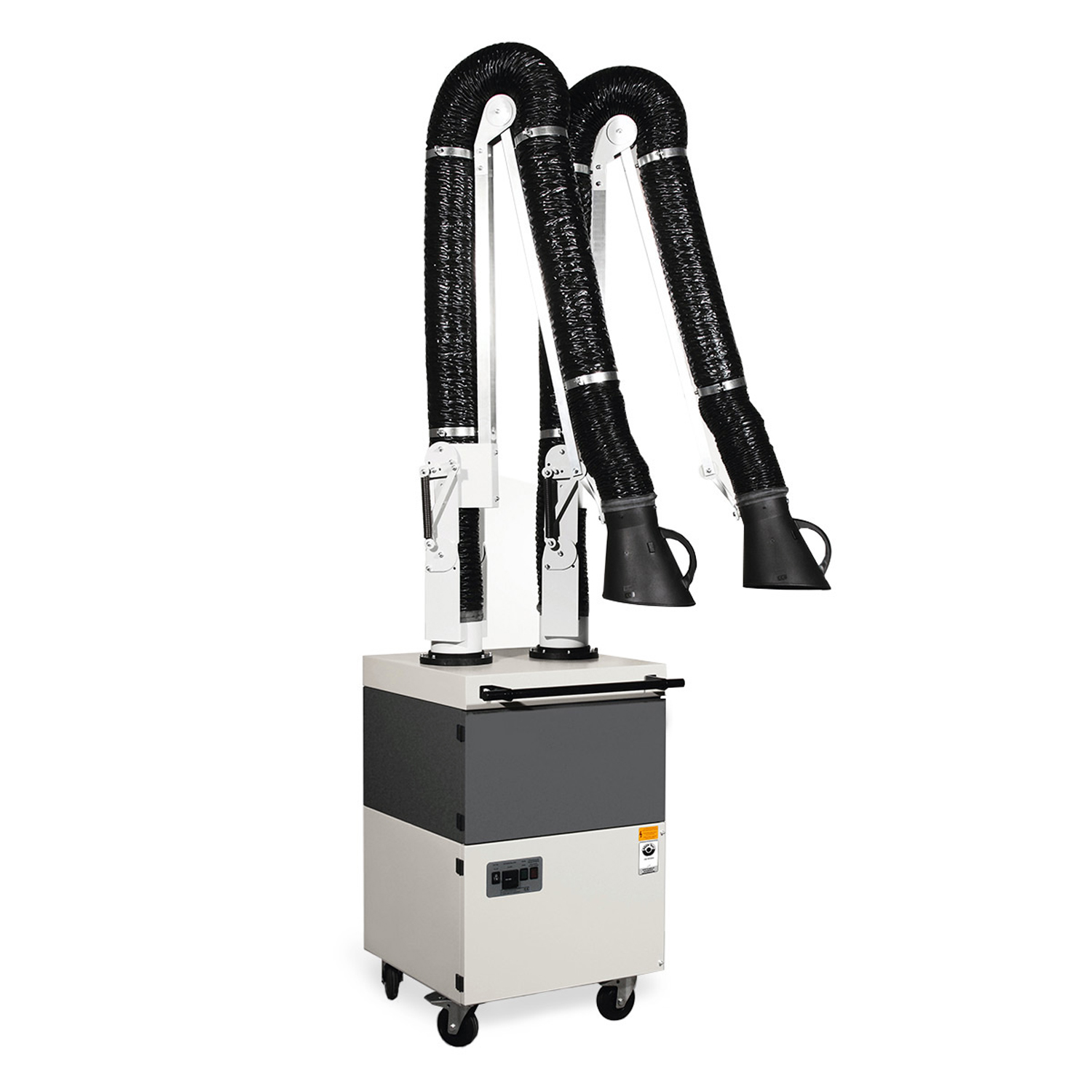

VAS892003 Twin Arm Extraction System

Mobile extractor for welding fumes with cartridge filter and 2 extractor arms as well as increased turbine performance.

Filter for class W3 welding fumes.

Optional activated charcoal cartridge can be used for chemical emissions.

With a welding fumes filter, the machine can be used for: welding fumes from steel and aluminium welding, MIG brazing.

With an activated charcoal filter, the machine can be used for: adhesive smoke from thermal separation of CFRP bonds, adhesive fumes from bonding CFRP components as well as chemical fumes and odours that are given off when processing other plastics in the course of repairs.

The machine can be used with one or two extractor arms depending on the size of the working area.

Technical data

- Fan output [m3/h]: 3500
- Pressure [Pa]: 2500
- Extraction rating [%]: 99.9971
- Mains voltage [V/Hz]: 400/50
- Power draw [A]: 5.0
- Motor output [kW]: 2.2
- Noise level [dB(A)] approx.72
- Diameter [mm]: 160
- Type of current: 3PH+N+PE
