INVERTASPOT NEXGEN 400V BMW RESISTANCE SPOT WELDER
The mobile resistance spot welder for car body repairs, featuring an efficient liquid cooling system, stands out with its advanced control technology.
It automatically detects the conditions at the joint and sets all the necessary welding parameters independently, ensuring a safe and precise welding process. The device is operated intuitively via a user-friendly colour touch display with self-explanatory symbols.
Special welding programs are optimized for high-strength and ultra-high-strength sheet metal, thin sheet metal, spot-welded adhesive joints and galvanized sheet metal.
During the entire welding process, the machine continuously monitors the process parameters and shows the actual values on the display.
This ensures maximum process reliability and quality for every application.
- Automatically Detects and Sets all the necessary Welding Parameters – ensuring a safe and precise welding process.

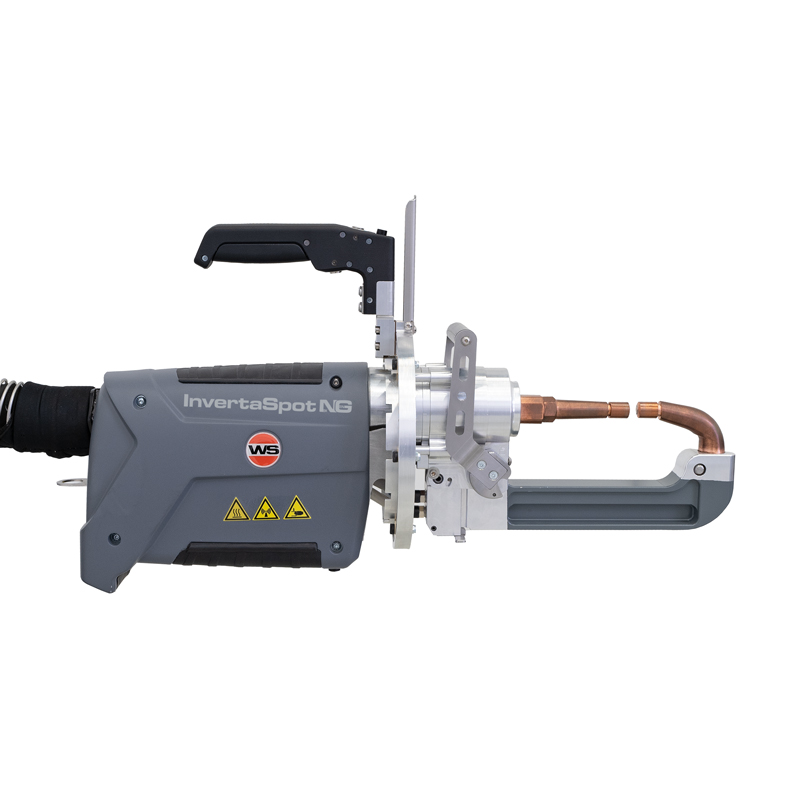

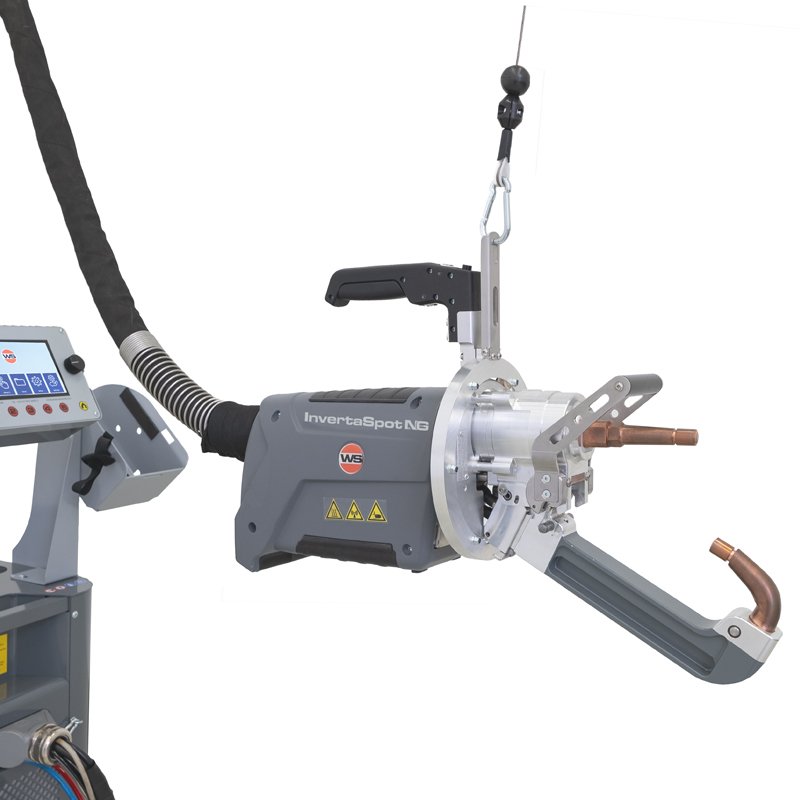

- Lightweight C-Trafogun, less than 10kg, with 360° rotating handle and 5m hose.
- Quick Change C-Electrode Arm system.

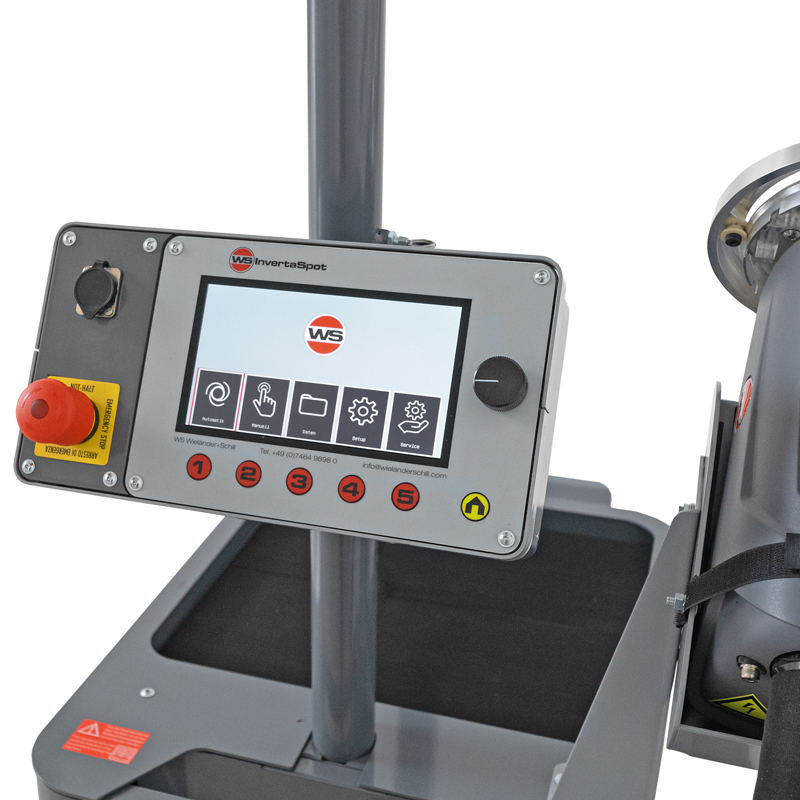

- Operated Intuitively via a User-Friendly Colour Touch Display, with self-explanatory symbols.
- Special Welding Programs, optimised for high-strength and ultra-high-strength sheet metal, thin sheet metal, spot-welded adhesive joints and galvanised sheet metal.
- OEM Welding Programs/Parameters are pre-installed.

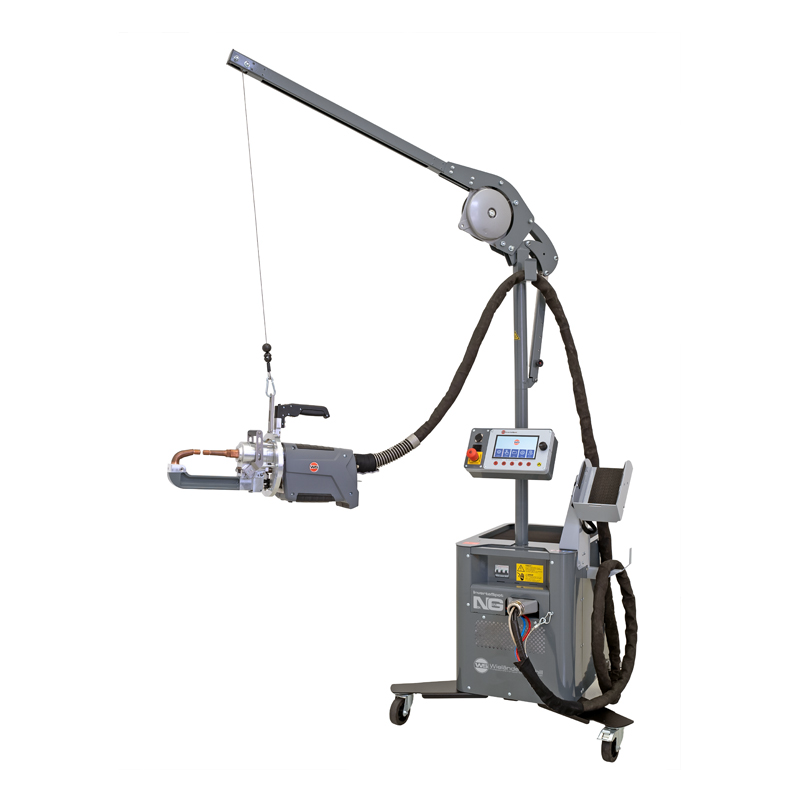

- Balancer has 130° Working Range and is Adjustable up to 2.4m height.
- Optimised Cooling System – with heat exchanger and fan.
- Integrated Track Widening, including swivel and brake castors for maximum stability.
- Continuously Monitors the Process Parameters – during the entire welding process, the machine continuously monitors the process parameters and shows the actual values on the display, ensuring maximum process reliability and quality.
- Documents and Manages Job Data
- Manufacturer Approvals – include Mercedes, VWG and BMW (with different arm package and colour)
- Current setting range: 0 - 13 kA , 0 - 13 kA
- Flow rate: 5 l/min
- Frequency: 50 - 60 Hz (+/- 10 %)
- Fuse: 32 A
- Length: C-Trafogun hose package: 5 m
- Length × width × height: 195 x 95 x 89 cm
- Mains connection (Cu): 5 × 6 mm²
- Mains voltage: 3 × 400 V
- Open circuit voltage: 12 V
- Operating pressure: 6 - 8 bar
- Protection class: IP 21
- Sound pressure level: < 70 dB(A)
- Weight: 125 kg
