VAS 821005 AUTOPULSE MIG / MAG - TRI GUN

VAS 821005 AUTOPULSE MIG / MAG - TRI GUN
in-stock
Code: VASMIG
Brand: GYS Parts & Consumables
Product Details

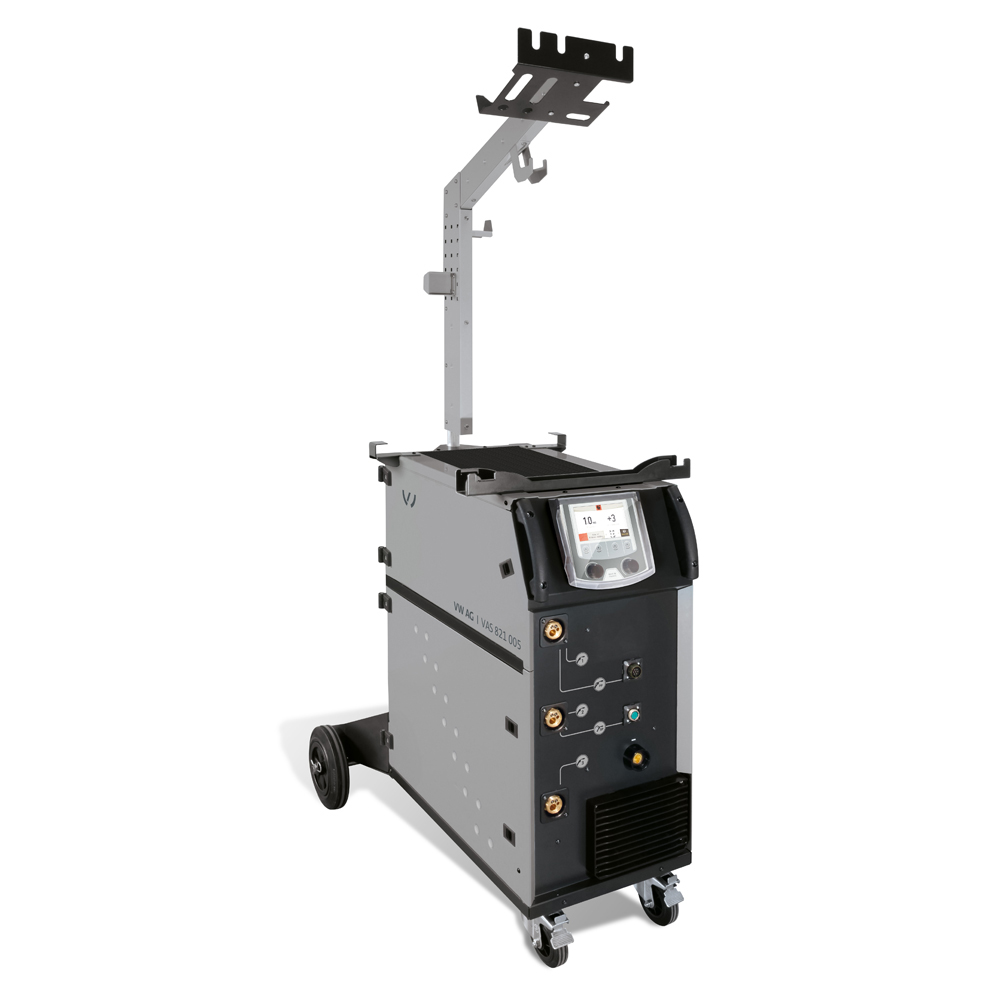

VAS 821005 AUTOPULSE MIG / MAG - TRI GUN


Estimate Freight

To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

Postcode

Quantity

Kit Components

This item contains the following components:

VAS 821 005 MIG/MAG Pulse Welding unit

The VAS 821 005 is an INVERTER Pulse MIG welder, with high-speed digital technology, and maximum welding current of 320A. Equipped with 3 wire-feeders, all with 4 rollers and electronic regulation, this product can be used either with standard torches, or a Push-Pull torch, or even a Spool gun. It is perfectly adapted to the welding of soft wires such as Aluminium (AlSi5 or AlSi12).

The 46 synergy programs for Steel, Stainless steel, brazing (CuSi3 or CuAl8), and Aluminium, can easily be selected thanks to a simple 2 buttons interface and a large colour screen of the latest generation. The intuitive menus propose an EASY mode, with only 2 settings to be adjusted. The intuitive operation and the reproducibility of the jobs provide a definitive advantage. The TACK function is also available for manual welding.

Functions:

All the standard MIG and brazing weldings, with or without pulses.

Operating modes:

2T / 4T (special 4T function available, with control of Hot Start, Upslope, Downslope, Crater Filler, …).

Time savings:

The product can be equipped with 3 different welding consumables simultaneously, which allows switching between different weldings in only seconds, without any changes on the product. The commutation between one torch to the other is automatic (gas protection, wire feeding, synergy program) by a simple pressure on the torch trigger.

• Stand for 2x 4m3 gas bottles included
• 3x wire-feeders, 4 rollers, integrated
• Torch support included
• 3 torches 250A, length 3m, for Steel, Brazing (CuSi3, CuAl8) and Aluminium.
• Ground cable 4m/35mm², with clamp
• Universal reel stands
• USB port
• Present Firmware
• Documentation in paper and electronic format
• CE Electrical supply cable
• User Manual in paper and electronic format
• Set-up and on-site training
• Cooling as an option

CE Certification of Inverter based pulse MIG welder, Conformity declaration and compliance with other norms available under request.



<font color="white">GYSFRANCE</font>

Nominal input voltage:
400 V - 3~ +/-15%
(3 x 208/240 V, option)
Current supply frequency:
50/60 Hz
Protection:
16 A
Protection rating:
IP23
Wire feeding:
3 x wire-feeders, 4 rollers
Push-Pull torch in option
Wire speed:
0,5-20m/min adjustable by steps of 0,1m /min.
Torches connection:
Euro
Cooling:
AF
No load voltage (Uo):
According to IEC 60974-1
Nominal Output Current:
10 - 320 A
Welding Voltage:
14,5 - 32 V
Operating temperature:
-10°C - +40°C
Storage temperature:
-20°C - +55°C
Dimensions L/W/H:
90 x 63 x 92,5 cm
Weight:
82.5 kg
