W&S INVERTER SPOT GT 4M- BMW SPEC-KIT
W&S INVERTER SPOT GT 4M- BMW SPEC-KIT
Code: WSGTBMW
Brand: WS Products
Product Details
W&S INVERTER SPOT GT 4M- BMW SPEC-KIT
Brand: WS Products
Product Details
W&S INVERTER SPOT GT 4M- BMW SPEC-KIT
Kit Components
This item contains the following components:
- 1 x WS INVERTASPOT GT PROTECTION COVER
- 1 x W&S NEW GT-C SINGLE SIDED GUN

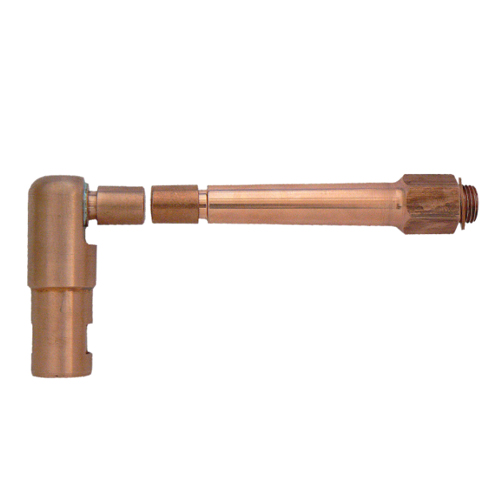

- 1 x W&S C ARM NO 6 WITH ELECTRODE
- 1 x W&S ELECTRODE TIP KIT
- 1 x W&S FILE FOR ELECTRODE TIP

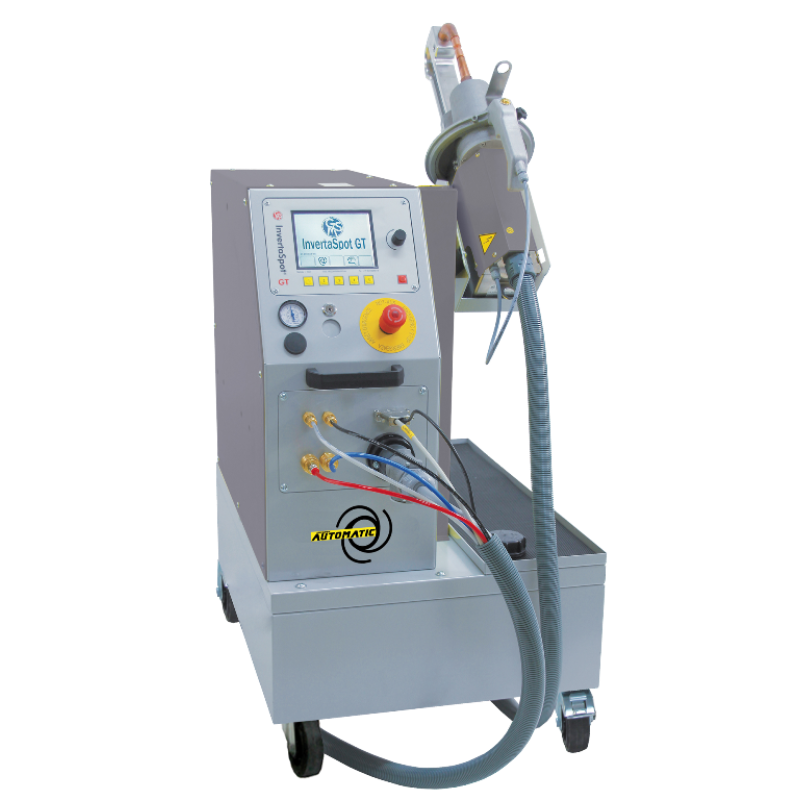

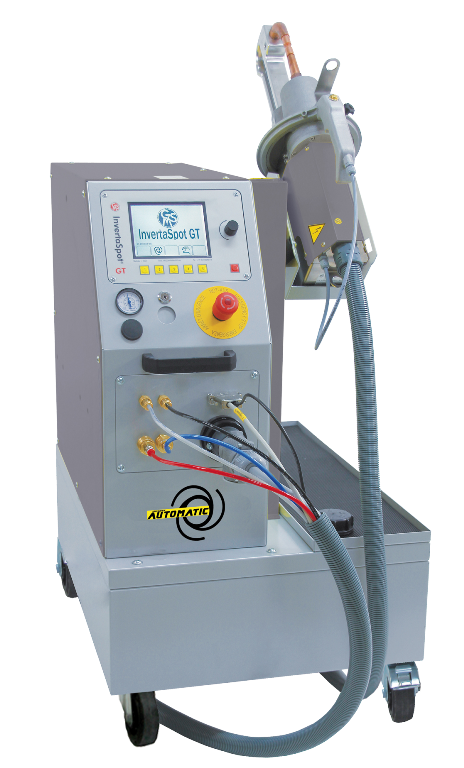

- 1 x W+S INVERTA SPOT - GT 4M - BMW SPEC
Description
New from Wieländer+Schill ! Fully automatic and approved for use on BMW vehicles.
New Press and Go technology An automatic, process controlled spot welder with inverter technology.
Very easy to handle and safe to use whilst always giving reliable welding results.
- The InvertaSpot GT automatically recognizes and measures the configuration and thickness of the panels
- Clamping force, amps and welding time are automatically calculated
- The parameters are set and there is no need for manual adjustments
- With high frequenz Inverter-Technology 10.000 Hz / < 13.000 A / < 6,0 kN
- Spot welder incl. double side C-transformer gun and accessories
Specifications
CoolingWasser mit Frostschutzmittel
Continuant machine power35 kVA
Maximum welding current13 kA
Maximum welding power156 kVA
Power supply voltage3 x 400 V
Power supply frequency50 / 60 Hz
Connection profile5 x 6 mm
Adjustment range0-13 kA
Protection classIP 21
Electrode surface pressure600 max. daN
Pliers dimension210 x 565 x 290 (incl. C-Arm) mm
Pliers weight (with cable)15 kg
Machine dimension (W x D x H)560 x 750 x 810 mm
Machine weight119 kg
