VAS 6545A RESISTANCE SPOT WELDING KIT

VAS 6545A RESISTANCE SPOT WELDING KIT
no-stock
Code: WSGTVAS
Brand: WS Products
Product Details
VAS 6545A RESISTANCE SPOT WELDING KIT


Estimate Freight

To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

Postcode

Quantity

Kit Components

This item contains the following components:

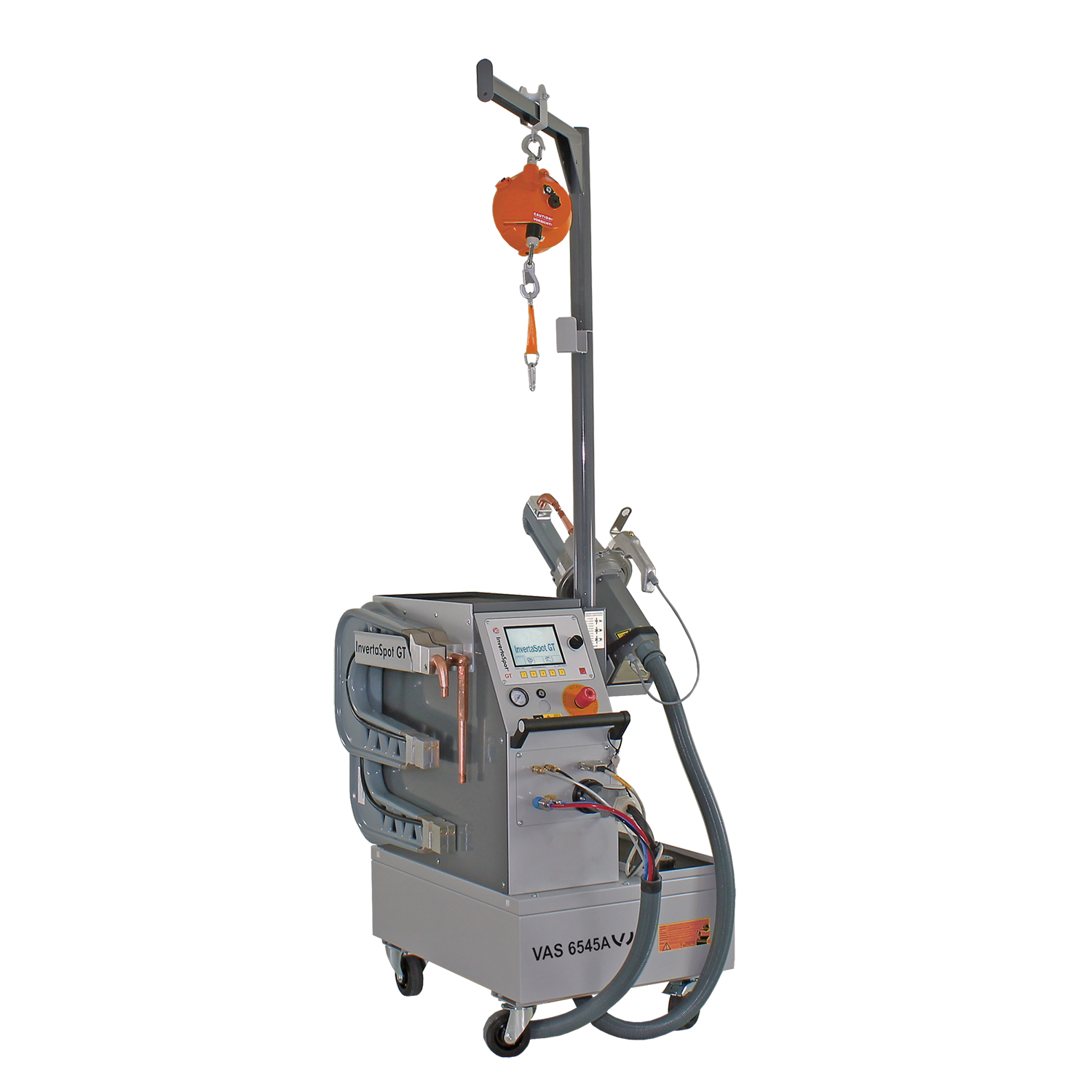

VAS 6545A | Resistance spot welder

The VAS 6545A is suitable for high and ultra-high-strength steels. It detects the conditions at the joint, sets parameters automatically, and monitors the welding process. Extremely energy efficient. Welding current up to 13 kA.

Tested and recommended by:
VW* | Audi* | Porsche* | SEAT* | ŠKODA* | Lamborghini* | Bentley* | Bugatti* | MAN* | Scania*

With the VAS6545A resistance spot welding unit, all approved welding repairs on Volkswagen Group vehicles can be carried out. Setting the welding parameters is carried out using simple, self-explanatory symbols. The welding programs are for high and higher tensile panels, for spot weld bonded connections, and for galvanized panels. Individual storage of welding parameters is possible. In addition, the system is suitable for documentation and administration of work order details on A4 paper. Software updates can be carried out using an SD card (upload). The material recognition function is performed with a material test program. Current control and pressure monitoring is provided. The welding process is monitored and the actual values are shown in the display.

- Modern control technology
- Automatically detects conditions at joining point
- Sets parameters automatically
- Monitors welding process
- Up to 65% less power consumption thanks to transformer inverter technology
- High-frequency inverter technology with water cooling
- Suitable for repairs on bodies with the highest tensile panels

Design and features:

Resistance spot welder with control unit and transformer clamp. The C-arms can be exchanged thanks to a quick-fit feature. A hinged fastener makes it possible for the C-arms to be opened, which means that access to the body is possible, e.g. behind profile sections.

Items supplied:

  • 1 "C" transformer clamp with integrated C-arm, size 1
  • 1 control unit with 80l water tank
  • 1 C-arm set, size 3
  • 1 electrode set 90° (suitable for C-arm, size 1)
  • 1 hanger set for C-arms

Technical data:

  • Setting range: 0 - 13 kA
  • Welding current: direct current
  • Maximum current: 13 kA
  • Continuous operation 100% ED: 2.8 kA
  • No-load voltage: 12V DC
  • Mains voltage: 3 X 220-240V 3-50-60HZ
  • Maximum performance at 5% ED: 156 kVA
  • Continuous operation (100% ED): 35 kVA
  • Fuse (delayed action): 32A
  • Mains connection lead (Cu): 5m long / 5x6 mm2
  • Type of protection: IP20
  • Temperature rating: A
  • Compressed air 6 - 8bar
  • Hose package: 3m
  • Coolant: anti corrosion WS1000
  • Tank capacity: 85l, flow rate 5l/min.
