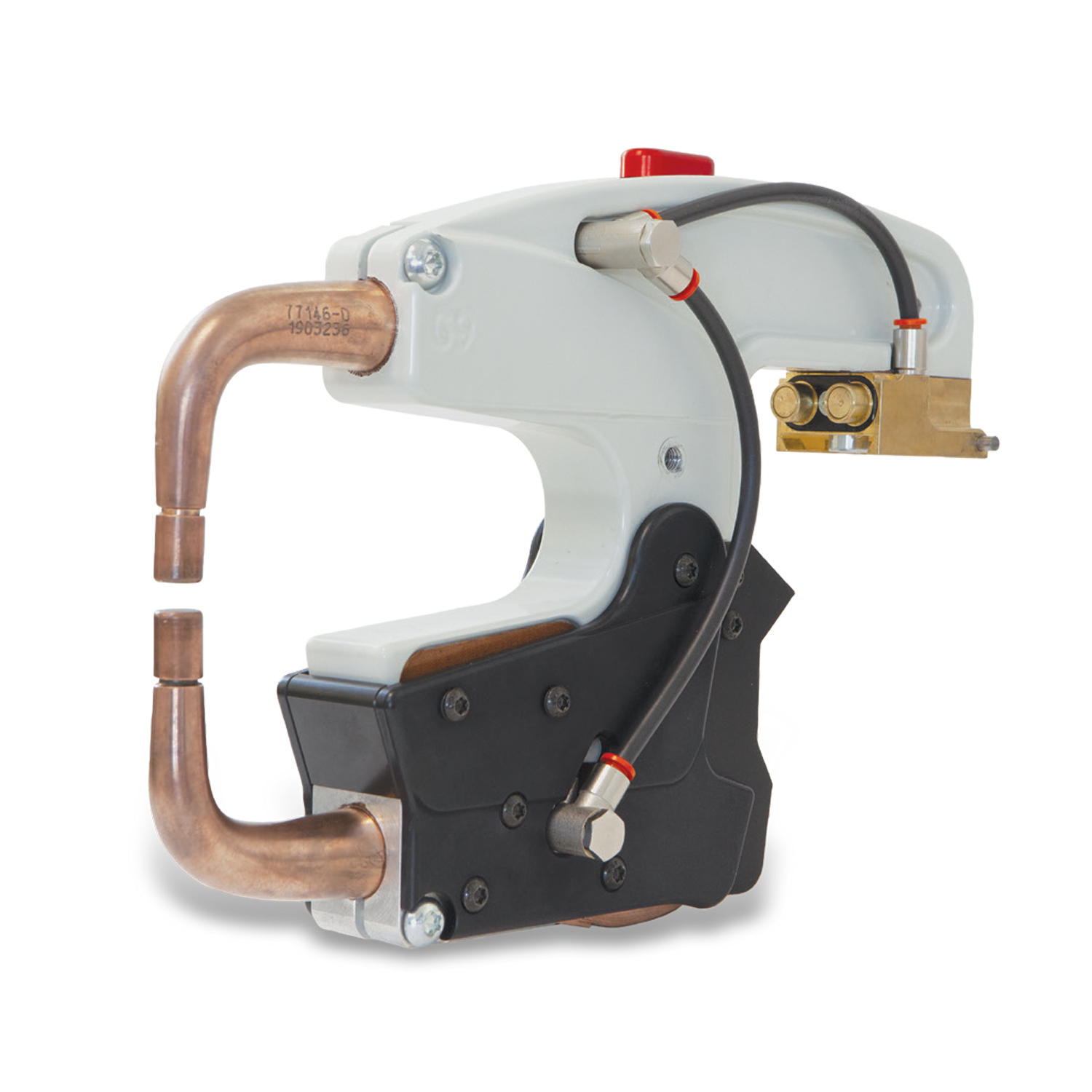

G9 ARM (INSULATED) & X1 ARM (x2)

The G9 arm is a C-shaped arm that turns the clamp from a C movement to a X movement. It is designed to be highly ergonomic and easy to use, and allows the use of the AUTO mode of the GYSPOT BP.LG which automatically sets the spot weld parameters.

EASY TO USE

• Quick set up with no tools required.
• No need to adjust the electrode.
• From G1 to G9 in less than 5 seconds.
• Automatic connection to the cooling system.
• Opening operated by the clamp.
• Integrated arm support (mounted on a trolley or wall).

AUTOMATIC MODE

• In automatic mode, the spot welder equipped with its G9 arm automatically determines the type of steel, the thickness of the sheet and the presence of glue and insulating material between the HLE/THLE, UHLE and boron sheets.

HIGH-PERFORMANCE

• Welding current: 13,000 A.
• Max. clamping force 550 daN at 8 bars with X1.
• Liquid cooling of electrodes and caps.

3 CONFIGURATIONS

• Automatic mode compatible with 3 copper arms (X1, X2 and X6).
