UNI 2.0 FUME EXTRACTOR

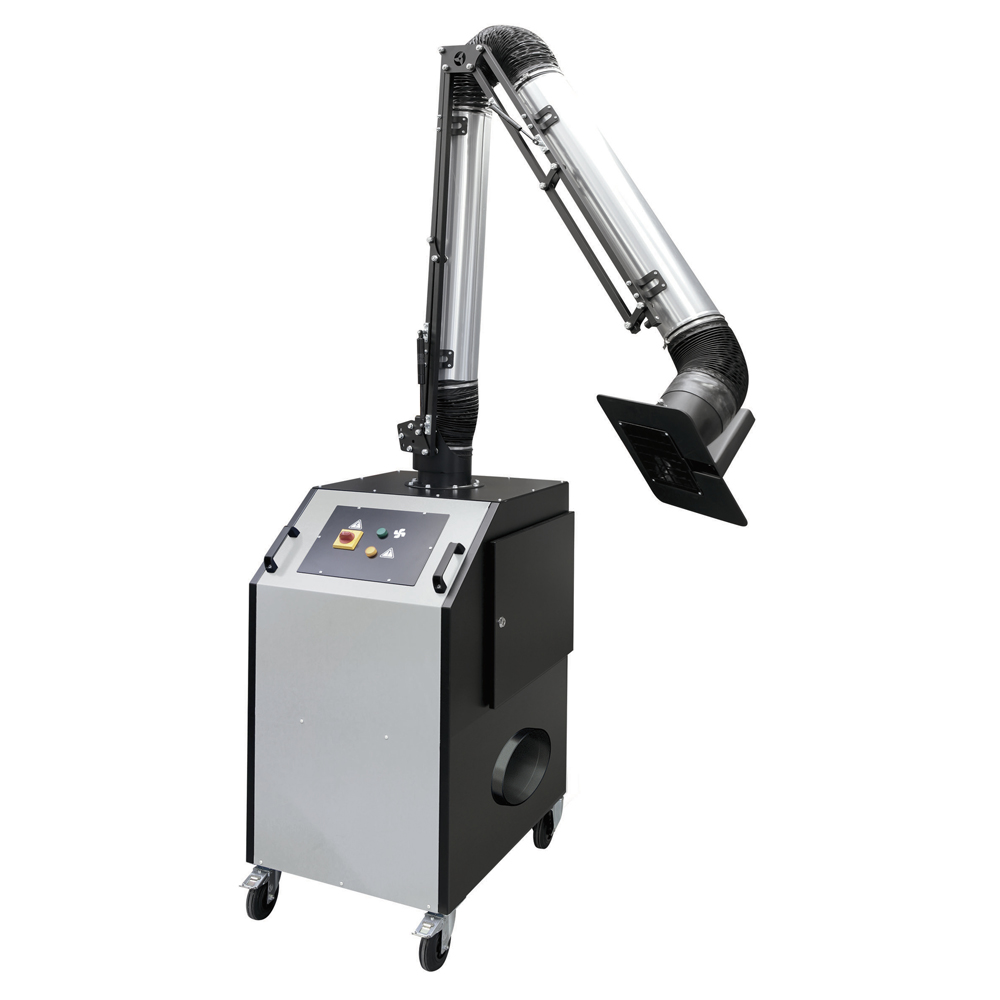

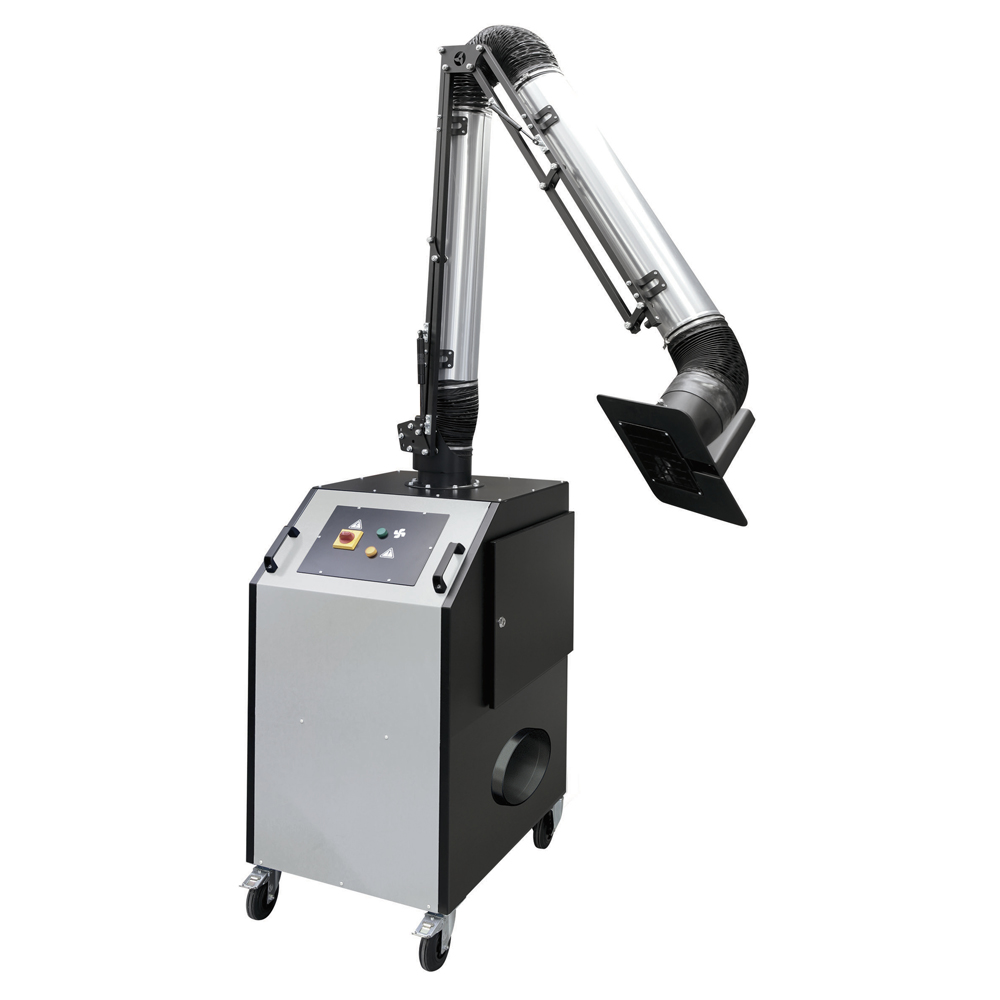

UNI 2.0 Fume extractor (400V) + Arm 160/3

The fume extractor UNI 2.0 and its arm 160/3 have been designed to extract and purify dry fumes generated by various welding processes. The fume extractor has a removable arm pivoting at 360°.

Applications

The UNI 2.0 is designed for the following applications:

• MMA Welding
• TIG Welding
• MIG/MAG Welding

Filtrations

Three filtration steps:

1 - Metal filter (filtration level: 1)
2 - Undulated filter (filtration level: 2)
3 - EPA rigid filter (filtration level: 3)
4 - Coal filter (option: ref. 064522)

External rejection

• Gases and fumes generated during welding are rejected outdoors to prevent their spread into the workplace.
• Provide a 150 mm diameter sheath to evacuate the smoke outside.

Arm 160/3

• Robust : Made of reinforced steel and anodised aluminium 6061 alloy to ensure durability over time (despite continuous exposure to fumes).
• Light : Lightweight rigid aluminium pipe.
• Efficient : The square design of the extractor hood gives maximum extraction.
• Adjustable: The extraction flow is adjustable and the hood has a handle for manoeuvrability. The arm pivots 360 °.
• Secure : Anti-intrusion grill (cloth/paper).
