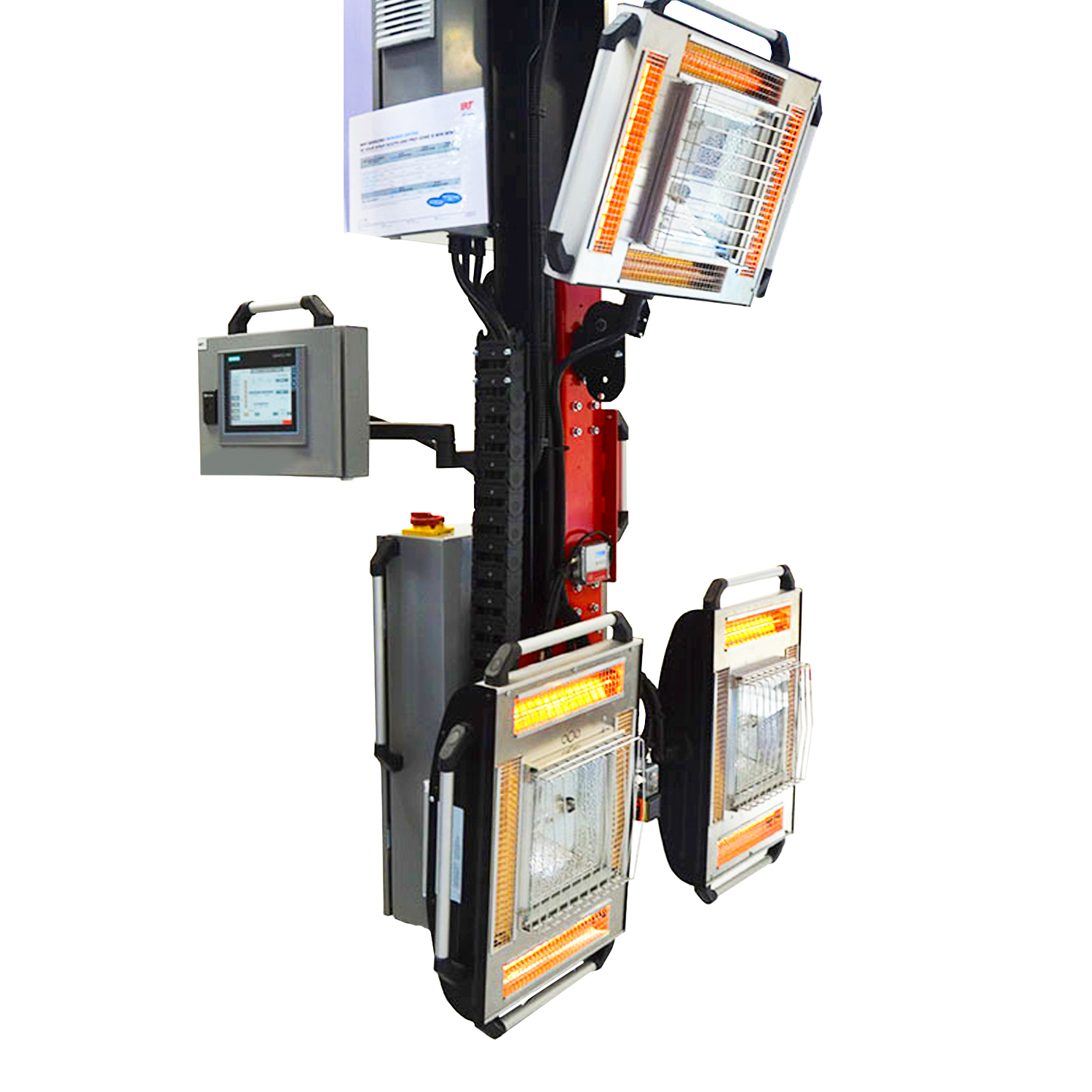

IRT ICURE-IR/UV COMBO ROBOTIC

IRT ICURE
Robotic, all-inclusive dryer for booth and prep zone

COMPACT ROBOTIC RAIL DRYER
Retrofits to spray booths and prep zones with minor adjustments

IR AND UV CURING
- Save time - ready to handle in minutes
- Reliable, precise curing results

BETTER FOR THE ENVIRONMENT
- Low energy spend per vehicle
- No energy waste in between jobs

BETTER FOR YOU
- Always comfortable booth temperature
- Pre-programmed - easy to operate
- Park in a corner, out of your way

DYNAMIC AND STATIC CURING
- All you need in one unit
- IR and UV curing
- Preprogrammed recipes for both

TWICE AS POWERFUL
- New HID UV lamps
- 2000 W UV lamp in each cassette
- Cures all UV-activated materials on the market

IRT INFRARED
- Original IRT infrared
- Proven cassette concept

MORE FEATURES:
- Robotic motion along the long/short side of the vehicle
- Flexible and easy to move into all positions manually
- Both dynamic and static drying are available
- 2000 W HID UV-A lamps
- Guarded UV safety glass, ozone-free
- Plug and Play, preprogrammed and DIY recipes
- IR lamps > 20.000 hrs, lifetime counter for UV lamps
- IRT shortwave infrared, >97% effective
- Gold coated reflectors determine high efficiency
- Time saving and exact drying process

TECHNICAL SPECIFICATION

- IRT ICure - Art nr 737413
- Nominal frequency - 50-60 Hz
- Rated voltage - 400-480V~3Ph/PE ± 5%
- Full load currency - 26 A
- Main disconnect fuse- 32 A
- Sound pressure / power level - ≤ 70 dB (A) at 1 m
- Ambient temp. (during operation) - Max. 40°C
