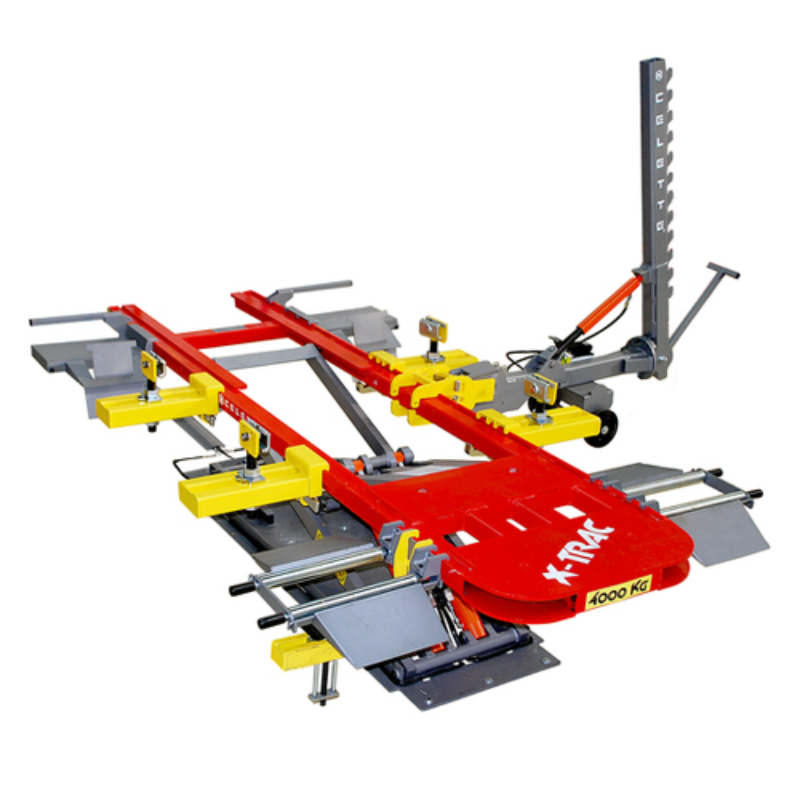

X-TRAC COMPLETE KIT

X-Trac is a lifting table specially designed for light and cosmetic impact reparis. Once positioned on the table, the vehicle can be easily and rapidly lifted up by the wheels enabling the technician to get access to the anchoring points.

Key Features:

- 1 pulling unit equiiped with 10T ram
- Platform lifting height up to 1.4 m.
- Lowered height of less than 105 mm, ideal for low clearance vehicles.
- 3000 kg – lifting from ground
- 4000 kg lifting from rocker panels to meet new car manufacturer standards
- X-TRAC lifting unit can be mounted underneath the SEVENNE mobile bench
- Decking plates and ramps can be mounted, X-TRAC becomes a platform drive on
- The car stands on 4 wheels, no stress on the vehicle structure
- Sill clamps can be mounted afterwards for quick pulls.

Kit Includes:

- Pulling Unit - APS08.0600
- Kit to place the wheels in position - LX02.0606
- Set of 4 clamps - X110.0400
- Lateral Pulling Accessory- LX02.0320
- Access ramps- X110.0605
- 2 SUPPORTS DE ROUE OUVRANTS X-ONE - X110.0601
- Set of 2 Wheels Supports - X110.0600
