DEVILBISS PRO AIR-1 FILTER REG & COALESCER
Brand: Devilbiss Parts
Product Details
DEVILBISS PRO AIR-1 FILTER REG & COALESCER

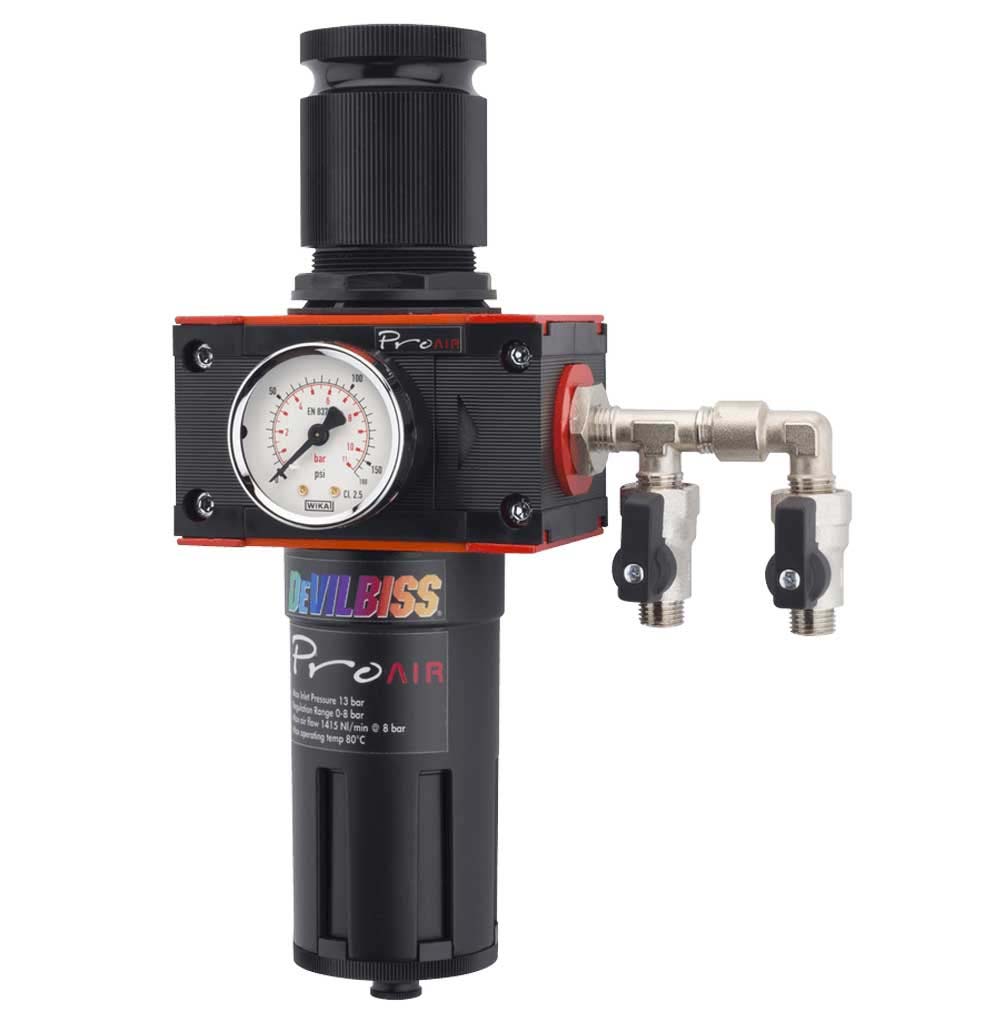

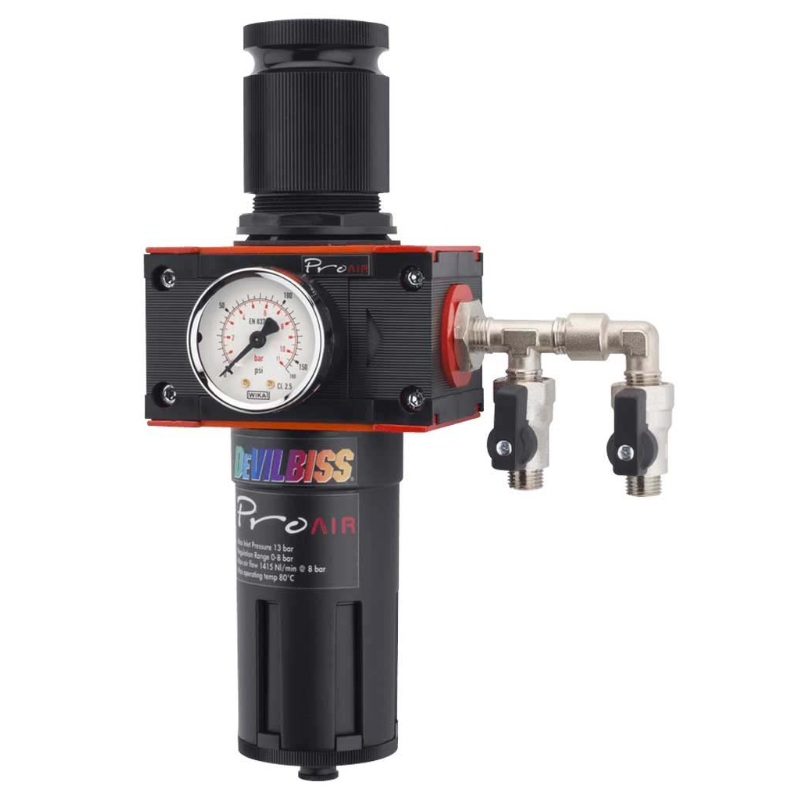

Devilbiss Pro Air 1 Filter Regulator
DeVilbiss Pro Air 1 Filter Regulator Dual filtration eliminates dirt down to 5 microns from reaching the spray gun and like all ProAIR filter regulators, condensate can be removed from the filter bowl manually or semiautomatically on depressurisation of the system. Ideal for running a spray gun (not suitable for breathing air).
DeVilbiss Pro Air 1 Filter Regulator Dual filtration eliminates dirt down to 5 microns and will filter air for spray guns but is not suitable alone for air breathing. It is recommended that a two or three stage filter system with at least a coalescer is used for air breathing.
Features:
· Provides air filtered to 5 microns
· Maximum airflow 3500 l/min (124 cfm)
· Suitable for use in booth/oven up to 100°C (212°F)
· Three ball valve controlled outlets
· Tamperproof, removable and lockable air pressure control knobs
|
Air Inlet Thread |
1/2” BSP (F) |
|
Regulated Outlets |
3 Valved |
|
Unregulated Outlets |
NA |
|
Air Outlets (Ball Valves) |
1/ 4” BSP (M) |
|
Width (Overall) |
175mm (6.9”) |
|
Height (Overall) |
280mm (11”) |
|
Weight |
2500 gms (88oz) |
|
Capacity (maximum air flow) |
3500 l/min (124cfm) |
|
Maximum Air Inlet Pressure |
13 bar (189 psi) |
|
Maximum Regulated Outlet Pressure |
0-8 bar (0-116psi) |
|
Maximum Operating Temperature |
100°C (212°F) |
|
Pressure Gauge |
0-11 bar (0-160 psi) |
|
Gauge port |
1/8” BSP (F) |
|
Air Filtration |
Down to 5 microns |
|
Drain Valve |
Semi-Automatic |
