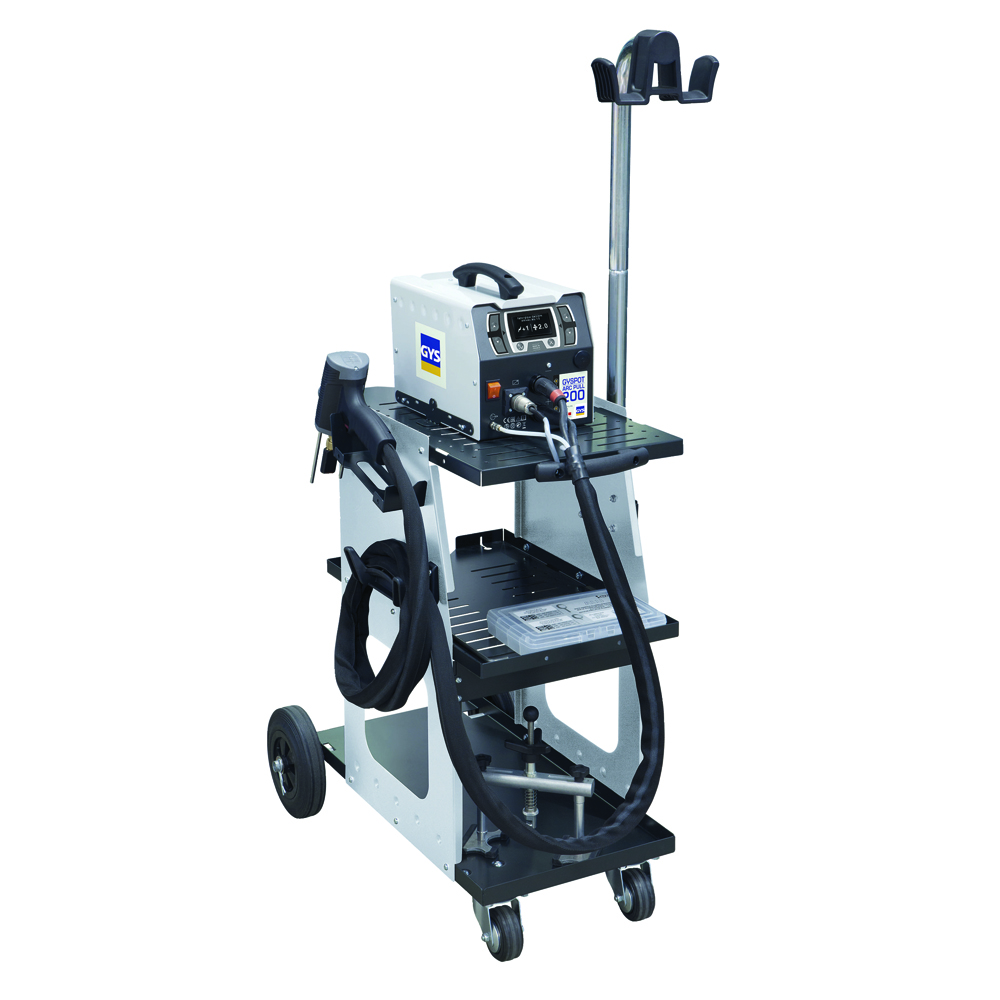

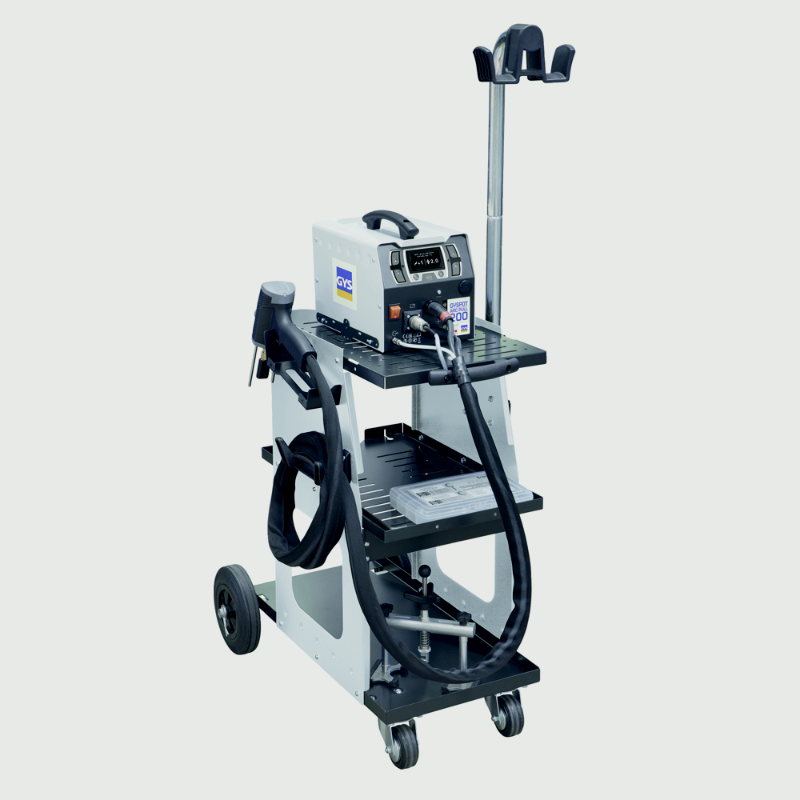

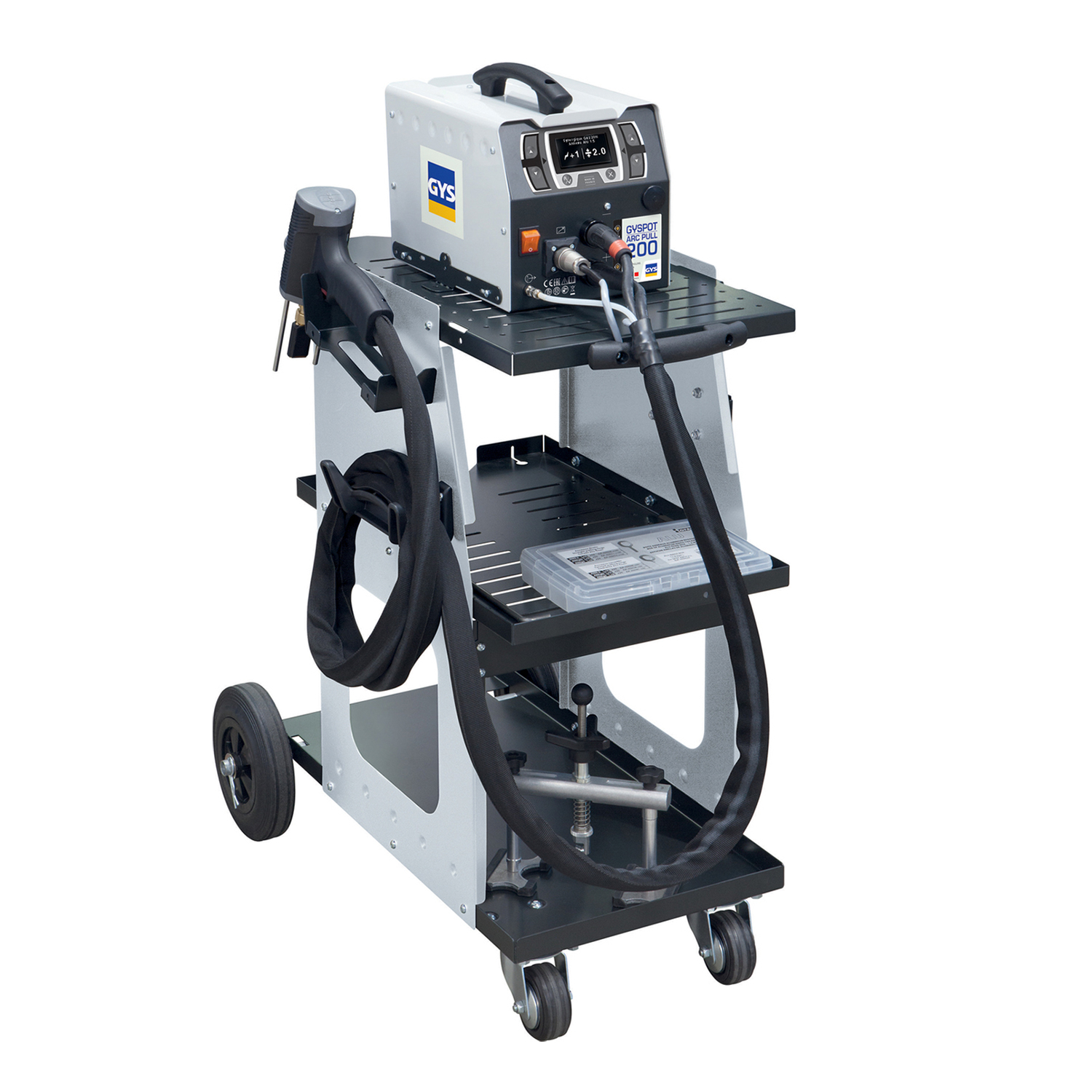

This item contains the following components:

• 1 x TROLLEY 4m³ WELD 810
• 1 x ALU PULLER
• 1 x GYSPOT ARCPULL 200
• 1 x ALUMINIUM LIFTING HOOKS 3 & 4 QUICK RINGS
• 1 x BOX OF ALUMINIUM RINGS THICKNE 1.0MM FOR SPOT ARCPULL
• 1 x BOX OF ALUMINIUM THREADED TUDS FOR SPOT ARCPULL
• 1 x BOX OF STEEL THREADED STUDS FOR SPOT ARCPULL
• 1 x ARGON TWIN GAUGE REGULATOR
• 1 x CLIPSAL 1P 3PIN 15A HD PLUG

GYSPOT ARCPULL 200

GYSPOT ARCPULL 200 is a drawn arc welding product developped specially for carbody thin sheets. Its innovative gun is equipped with a high precision linear motor with digital control, which provides refined synergies.

DRAWN ARC : A PROFESSIONAL PROCESS

For Aluminium Dent-Pulling, drawn arc welding has several advantages as compared to capacitor discharge technology :

• Gas protection which prevents contamination of the weld
• Deep repair capabilities
• Closer Key fitment for stronger pulling capabilities
• Reduction in post repair preparation
• Excellent Reproduction and reliability process
• No impact on the reverse side of the repaired panel.

RUPTURE INNOVATION

The gun is equipped with a linear motor which is superior and unique in the market. Unprecedented advantages :

• Superior control of the welding cycle.
• Digital process control - no need for manual ajustements
• 2 independently adjustable ground electrodes for better stability during the welding process.

2 WELDING MODES

A digital interface provides intuitive and functional navigation between the welding modes :

• A synergic mode which provides factory pre-etablished programs for fast and easy settings.
• A manual mode for users who require complete control - this provides personalized settings for specific use.
