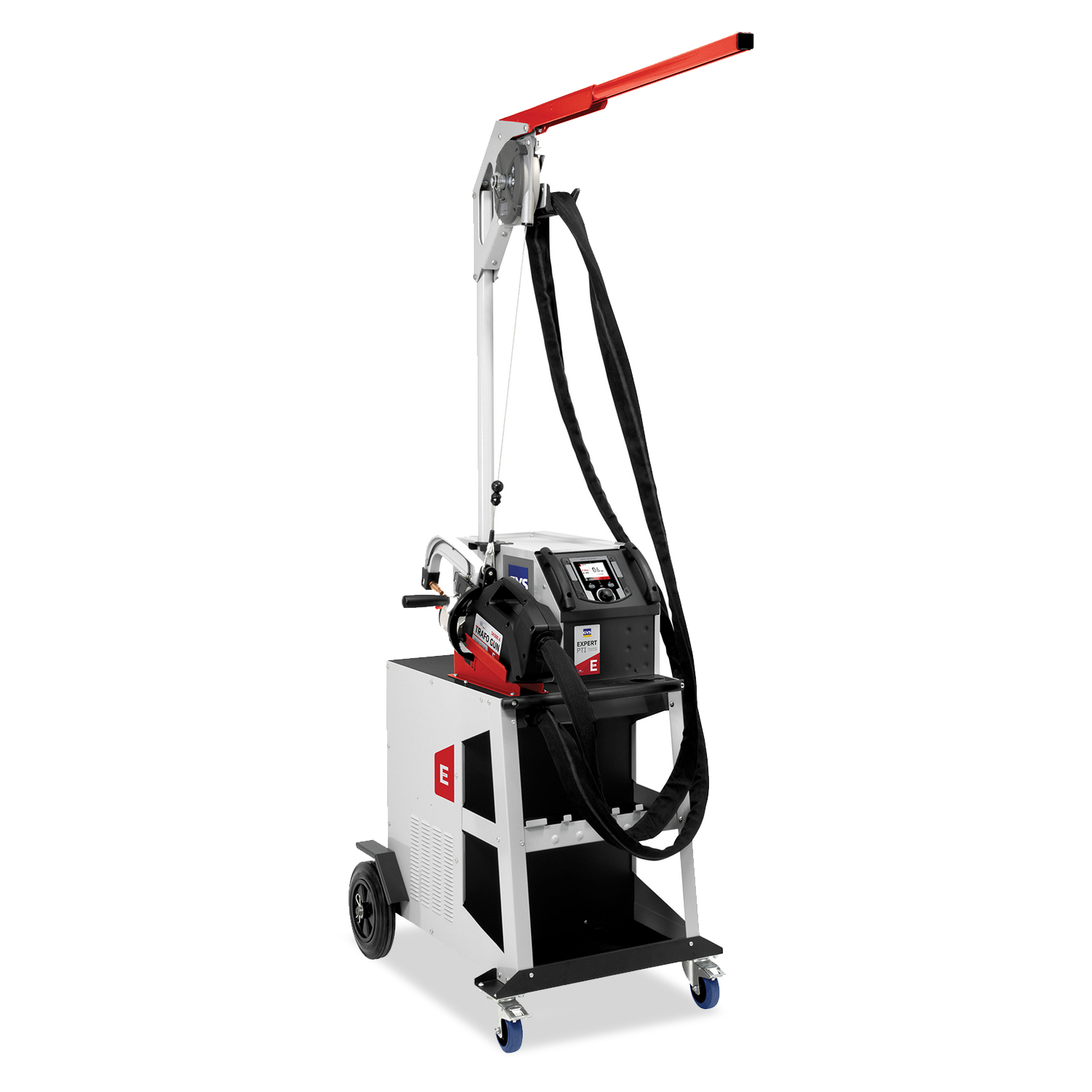

GYSPOT PTI EXPERT COMPLETE (G1 + G2 + G3 + G4) - 400V KIT
The GYSPOT PTI EXPERT is a high-performance inverter spot welder engineered for today’s advanced vehicle structures. Delivering 14,500 A of welding power, a liquid-cooled transformer, and a 360° rotating gun, it produces precise, OEM-quality welds on HLE/THLE, UHLE, Boron, and other high-strength steels.

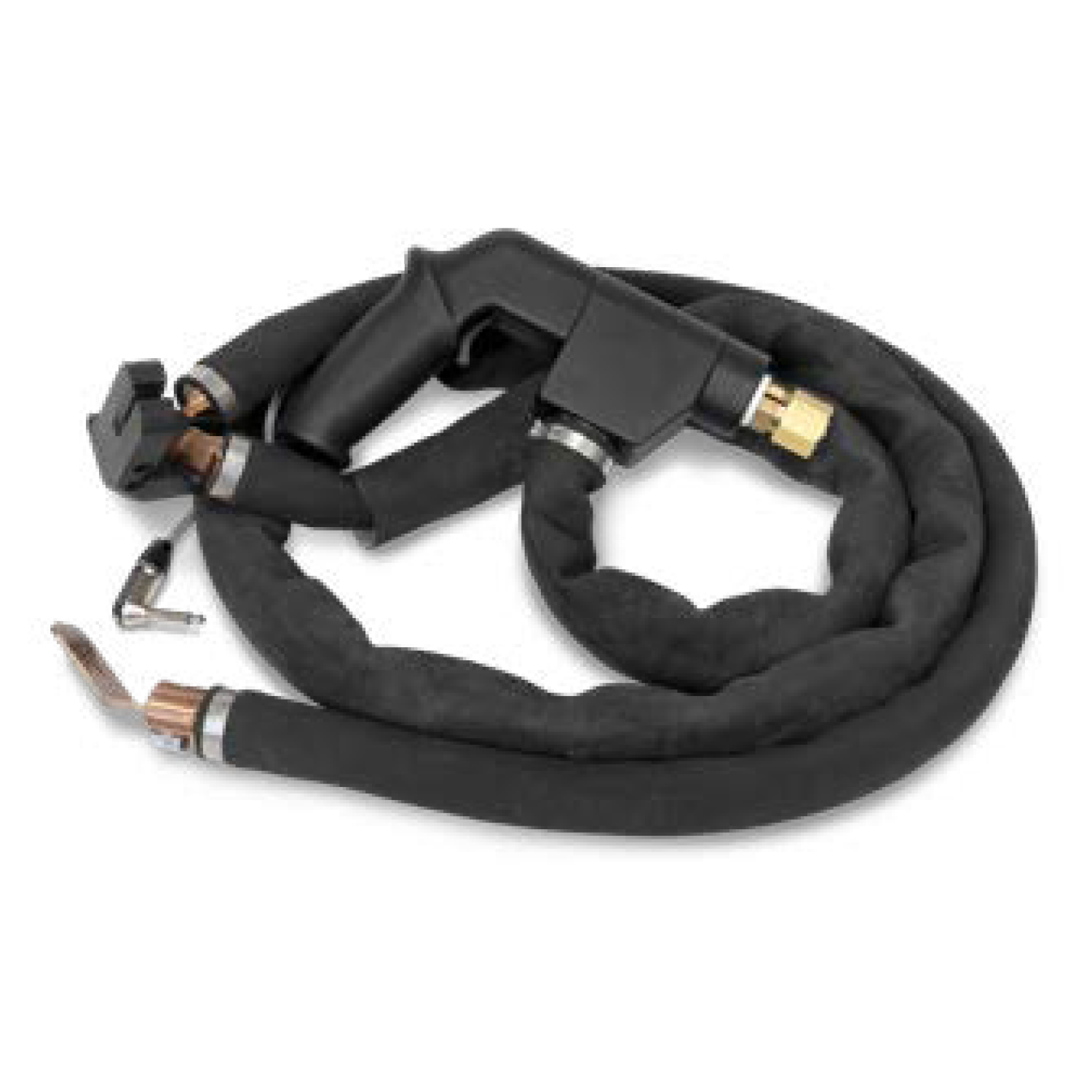

Its automatic mode intelligently adjusts welding parameters, while the manual over-opening system and quick-change arms provide excellent accessibility and versatility. The compact gun design, paired with a 5-meter harness, allows easy access to tight repair areas, and the 3.5-inch colour display keeps operation simple for technicians of all skill levels.
Built for productivity, the PTI EXPERT features a sliding counterweight support arm, a 30-litre coolant tank, and a spot counter for maintenance tracking. USB data export and included PC software provide full weld traceability, meeting insurance and OEM requirements.
Designed for the demands of modern collision repair, the PTI EXPERT delivers spot welding that’s smarter, faster, and stronger.
Key Features and Benefits:
- Delivers up to 14,500 A for high-strength steel applications
- Automatic mode adjusts welding parameters instantly
- Compact, 360° rotating gun for tight and hard-to-reach spaces
- Manual over-opening provides 2.95” cap clearance for better access
- Quick-change arms with no tools required
- Integrated liquid cooling for gun, caps, and transformer
- Sliding counterweight arm reduces operator fatigue
- Intuitive 3.5” color display for easy navigation
- USB weld traceability & reporting for OEM documentation
- Designed for all modern steels: HLE, UHLE, and Boron
This item contains the following components:
HIGH PERFORMANCE

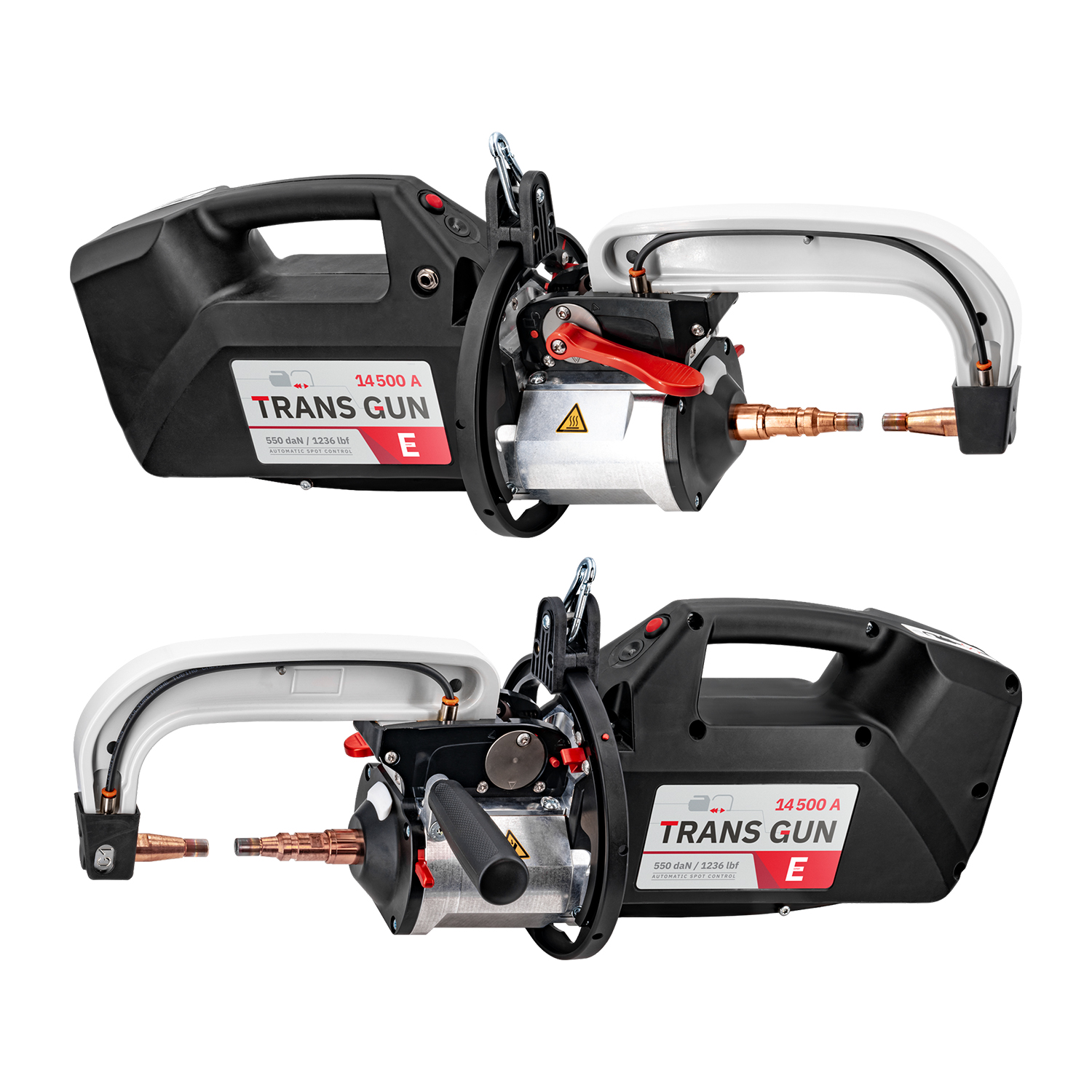

- High duty cycle with a maximum welding current of 14,500 A, suitable for welding all types of steel on modern vehicles (HLE/THLE, UHLE and Boron).
- Liquid-cooled (30 litres) transformer, electrodes and caps for maximum performance.
- High speed (10 spots/min).
- Clamping force up to 550 daN at 8 bar to meet OEM requirements.
- Integrated transformer in the gun, reducing power consumption to a minimum (25 A fuse).
EASY TO USE
- Automatic mode: the intelligent gun automatically determines the correct welding parameters.

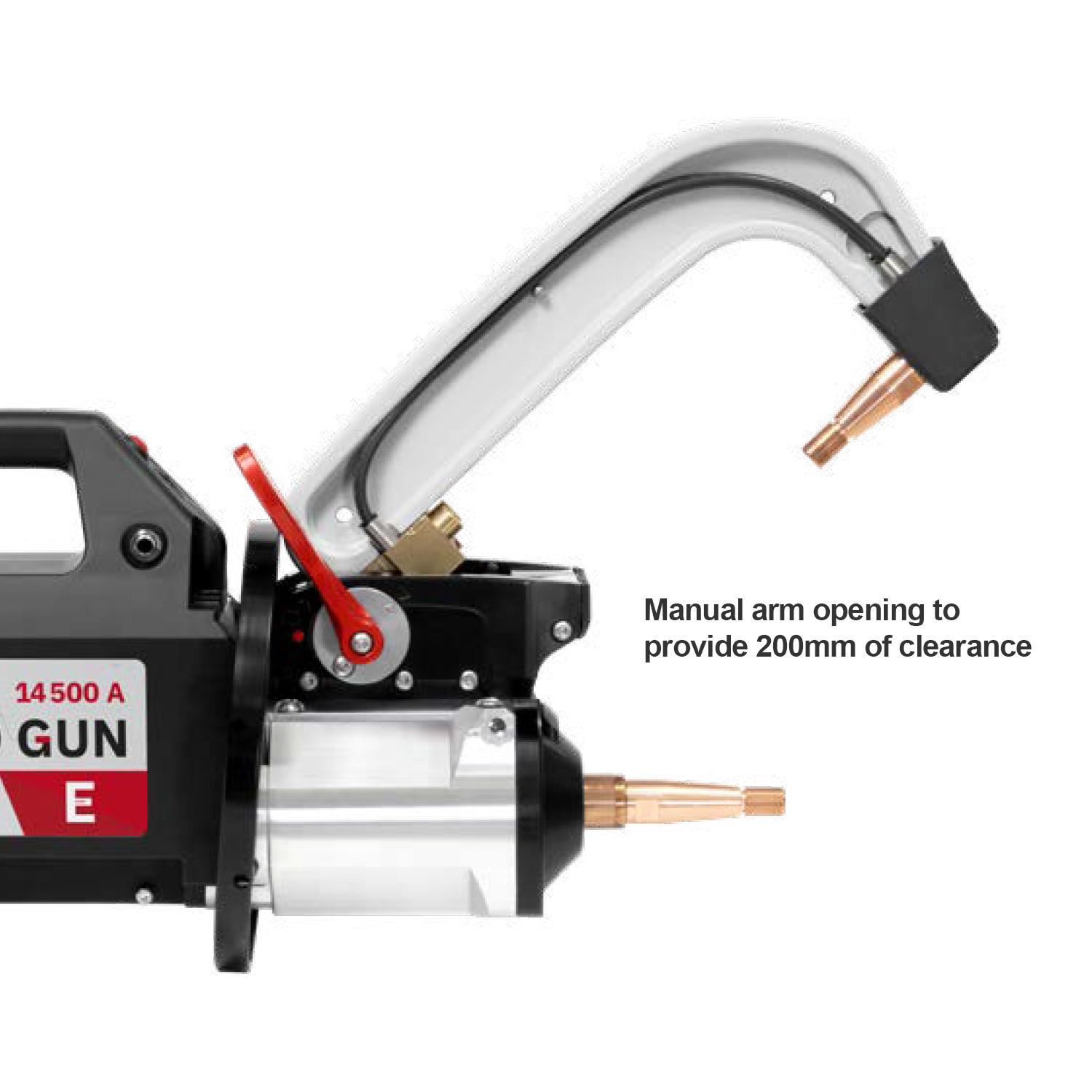

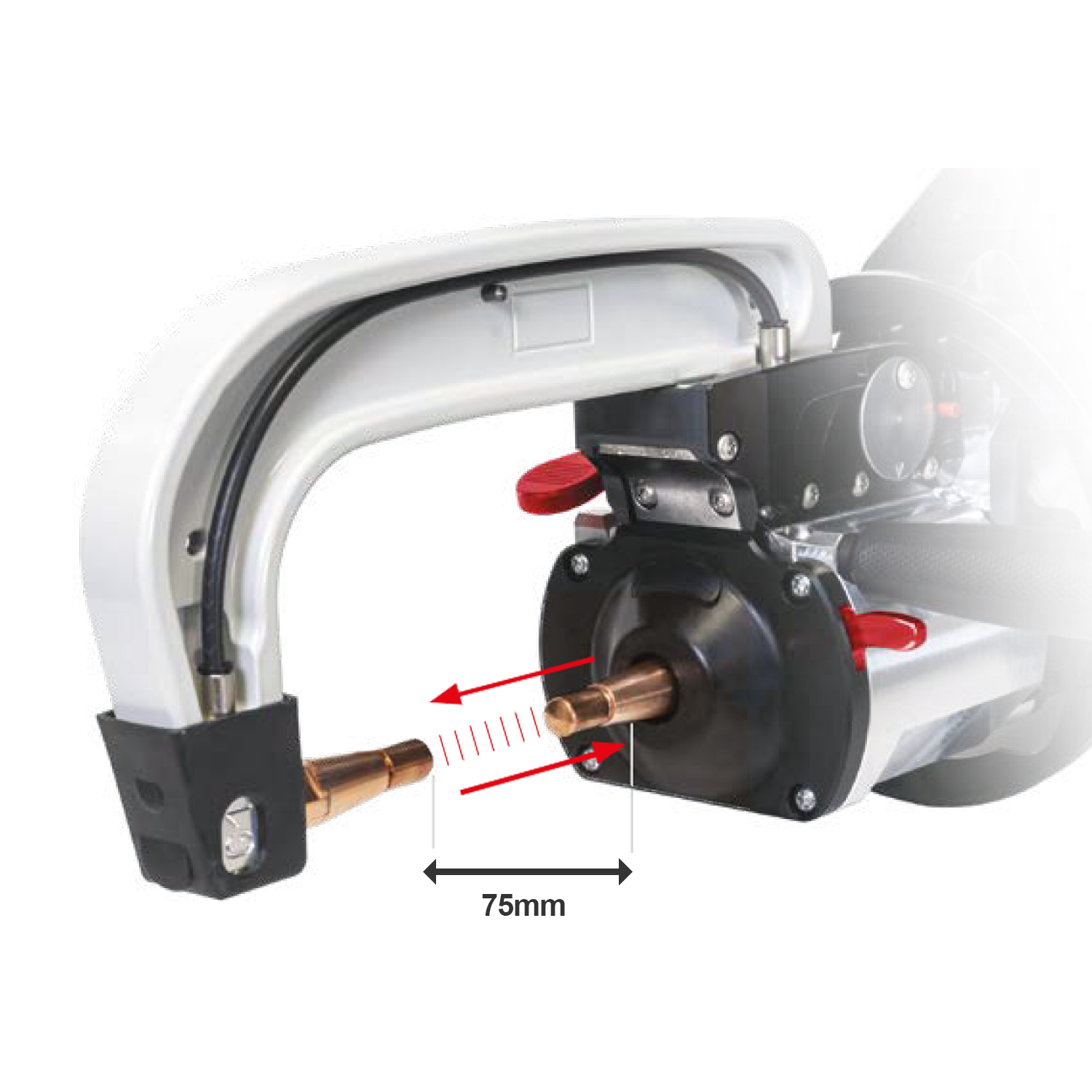

- GYS patent for manual over-opening, leaving 75 mm between the 2 caps.

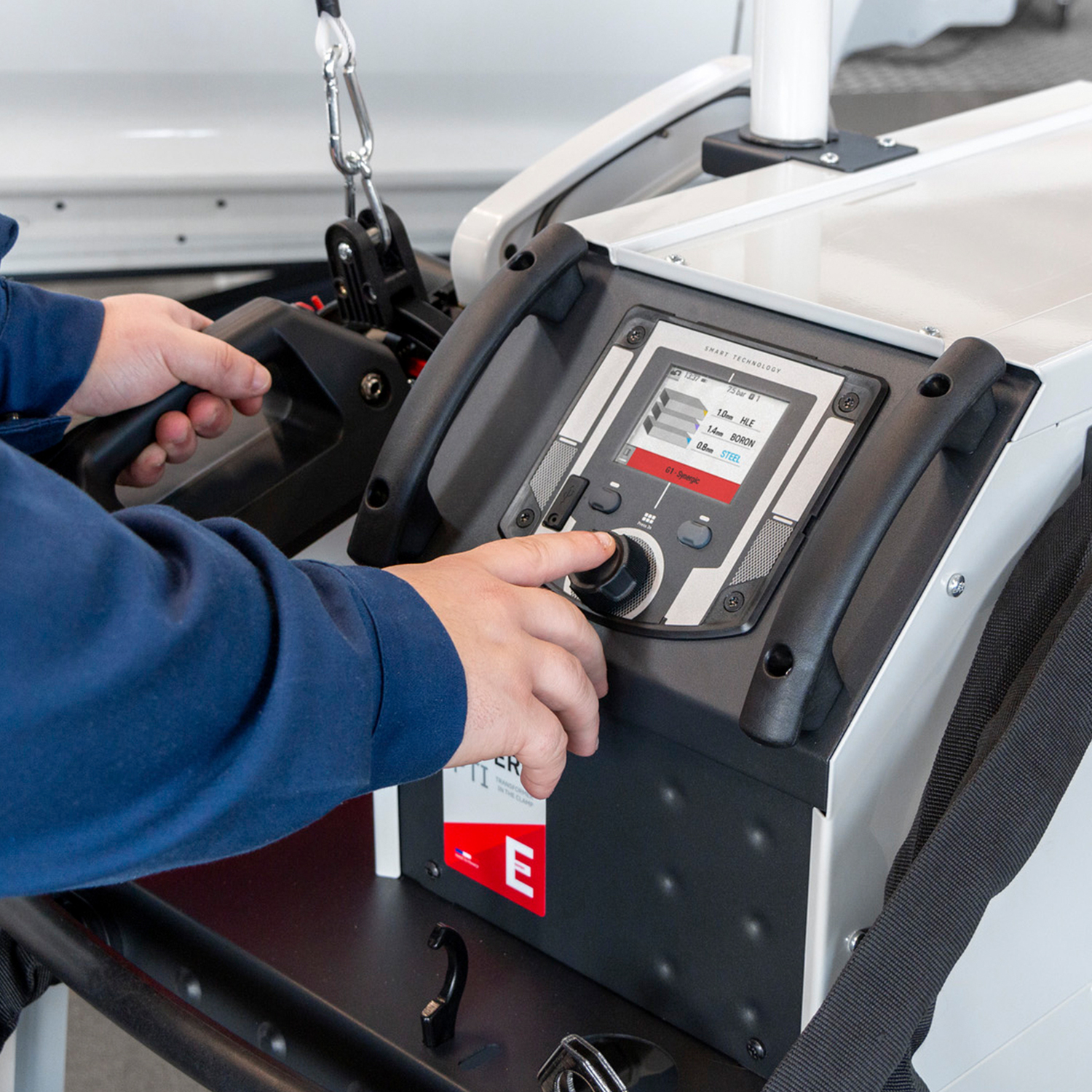

- Intuitive navigation via 3.5’’ colour display.
- Easy to use for all vehicle repair professionals.
- Spot counter to monitor the service life of the caps.
PREMIUM G-ARM
- Quick and easy change of welding arms, no tools required.
- Brass clamp holder and arm plate for optimum electrical contact.
- Automatic connection of coolant connectors.

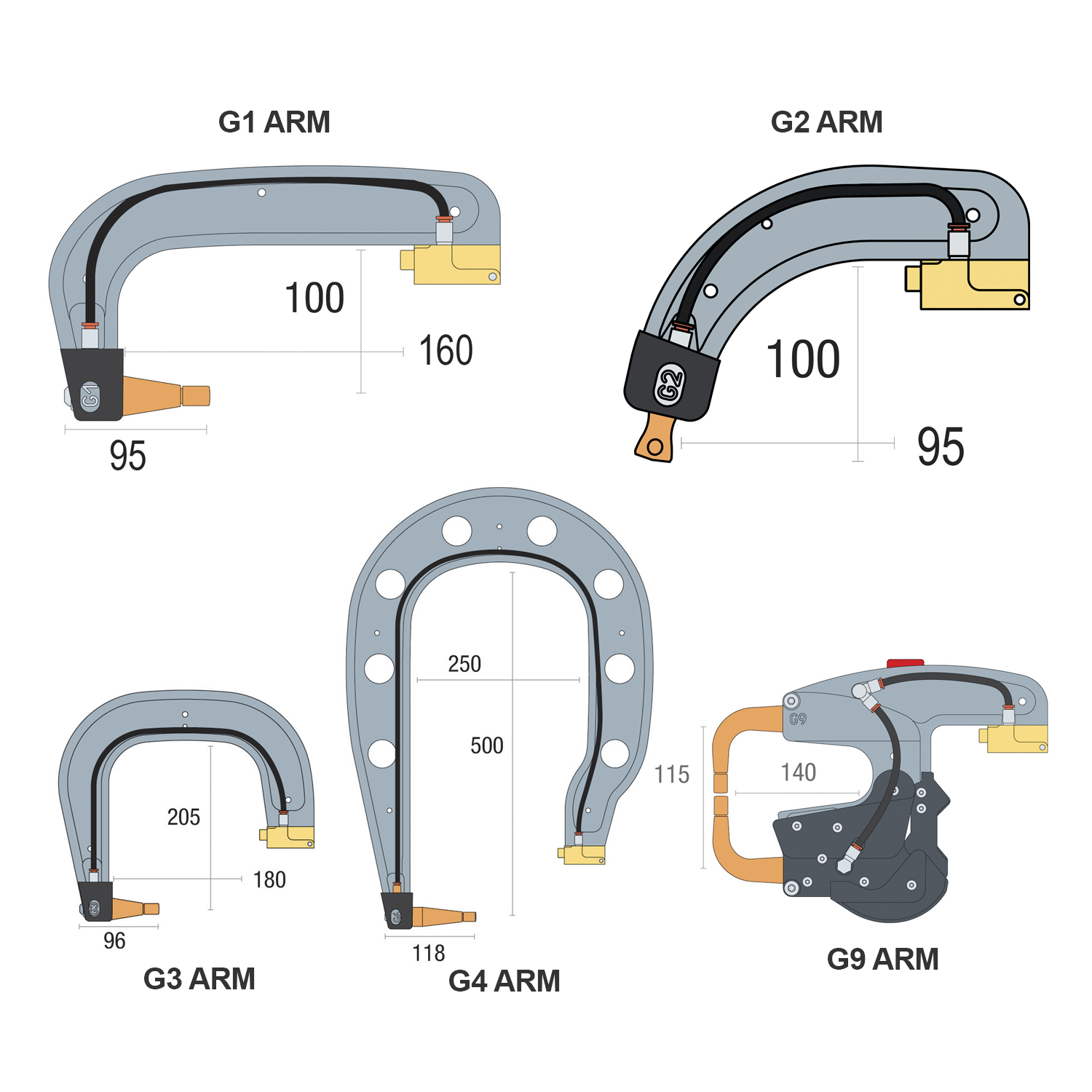

- Wide range of arm options, for greater access to all areas of the vehicle.
TRACEABILITY
- Spot weld traceability and data export via USB for reporting purposes.
- PC software supplied for data processing.
- Complete machine update via USB stick.
