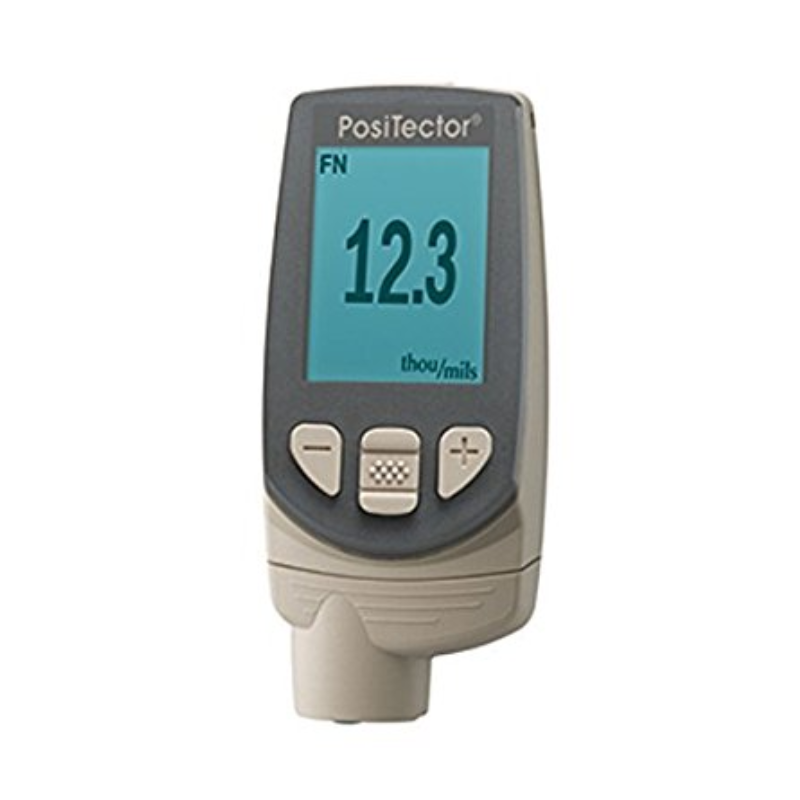

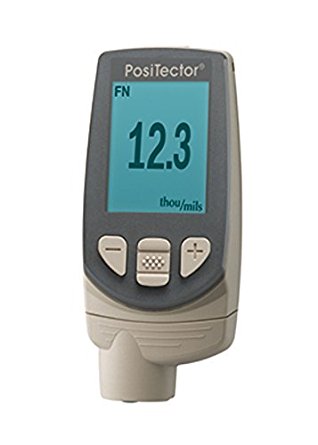

POSITECTOR 6000 PAINT THICKNESS GAUGE

PosiTector 6000 Series

The PosiTector 6000 series has models with external/separate probes and models with removable integral probes.

The 6000 series paint gauges can measure coatings up to 63.5mm thick on metal and non-metal bases.

With a wide variety of probes and accessories, you'll find a combintation to suit your needs.

The PosiTector 6000 series are available in a variety of kits complete with probes and accessories to suit typical applications.

Ultrasonic coating thickness gauge for measuring the thickness of most coatings up to 63.5mm thick on most substrates including ferrous and non-ferrous metals and non-metals.

Capable of measuring the thickness of galvanised and anodised coatings.

Integral Probe model PosiTector 6000I Coating Thickness / Paint gauge is supplied as a Standard or Advanced model.

Probes available for ferrous metals, non-ferrous metals and both ferrous and non-ferrous metals

PosiTector 6000 I model is supplied as a Standard or Advanced model

Ferrous Gauge F, Measures non-magnetic coatings on steel

Non-Ferrous Gauge NF, Non-conductive coatings on aluminium, brass etc

Ferrous and Non-Ferrous gauge FN, Measures both, non-magnetic coating on steel AND non-conductive coatings on aluminium, brass etc, AUTOMATICALLY recognises the substrate and takes a measurement

Complies with the requirements of Australian Standard AS3894.3-2002.

• Ferrous & Non-ferrous measures the above substrates:
  Ranges: 0 to 1500µm, 0 to 6mm, , 0 to 63.5mm
