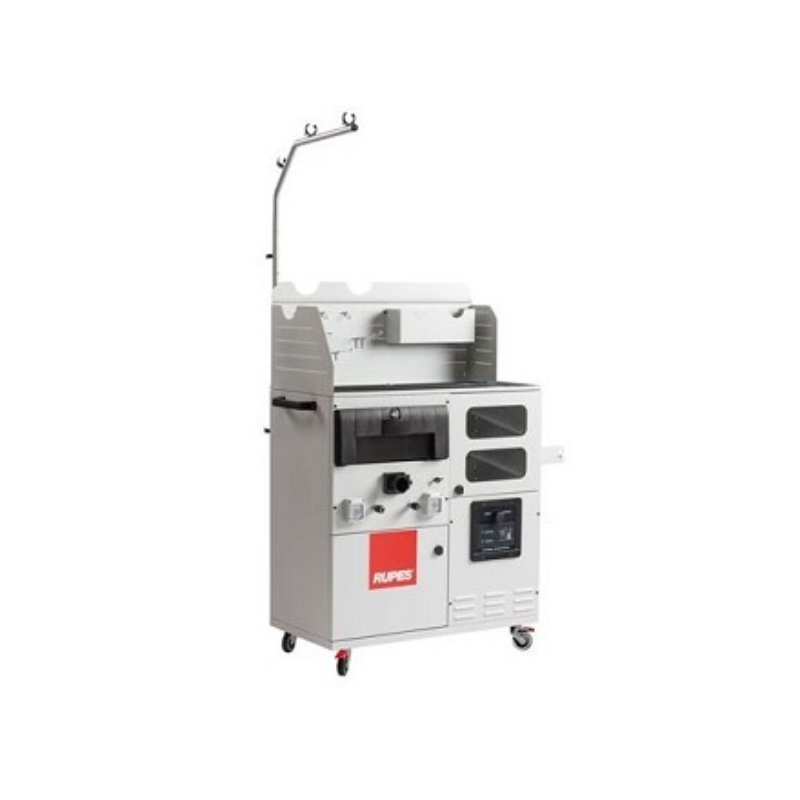

RUPES KR2A PORTABLE TURBINE KIT

RUPES KR2A PORTABLE TURBINE KIT
no-stock
Code: RKR2K
Brand: Rupes Tools
Product Details
RUPES KR2A PORTABLE TURBINE KIT


Estimate Freight

To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

Postcode

Quantity

Kit Components

This item contains the following components:

Features

MORE EFFICIENCY
COST REDUCTION
HIGH PERFORMANCE


Extremely flexible vacuum unit: it’s compact, simple to install and it can be easily moved around the working area!
KR2 is a real mobile workstation to provide the user everything he needs for daily work.

KR2 TECHNOLOGY

SIDE CHANNEL PUMP
A 1,5kW power side channel pump is installed inside the unit. Against simple mobile vacuum cleaner, the pump can work for more than 20.000 hours without maintenance.

PTFE FILTER
A 1m2 PTFE filter is installed inside the unit to block very thin dust
particles (99,9% efficiency with 0,3 um dusts). PTFE membrane
increases filter lifetime also in industrial application with multiple
kinds of dusts (dry, humid, metal, plastic, wood, etc.) A PTFE filter
cartridge is fixed with a single plastic knob. Removing and
replacing the filter is an easy and quick operation of extraordinary
maintenance.

ELECTRONIC FRONTAL PANEL WITH FILTER CHECK
SYSTEM

A 1,5 kW side channel pump is started in MANUAL mode or in AUTOMATIC mode when electric or pneumatic tools are used. An integrated sensor measures in real time the filter condition and efficiency. The pilot light on the frontal panel is activated to remember the user to perform a cleaning operation (“FILTER CHECK” red led).

EASY DUST CONTAINER EXTRACTION

By opening the frontal panel, the dust container can be easily taken from the unit to remove dust. A special lifting rail system makes the operation fast and easy: one only hook is used to fix the dust container.

FILTER REGULATOR
A compressed air filter regulator is included inside the unit. Compressed air can be set at correct pressure value to supply pneumatic sanders or other pneumatic tools.

KR2 EQUIPMENT
Electric and pneumatic tools can be connected to the unit with RUPES
flexible suction hoses. An integrated cabinet can be used for placing pads,
tools and useful accessories. The perforated board equipped with all
supports provides quickly all consumables to the user. A wide worktable
with ribbed rubber surface makes all daily work easy and fast.

The back side is not only used for support hoses and cables but it can be integrated with all KR2 accessories to increase the available space.

SUPPLIED
Antistatic hose assembly 5 m Ø 29 mm electric cod. 9GAT02001/AS
Swing arm cod. 054.1613/C
Hose/Cable holder cod. 038.1306
Storage bay cod. 023.1613/C
2-way union complete with 1 clapet value cod. 67.092/C
Perforated board with hooks set 10 pcs included cod. 021.1613/C
Reel holder cod. 036.1613/C
Dust bag (3 pcs.) cod. 016.1612
Air pressure regulator cod. 9GP01002

Technical Data

Size (hxwxd) cm 136x98x62
Pump side channel technology
Power hp 1500/2
Weight Kg 115
Vacuum level max mm/H₂O 2200
Noise dB(A) 65
Tank capacity l 23
Flow capacity m³/h 240
Filter surface 1
Tools nr 2
Working pressure bar 6
Manual filter cleaning
Filter performance LED
ID vacuum nozzle mm 50
Size (lxhxw) cm 136x98x62
