CAMELEON PREMIUM

CAMELEON PREMIUM VAS811023

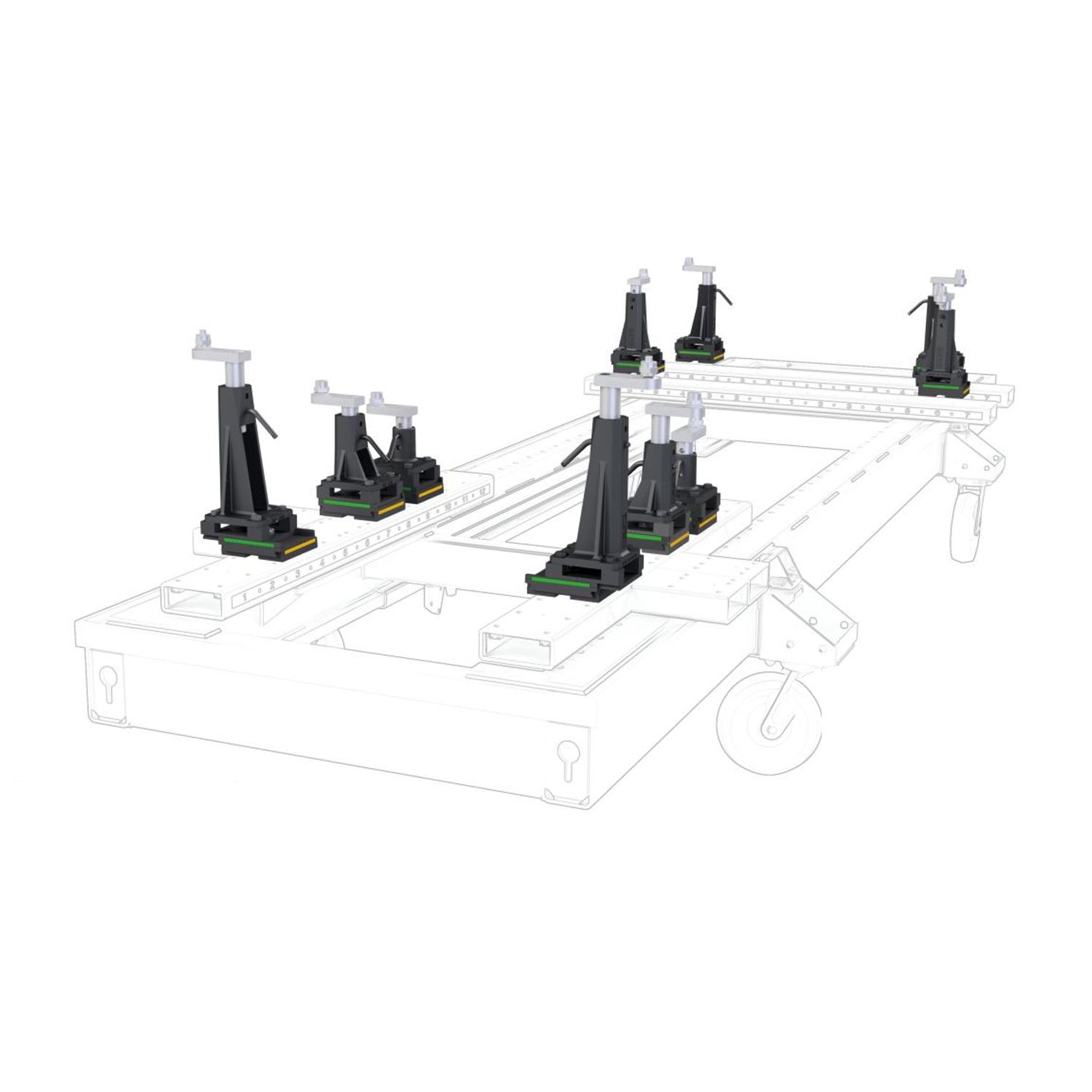

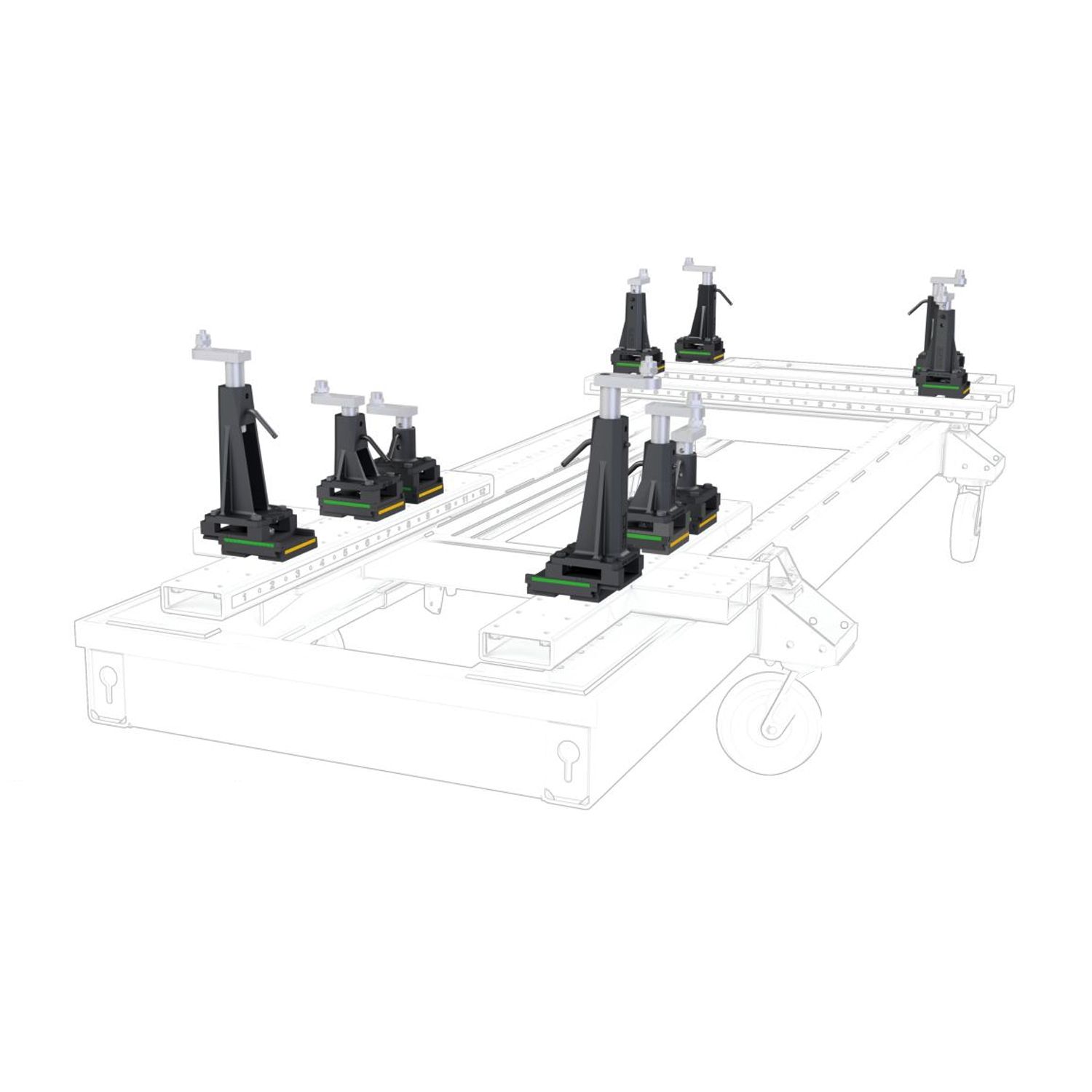

The universal guide set VAS 811 023 is a variable tool for damage diagnosis and structural repair. It offers a complete solution to repair all existing and future vehicle models without the need for additional equipment.

• No compromises when it comes to repair accuracy
• Complete solution in the areas of diagnosis, anchoring, reconstruction, and repair using a unique technology for all company vehicles
• It is based on existing straightening benches, modular traverses V.A.G 1392, a basic set for straightening angle plug inserts V.A.G 1610, and the straightening angle system VAS 6630. The existing Celette standard equipment can therefore continue to be used.
• The user-friendly software allows for quick and easy setup. The vehicle-specific assembly plans are available online and will be updated as necessary.

Recommended accessories

• Colette's bench
• Modular trusses V.A.G 1392
• Basic set for straightening angle plug inserts V.A.G 1610
• Straightening angle system VAS 6630

Technical data

• 846 individual parts
• 320kg
• 2 trolleys measuring 900 mm x 550 mm x 1050 mm (LxWxH)

Scope of delivery

• 16 sliding blocks
• 4 standard recordings for MQB platform
• Shims from 1 to 9 mm
• 2 trolleys
• Adaptations, screws, accessories, and operating instructions
