DRESTER MANUAL GUNWASHER 2600

DRESTER MANUAL GUNWASHER 2600
$2,944.00 Ex GST
no-stock
Code: DR2600
Brand: Drester Gun Washers Complete
Product Details
DRESTER MANUAL GUNWASHER 2600


Order by:
Estimate Freight

To estimate the freight on this item simply enter the destination postcode and the desired quantity and click the "estimate" button.

Postcode

Quantity

Manual gun cleaner for conventional paints

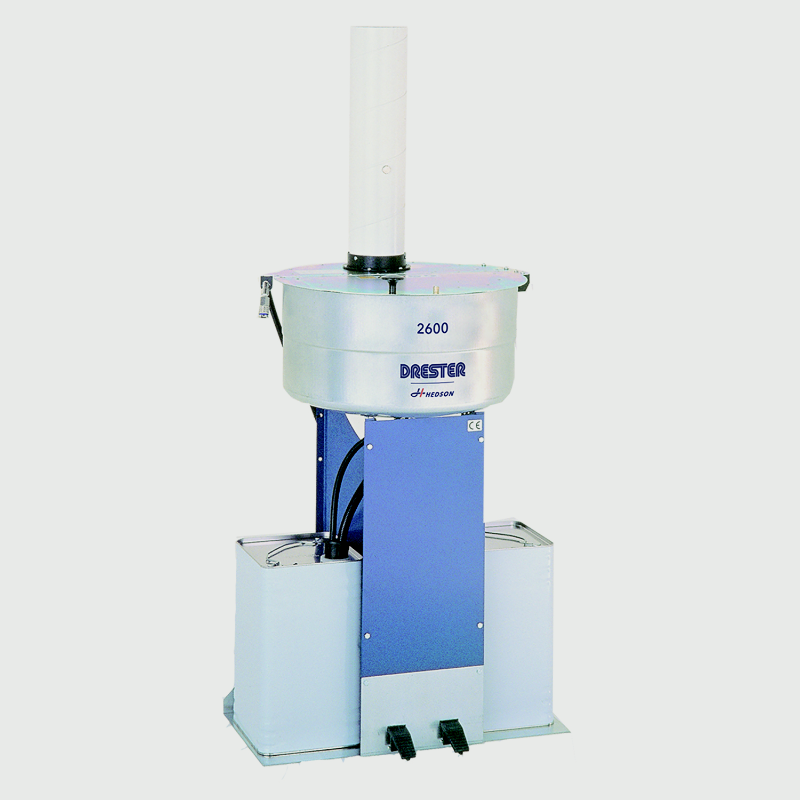

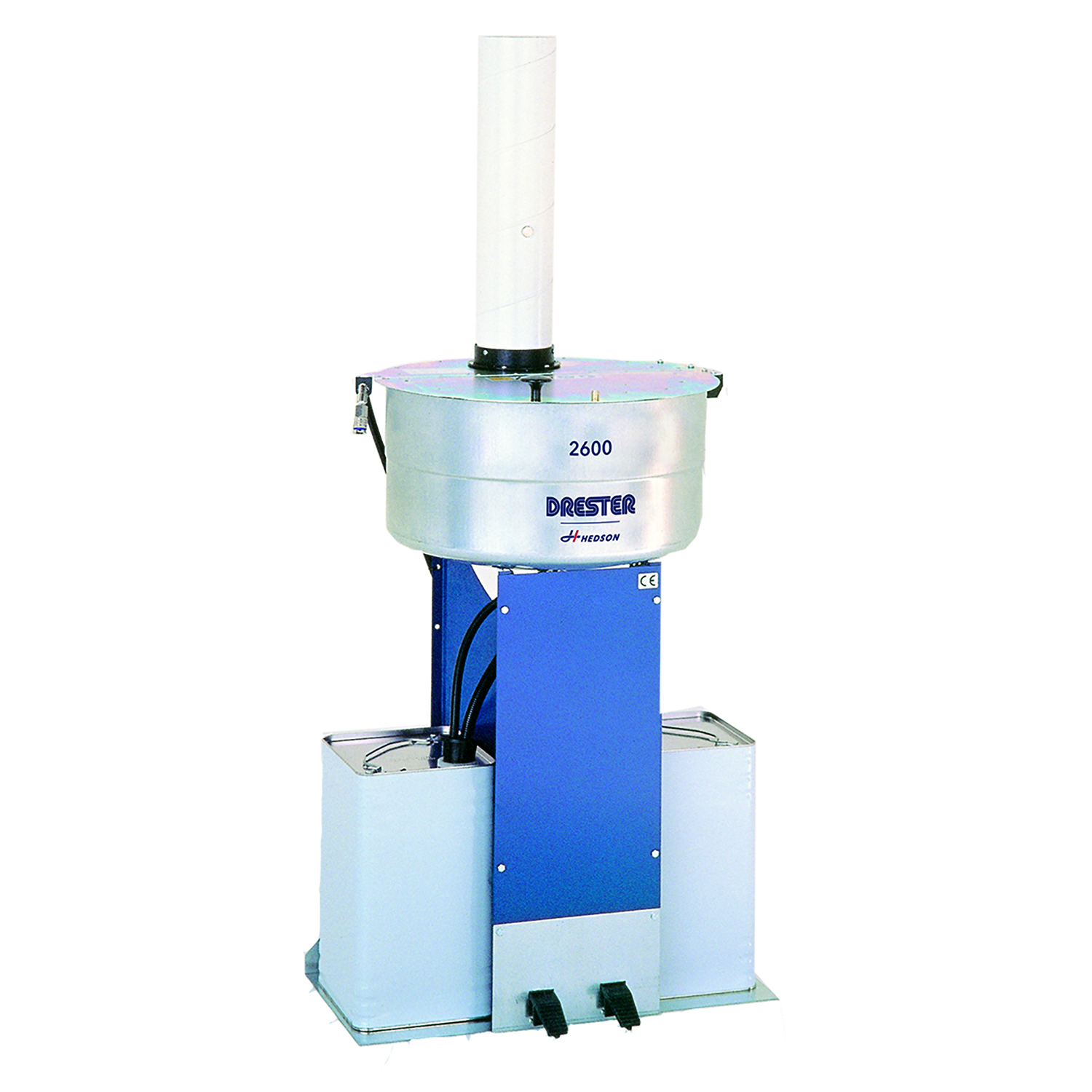

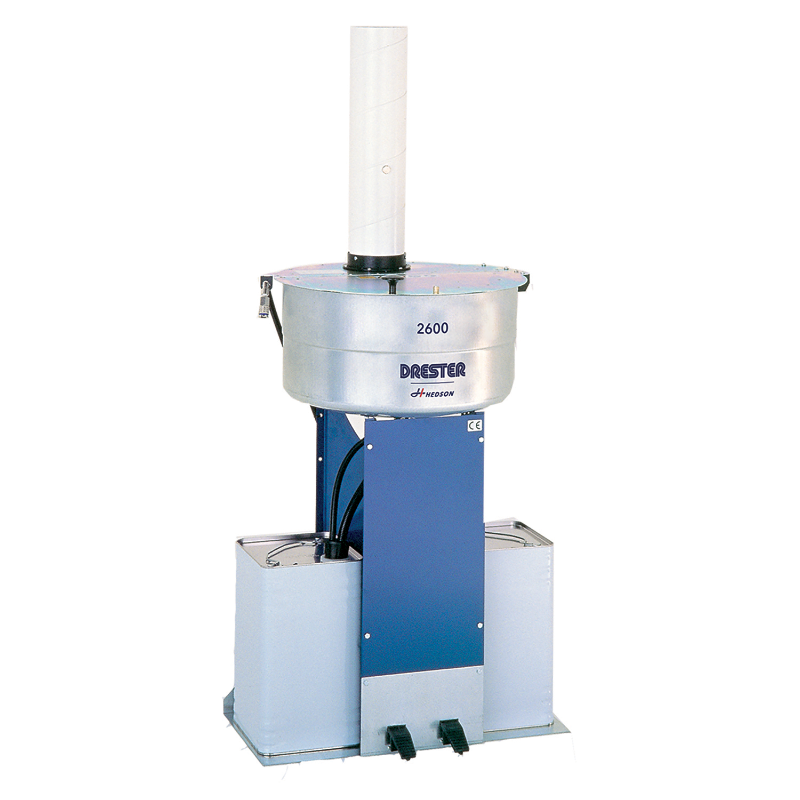

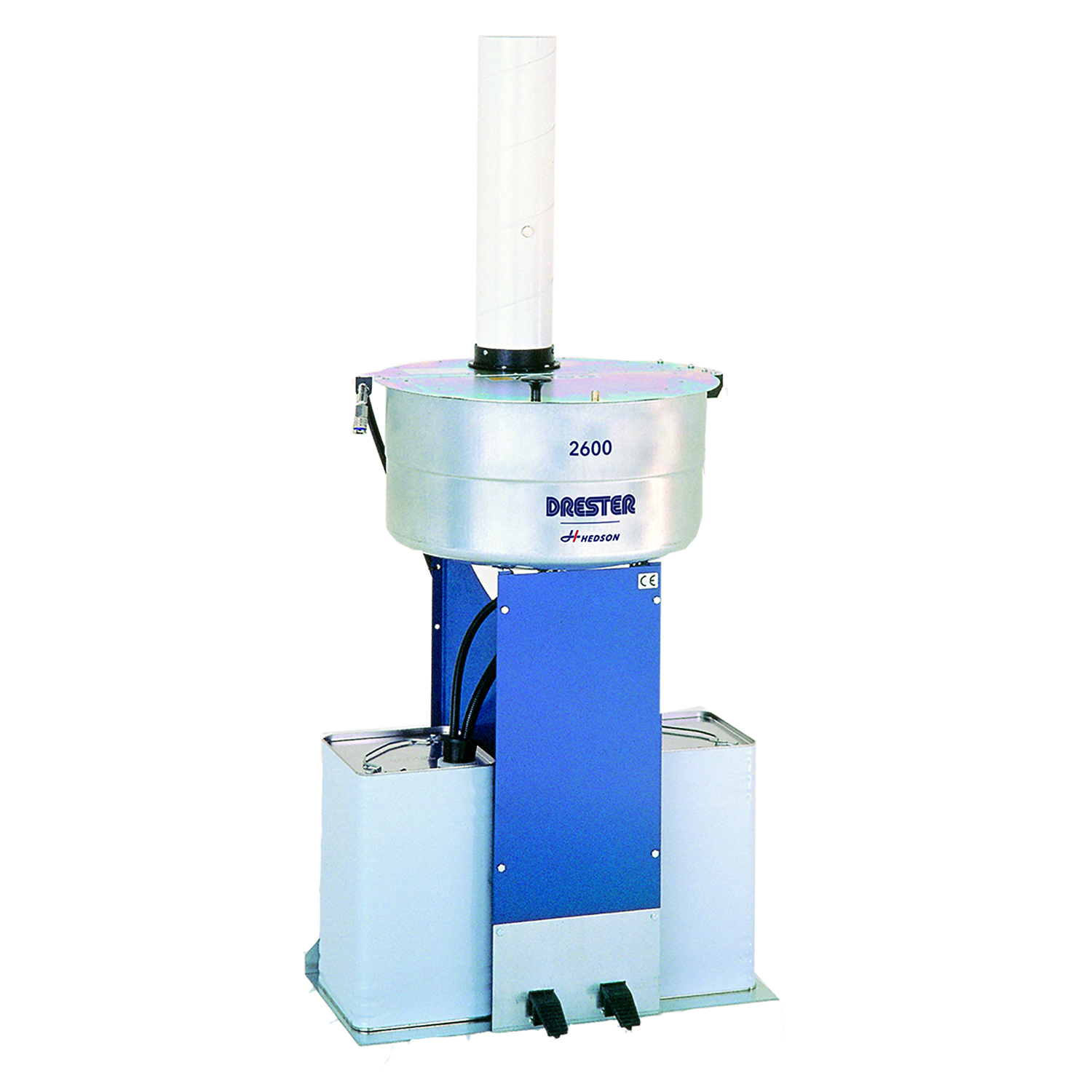

The Drester 2600 is the complete manual Gun Cleaner for efficient cleaning of spray guns and other tools, which have been used with conventional paints. It has a wash brush which is fed with recirculating solvent and a nozzle in the lid for rinse with clean solvent. You can spray out the gun through a funnel in the lid and dry it with an air gun which is fitted on the side of the machine. The Drester 2600 is equipped with the unique Drester Teflon Diaphragm pump, specifically designed for use in Gun Cleaners. Automatic extraction protects the operator from hazardous fumes and improves the working environment.

The Gun Cleaner can be combined with the Drester Recycler and Docking Unit RDX to the fully automatic solvent handling system Drester Dynamic Triple.

The Drester 2600 meets international demands and safety regulations.

DETAILS

Air connection
Through an integral airline on the side of the unit, the spray gun is supplied with compressed air for spray out of the gun.

Built-in extraction unit
The Drester 2600 is equipped with an air powered extraction unit that operates when the lid is open. It efficiently protects the operator from harmful fumes.

Clean rinse
An integral nozzle in the lid is fed with clean solvent for rinsing.

Brush
The machine has a cleaning brush which is fed with recirculating solvent for efficient manual cleaning.

Spray out funnel
Solvent goes back into the machine and fumes are removed by the extraction unit when spraying out the spray gun through the funnel in the lid.

Wash basin
The wash basin is made of galvanized steel without any welding seams. The working platform can easily be removed when cleaning the washing compartment.

The pump
The Drester 2600 is equipped with the powerful Drester Teflon Diaphragm pump for reliable operation. The pump is activated by pressing a foot pedal.

Accessories
When using extremely large drums, there is a Hose Extension Kit and a Cover Plate (if the machine is extended) as accessories.



  • Manual cleaning with flow-through brush
  • Efficient and solvent saving
  • Manual clean rinse with venturi nozzle
  • Air connection and collecting funnel for manual spray out
  • Automatic and highly efficient built-in extraction
  • Foot operated for hands-free operation
  • Round sink with no welding seams for easy and convenient maintenance
  • Equipped with air pressure regulator and water trap for durability
  • Air gun for drying the spray gun
  • Available with stainless washing compartment, artno. 2600-INOX.

Technical Data

Weight 30 kg (67 lb)
Working pressure 5-12 bar (100-180 psi)
Air consumption 250 l/min (9 cfm)
Extraction capacity with 15 m (49 ft) extr. duct: 140 m3 /h (82 c.f.m.)
with 5 m (16 ft) extr. duct:
180 m3 /h (106 c.f.m.)
Extractor diameter 125 mm (5“)
Air supply 5-12 bar (80-180 psi)
Width 700 mm (27,5”)
Height 990 mm (39”)
ATEX Ex II 2 G EEx c IIA T6
